Ohaus Defender 6000 i-DT61PW Hybrid Washdown Bench Scales |
 Authorized Dealer |
The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
|
Industrial Scales >> Ohaus Scales |
The Defender 6000 series hybrid washdown bench scale is ideal for a multitude of applications, including production and packaging. Handles demanding applications with the Defender 6000 indicator and Defender 5000 W series washdown base. The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.
Unique Features Include
- Defender 6000 Hybrid stands up to harsh cleaning in processing and packaging environments with IP68 immersion/IP69K protected indicator, 304 stainless steel construction and IP67 stainless steel load cell.
- Large digits on a bright backlit LCD or white LED display quickly and clearly show results for fast processing. Color bar in i-DT61PW can be used for quick checking of package weights for fast go/no-go alert. Configurable color bar matrix in i-DT61XWE can be used for detailed checking of package weights to ensure compliance.
- Durably constructed with a stainless steel platform, frame, IP67 loadcell and IP68/69K indicator, Defender 6000 hybrid meets NTEP and Measurement Canada approvals.
The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Defender 6000 handles the most demanding applications with a polycarbonate housing equipped with a 3-color check light bar, ultra-long battery life and EasyConnectTM. The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.
- Applications - Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Dynamic Weighing/Display Hold
- Display - 6-digit, 7-segment LCD display with white backlight, 45 mm high digits
- Operation - 6 D (LR20) batteries (included)
- Communication - Easy access IR communication kit (available as an accessory); GLP/GMP data output with real-time clock
- Construction - 304 stainless steel platform and frame, IP68/IP69K polycarbonate housing indicator and 316 stainless steel mounting bracket, IP67 load cell
- Design Features - 150% overload capacity protection, 3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare, adjustable rubber feet
Front Mount Bench Scales
Model |
i-D61PW2WQS5 000000000 |
i-D61PW5WQS5 000000000 |
i-D61PW12WQS5 000000000 |
i-D61PW12WQR5 000000000 |
i-D61PW25WQR5 000000000 |
i-D61PW50WQR5 000000000 |
i-D61PW25WQL5 000000000 |
i-D61PW50WQL5 000000000 |
i-D61PW125WQL5 000000000 |
Price |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Capacity x Readability |
5 lb x 0.0002 lb |
10 lb x 0.0005 lb |
25 lb x 0.001 lb |
25 lb x 0.001 lb |
50 lb x 0.002 lb |
100 lb x 0.005 lb |
50 lb x 0.002 lb |
100 lb x 0.005 lb |
250 lb x 0.01 lb |
2.5 kg x 0.1g |
5 kg x 0.2 g |
12.5 kg x 0.5 g |
12.5 kg x 0.5 g |
25 kg x 1g |
50 kg x 2 g |
25 kg x 1g |
50 kg x 2 g |
125 kg x 5 g |
80 oz x 0.005 oz |
160 oz x 0.01 oz |
400 oz x 0.02 oz g |
400 oz x 0.02 oz |
800 oz x 0.05 oz |
1600 oz x 0.1 oz |
800 oz x 0.05 oz |
1600 oz x 0.1 oz |
4000 oz x 0.2 oz |
Maximum Displayed Resolution |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
Linearity/Repeatability |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
Legal for Trade Capacity x Readability |
5 lb x 0.001 lb |
10 lb x 0.002 lb |
25 lb x 0.005 lb |
25 lb x 0.005 lb |
50 lb x 0.01 lb |
100 lb x 0.02 lb |
50 lb x 0.01 lb |
100 lb x 0.02 lb |
250 lb x 0.05 lb |
2.5 kg x 0.5 g |
5 kg x 1 g |
12.5 kg x 5 g |
12.5 kg x 5 g |
25 kg x 5 g |
50 kg x 10 g |
25 kg x 5 g |
50 kg x 10 g |
125 kg x 50 g |
80 oz x 0.02 oz |
160 oz x 0.05 oz |
400 oz x 0.1 oz |
400 oz x 0.1 oz |
800 oz x 0.2 oz |
1600 oz x 0.5 oz |
800 oz x 0.2 oz |
1600 oz x 0.5 oz |
4000 oz x 1 oz |
Legal For trade |
NTEP Indicator: CC# 20-043 Class lll Platforms: CC 18-077) Class lll Canada Indicator: NoA AM-6159 Platforms: NoA AM-6107 |
Maximum Certified Resolution |
1:5,000 |
Pan Size |
10 x 10 in |
10 x 10 in |
10 x 10 in |
12 x 12 in |
12 x 12 in |
12 x 12 in |
18 x 18 in |
18 x 18 in |
18 x 18 in |
Indicator |
i-DT61PW |
Indicator Construction |
Polycarbonate plastic housing, 316 stainless steel bracket |
IP Rating |
IP68 immersion/ IP69K washdown |
Display |
6-digit, 7-segment LCD display with white backlight, 45 mm / 1.8 in high digits |
Check Indicator |
3 Color (red, green, yellow) LED Bar |
Weighing Units |
Kilogram, Gram, Pound, Ounce, Pound: Ounce, Tonne (Metric Tonne) |
Application Modes |
Basic weighing, Percent weighing, Check weighing/percent, Dynamic weighing, Filling weighing, Counting |
Keyboard |
6 function mechanical keys |
Stabilization Time |
Within 2 second |
Power |
6 x D type cell battery |
Mount |
316 stainless steel front-mount bracket with handle |
Base Construction |
Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell |
Safe Overload Capacity |
150% of maximum capacity |
Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
Scale Dimensions (A x B x C x D x E x F) |
10 x 10 x 2.9 x 1.8 x 24.1 x 15.1 in 254 x 254 x 74 x 45 x 613 x 383 mm |
12 x 12 x 3.7 x 2.4 x 24.3 x 17.4 in 305 x 305 x 95 x 60 x 617 x 442 mm |
18 × 18 × 4.3 × 2.8 × 37.3 × 24.7 in 457 x 457 x 110 x 70 x 947 x 627 mm |
Shipping Dimensions (L x W x H) |
18.9 x 17.5 x 14.3 in 480 x 445 x 363 mm |
39.1 x 26.8 x 9.25 in 994 x 680 x 235 mm |
Approx. Net Weight |
22.1 lb / 10 kg |
26.5 lb / 12 kg |
44.1 lb / 20 kg |
Approx. Shipping Weight |
26.5 lb / 12 kg |
30.9 lb / 14 kg |
50.7 lb / 23 kg |

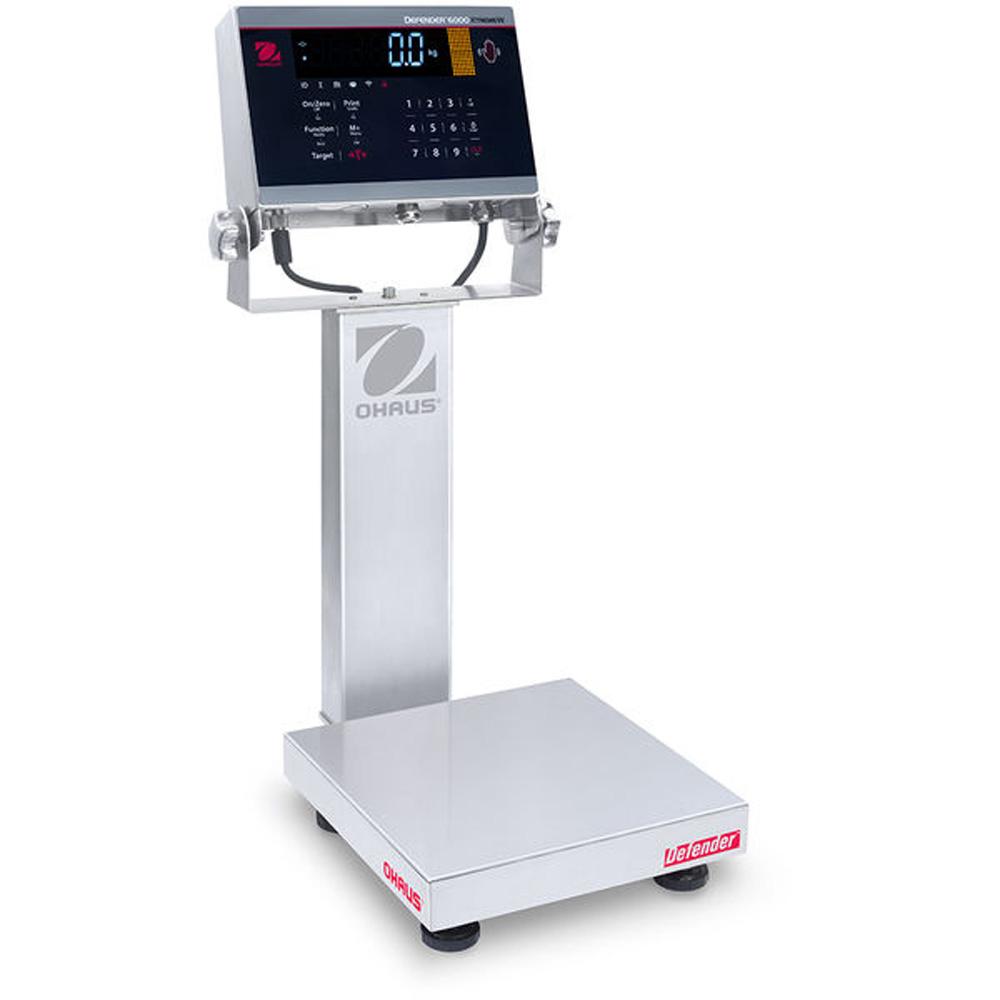

Column Mount Bench Scales
Model |
i-D61PW2WQS6 000000000 |
i-D61PW5WQS6 000000000 |
i-D61PW12WQS6 000000000 |
i-D61PW12WQR6 000000000 |
i-D61PW25WQR6 000000000 |
i-D61PW50WQR6 000000000 |
i-D61PW25WQL7 000000000 |
i-D61PW50WQL7 000000000 |
i-D61PW125WQL7 000000000 |
Price |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Call  |
Capacity x Readability |
5 lb x 0.0002 lb |
10 lb x 0.0005 lb |
25 lb x 0.001 lb |
25 lb x 0.001 lb |
50 lb x 0.002 lb |
100 lb x 0.005 lb |
50 lb x 0.002 lb |
100 lb x 0.005 lb |
250 lb x 0.01 lb |
2.5 kg x 0.1g |
5 kg x 0.2 g |
12.5 kg x 0.5 g |
12.5 kg x 0.5 g |
25 kg x 1g |
50 kg x 2 g |
25 kg x 1g |
50 kg x 2 g |
125 kg x 5 g |
80 oz x 0.005 oz |
160 oz x 0.01 oz |
400 oz x 0.02 oz g |
400 oz x 0.02 oz |
800 oz x 0.05 oz |
1600 oz x 0.1 oz |
800 oz x 0.05 oz |
1600 oz x 0.1 oz |
4000 oz x 0.2 oz |
Maximum Displayed Resolution |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
1:25,000 |
Linearity/Repeatability |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
±2d |
Legal for Trade Capacity x Readability |
5 lb x 0.001 lb |
10 lb x 0.002 lb |
25 lb x 0.005 lb |
25 lb x 0.005 lb |
50 lb x 0.01 lb |
100 lb x 0.02 lb |
50 lb x 0.01 lb |
100 lb x 0.02 lb |
250 lb x 0.05 lb |
2.5 kg x 0.5 g |
5 kg x 1 g |
12.5 kg x 5 g |
12.5 kg x 5 g |
25 kg x 5 g |
50 kg x 10 g |
25 kg x 5 g |
50 kg x 10 g |
125 kg x 50 g |
80 oz x 0.02 oz |
160 oz x 0.05 oz |
400 oz x 0.1 oz |
400 oz x 0.1 oz |
800 oz x 0.2 oz |
1600 oz x 0.5 oz |
800 oz x 0.2 oz |
1600 oz x 0.5 oz |
4000 oz x 1 oz |
Legal For trade |
NTEP Indicator: CC# 20-043 Class lll Platforms: CC 18-077) Class lll Canada Indicator: NoA AM-6159 Platforms: NoA AM-6107 |
Maximum Certified Resolution |
1:5,000 |
Pan Size |
10 x 10 in |
10 x 10 in |
10 x 10 in |
12 x 12 in |
12 x 12 in |
12 x 12 in |
18 x 18 in |
18 x 18 in |
18 x 18 in |
Indicator |
i-DT61PW |
Indicator Construction |
Polycarbonate plastic housing, 316 stainless steel bracket |
IP Rating |
IP68 immersion/ IP69K washdown |
Display |
6-digit, 7-segment LCD display with white backlight, 45 mm / 1.8 in high digits |
Check Indicator |
3 Color (red, green, yellow) LED Bar |
Weighing Units |
Kilogram, Gram, Pound, Ounce, Pound: Ounce, Tonne (Metric Tonne) |
Application Modes |
Basic weighing, Percent weighing, Check weighing/percent, Dynamic weighing, Filling weighing, Counting |
Keyboard |
6 function mechanical keys |
Stabilization Time |
Within 2 second |
Power |
6 x D type cell battery |
Column |
13.8 in / 350 mm stainless steel |
26.8 in / 680 mm stainless steel |
Base Construction |
Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell |
Safe Overload Capacity |
150% of maximum capacity |
Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
Scale Dimensions (A x B x C x D x E x F) |
10 x 10 x 2.9 x 1.8 x 24.1 x 15.1 in 254 x 254 x 74 x 45 x 613 x 383 mm |
12 x 12 x 3.7 x 2.4 x 24.3 x 17.4 in 305 x 305 x 95 x 60 x 617 x 442 mm |
18 × 18 × 4.3 × 2.8 × 37.3 × 24.7 in 457 x 457 x 110 x 70 x 947 x 627 mm |
Shipping Dimensions (L x W x H) |
18.9 x 17.5 x 14.3 in 480 x 445 x 363 mm |
39.1 x 26.8 x 9.25 in 994 x 680 x 235 mm |
Approx. Net Weight |
22.1 lb / 10 kg |
26.5 lb / 12 kg |
44.1 lb / 20 kg |
Approx. Shipping Weight |
26.5 lb / 12 kg |
30.9 lb / 14 kg |
50.7 lb / 23 kg |
Compliance
- Metrology: NTEP: CC 20-043 Class lll, IIIL, Measurement Canada: AM-6159 Class lll, lllHD
- Product Safety: CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
- Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
- Food Safety: ANSI/NSF 169
- Ingress Protection: IEC 60529 – IP68, ISO 20653 – IP69K
- Compliance Marks: CSA, CE
- Other: WEEE, RoHS
Accessories
LC Extension Cable, 9 meters......................................................... 30424409
M16 Gland with Ferrite............................................................... 30379716
Light Tower, 3 Colors, 243mm, IP65 (Requires 30097591)............................... 30424021

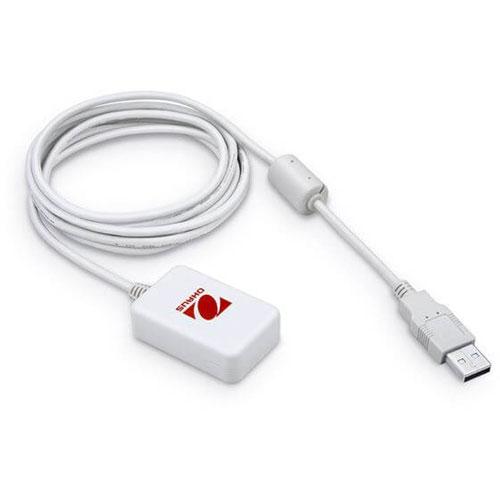

IR communication kit i-DT61PW........................................................ 30572910
