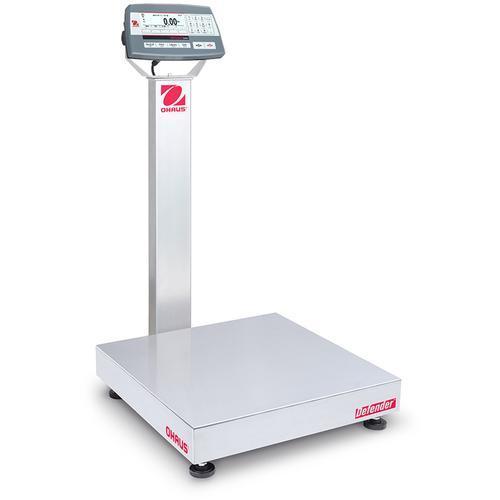

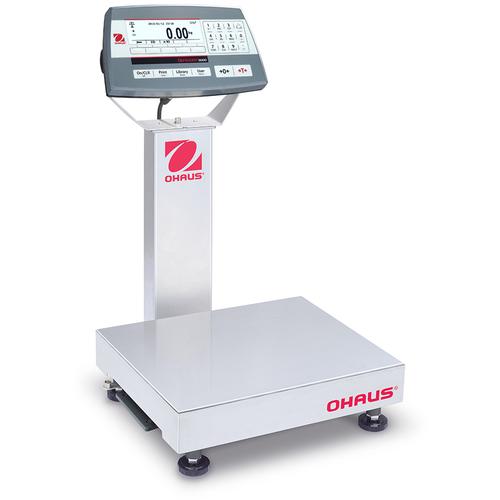

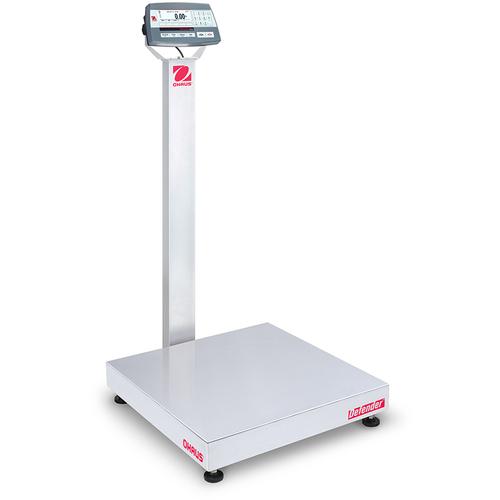

The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications
The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications
Standard Features:
Indicator Guides The User with On-Screen Prompts See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Durably Constructed To Withstand Harsh Industrial Environments Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
Multiple Application Modes and High Storage Capacity for Greater Flexibility Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
Multiple Connectivity Options for Convenient Data Transfer and Storage Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
Simplified Use
Results can be read easily on the Defender 5000’s large transflective dot matrix display, even in bright sunlight. The SmarText 3.0 interface will guide you through all of the Defender 5000’s unique and advanced features. With five soft keys, SmartText 3.0 makes an advanced scale very simple to use, and reduces training time for operators.
Durable Construction
The Defender 5000 can be used for both general and legal-for-trade applications. For standard industrial applications, the Defender 5000 bench scales offer durable performance at a practical price.
Simple Operation
Featuring most common applications including Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold, the Defender 5000 meets the weighing and measurement needs of practically every industrial application or manufacturing process. Many application modes eliminate the need for long and complicated manual calculations. GMP/GLP with
time/date allows for traceability of results. Equipped with the included Micro SD card, the Defender 5000 can support storage of up to 50,000 items and 1,000 user profiles. Weighing results can also be stored in Alibi or regular format, addressing all your data storage needs.
Multiple Connectivity Options
Weighing results can be easily exported through the standard RS232 port. Additional connectivity options include a second RS232, RS485 or USB device; Ethernet; and WiFi/Bluetooth interfaces. Using the Analog Option (either 4-20mA or 0-10V) or the two In/four Out Discrete I/O, the new Defender 5000 indicator can also be used for systems including PLCs.
Application Modes
Weighing: Determine the weight of items in the selected unit of measure.
Parts Counting: Count samples of uniform weight. Advanced auto-optimization software recalculates the average piece of weight as the overall weight increases.
Checkweighing/Counting: Compare the weight/count of a sample against target limits. Connect with Discrete I/O and Light Tower Kit for external check lights.
Percent Weighing: Measure the weight of a sample displayed as a percentage of a pre-established reference weight.
Dynamic Weighing and Display Hold: Weigh an unstable load. Scale takes an average of weights over a period of time. The Display Hold feature manually or automatically holds the last stable weight on the display
Other Standard Features and Equipment
User-configurable resolution up to 25,000d for general applications and up to 6,250e for legal-for-trade applications (depending on model and unit of measure), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare, non-slip adjustable rubber feet, a Wheel Kit option is also available for scales up to 300 kg.
Model with TD52P ABS Indicator
D52P12RQR1 30461630
D52P12RTR1 30461633
D52P25RQR1 30461631
D52P25RTR1 30461634
D52P50RQR1 30461632
D52P50RTR1 30461635
D52P50RQL2 30461636
D52P50RTX2 30461638
D52P50RQV3 30461641

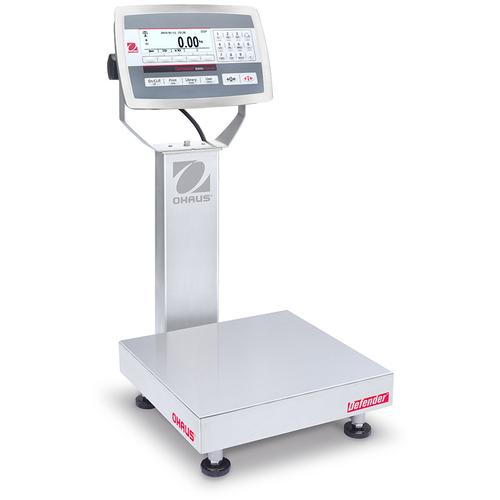

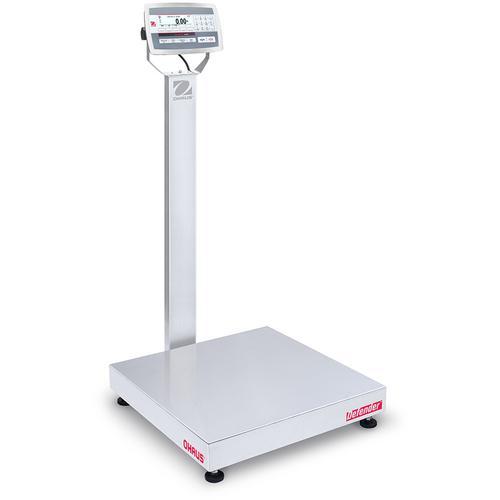

Model with TD52XW Stainless Steel Indicator
D52XW12RQR1 30461689
D52XW12RTR1 30461692
D52XW25RQR1 30461690
D52XW25RTR1 30461693
D52XW50RQR1 30461691
D52XW50RTR1 30461694
D52XW50RQL2 30461695
D52XW50RTX2 30461697
D52XW50RQV3 30461700
Standard Capacity x Readability
25 x 0.001 lb 12.5 kg x 0.5 g
25 x 0.001 lb 12.5 kg x 0.5 g
50 x 0.002 lb 25 kg x 1 g
50 x 0.002 lb 25 kg x 1 g
100 x 0.005 lb 50 kg x 2 g
100 x 0.005 lb 50 kg x 2 g
100 x 0.005 lb 50 kg x 2 g
100 x 0.005 lb 50 kg x 2 g
100 x 0.005 lb 50 kg x 2 g
Legal for Trade Capacity x Readability
25 x 0.005 lb 12.5 kg x 2 g
25 x 0.005 lb 12.5 kg x 2 g
50 x 0.01 lb 25 kg x 5 g
50 x 0.01 lb 25 kg x 5 g
100 x 0.02 lb 50 kg x 10 g
100 x 0.02 lb 50 kg x 10 g
100 x 0.02 lb 50 kg x 10 g
100 x 0.02 lb 50 kg x 10 g
100 x 0.02 lb 50 kg x 10 g
Pan Size
12 x 12 in
12 x 14 in
12 x 12 in
12 x 14 in
12 x 12 in
12 x 14 in
18 x 18 in
18 x 24 in
24 x 24 in
Min APW (g)
0.025
0.025
0.05
0.05
0.1
0.1
0.1
0.1
0.1
Legal For Trade
NTEP Class III 5,000 d Indicator: CC 18-065, Platforms: CC 18-077 Measurement Canada Indicator: AM-6093, Platforms: AM-6107
Internal Counting Resolution
1:500,000
Linearity/Repeatability
+2d
Weighing Units
lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes
Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display
Dot matrix LCD with white LED backlight, 256 x 80 pixels
