| The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.
|
| Industrial Scales >> Ohaus Scales |
|

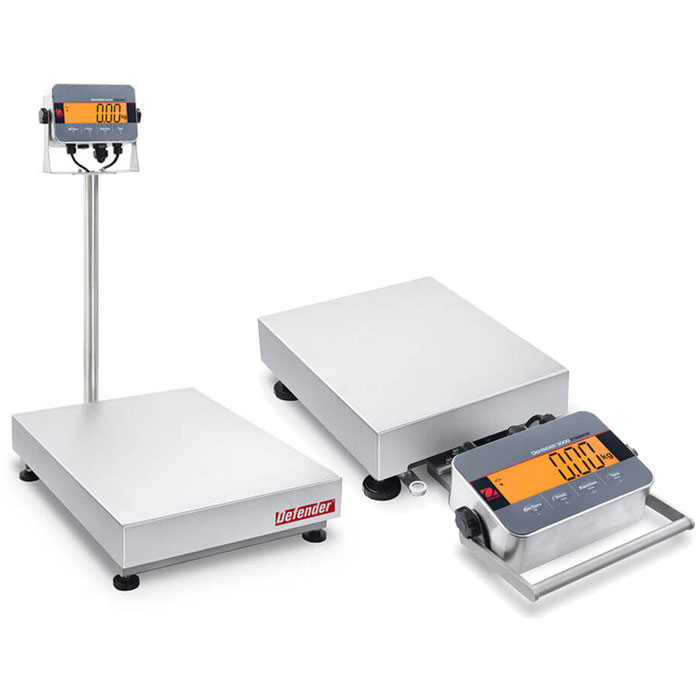

Stainless Steel Bench Scales for Basic Industrial Washdown Applications
The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.
Unique Features Include:
- Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range.
- This tough industrial scale features a 304-stainless steel platform, frame, column and IP67 load cell. Indicator features an IP66 protected 304-stainless steel housing and mounting bracket.
- Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity
Compliance
Metrology: NTEP (Indicator: CC 21-070, Platforms: CC 21-075); Measurement Canada (Indicator: NoA AM-6183, Platforms: NoA AM-6180) Class lll
Product Safety: UL61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
Ingress Protection: IEC 60529 – IP66 (for indicator), IEC 60529 – IP67 (for load cell)
Compliance Marks: CSA, CE
Other: WEEE, RoHS
|
|

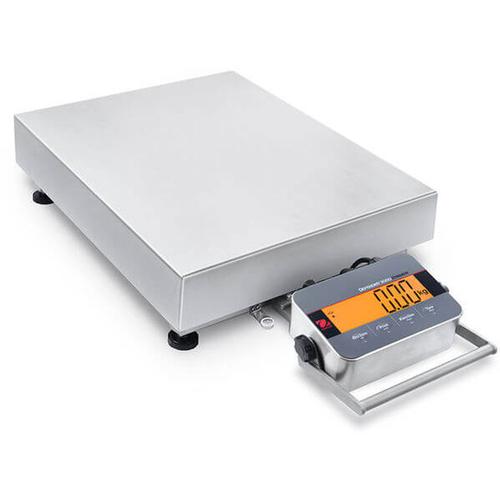

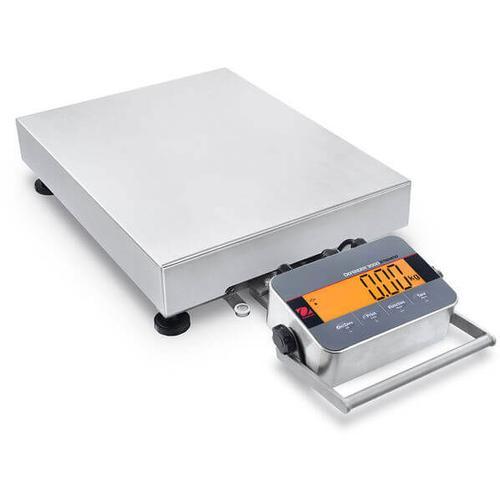

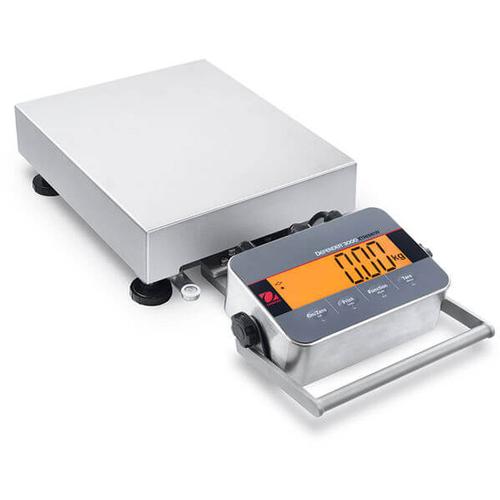

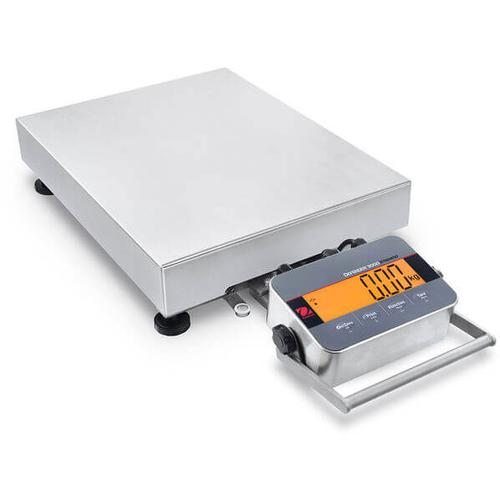

Front Mount Bench Scales
| Model |
i-D33XW15C1R5
30685209 |
i-D33XW30C1R5
30685210 |
i-D33XW75C1R5
30685211 |
i-D33XW75C1L5
30685216 |
i-D33XW150C1L5
30685217 |
i-D33XW150C1X5
30685222 |
i-D33XW300C1X5
30685223 |
| Price |
$1,060.88
|
$1,076.25
|
$1,076.25
|
$1,214.63
|
$1,214.63
|
$1,482.25
|
$1,482.25
|
| Capacity x Readability |
30 lb x 0.005 lb |
60 lb x 0.01 lb |
150 lb x 0.02 lb |
150 lb x 0.02 lb |
300 lb x 0.05 lb |
300 lb x 0.05 lb |
600 lb x 0.1 lb |
| 15 kg x 2 g |
30 kg x 5 g |
75 kg x 10 g |
75 kg x 10 g |
150 kg x 20 g |
150 kg x 20 g |
300 kg x 50 g |
| 480 oz x 0.1 oz |
960 x 0.2 oz |
2400 oz x 0.5 oz |
2400 oz x 0.5 oz |
4800 oz x 1 oz |
4800 oz x 1 oz |
- |
| Maximum Displayed Resolution |
1:7,500 |
1:6,000 |
1:7,500 |
1:7,500 |
1:7,500 |
1:7,500 |
1:6,000 |
| Linearity/Repeatability |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
Legal for Trade
Capacity x Readability |
30 lb x 0.01 lb |
60 lb x 0.02 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
300 lb x 0.1 lb |
300 lb x 0.1 lb |
600 lb x 0.2 lb |
| 15 kg x 5 g |
30 kg x 10 g |
75 kg x 50 g |
75 kg x 50 g |
150 kg x 50 g |
150 kg x 50 g |
300 kg x 100 g |
| 480 oz x 0.2 oz |
960 oz x 0.5 oz |
2400 oz x 1 oz |
2400 oz x 1 oz |
- |
- |
- |
| Legal For trade |
NTEP Indicator: CC# 21-070 Class lll Platforms: CC 21-075) Class lll
Canada Indicator: NoA AM-6183, Platforms: NoA AM-6180 |
|---|
| Maximum Certified Resolution |
1:3,000 |
|---|
| Pan Size |
14 x 12 in |
21.7 x 16.5 in |
25.6 x 19.7 in |
| Indicator |
i-DT33XW |
| Indicator Construction |
304 stainless steel indicator and mounting bracket |
| IP Rating |
IP67 |
| Display |
6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits |
| Check Indicator |
3 color (red, green, yellow) backlight |
| Weighing Units |
Kilogram, Gram, Pound, Ounce, Pound: Ounce |
| Application Modes |
Weighing, Parts Counting, Checkweighing and Totalization |
| Keyboard |
4 membrane function keys |
| Stabilization Time |
Within 1 second |
| Power |
100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard internal rechargeable battery |
| Battery Life |
Up to 100 hours continuous use with backlight off |
| Interface |
RS232 included - Optional second port USB Device or Ethernet |
| Calibration |
Zero, Span or 3 point-Linear |
| Auto-zero Tracking |
Off, 0.5 d, 1 d or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Base Construction |
Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell |
| Safe Overload Capacity |
150% of maximum capacity |
| Operating Temperature Range |
14oF to 104oF / -10oC to 40oC |

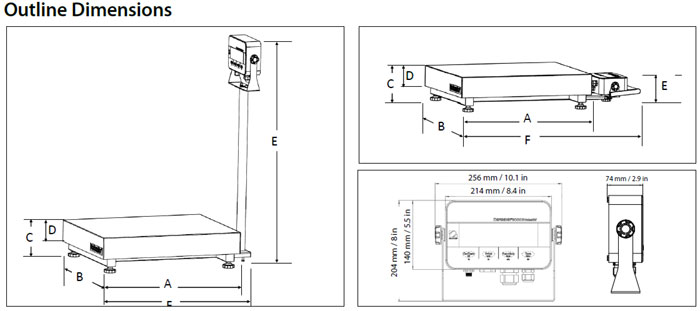

Scale Dimensions
(A x B x C x D x E x F) |
14 x 12 x 4.8 x 3 x 5.1 x 25.4 in
355 x 305 x 121.8 x 75 x 130 x 645.5 mm |
21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in
550 x 420 x 134 x 80 x 132.9 x 842 mm |
25.6 x 19.7 x 5.9 x 3.5 x 5.2 x 37 in
650 x 500 x 150 x 90 x 133 x 941 mm |
Shipping Dimensions
(L x W x H) |
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |
| Approx. Net Weight |
26.18 lb / 11.9 kg |
39.82 lb / 18.1 kg |
67.76 lb / 30.8 kg |
| Approx. Shipping Weight |
31.46 lb / 14.3 kg |
48.84 lb / 22.2 kg |
75.46 lb / 34.3 kg |

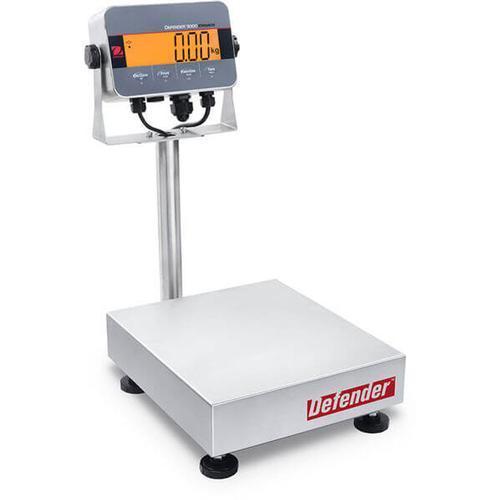

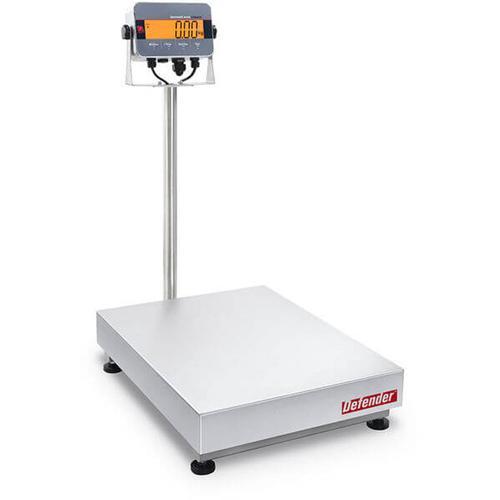

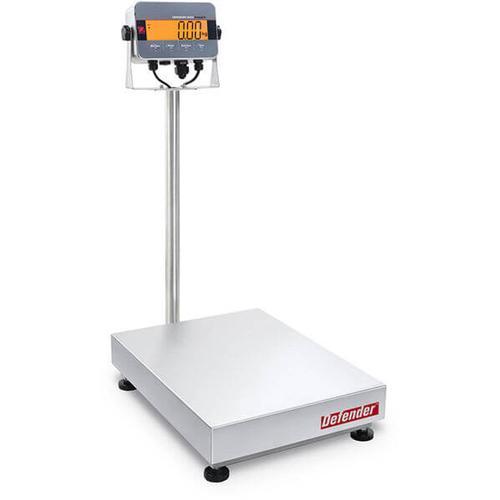

Column Mount Bench Scales
| Model |
i-D33XW15C1R6
30685180 |
i-D33XW30C1R6
30685181 |
i-D33XW75C1R6
30685182 |
i-D33XW75C1L7
30685191 |
i-D33XW150C1L7
30685192 |
i-D33XW150C1X7
30685197 |
i-D33XW300C1X7
30685198 |
| Price |
$1,103.93
|
$1,103.93
|
$1,103.93
|
$1,225.13
|
$1,225.13
|
$1,509.48
|
$1,509.48
|
| Capacity x Readability |
30 lb x 0.005 lb |
60 lb x 0.01 lb |
150 lb x 0.02 lb |
150 lb x 0.02 lb |
300 lb x 0.05 lb |
300 lb x 0.05 lb |
600 lb x 0.1 lb |
| 15 kg x 2 g |
30 kg x 5 g |
75 kg x 10 g |
75 kg x 10 g |
150 kg x 20 g |
150 kg x 20 g |
300 kg x 50 g |
| 480 oz x 0.1 oz |
960 x 0.2 oz |
2400 oz x 0.5 oz |
2400 oz x 0.5 oz |
4800 oz x 1 oz |
4800 oz x 1 oz |
- |
| Maximum Displayed Resolution |
1:7,500 |
1:6,000 |
1:7,500 |
1:7,500 |
1:7,500 |
1:7,500 |
1:6,000 |
| Linearity/Repeatability |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
Legal for Trade
Capacity x Readability |
30 lb x 0.01 lb |
60 lb x 0.02 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
300 lb x 0.1 lb |
300 lb x 0.1 lb |
600 lb x 0.2 lb |
| 15 kg x 5 g |
30 kg x 10 g |
75 kg x 50 g |
75 kg x 50 g |
150 kg x 50 g |
150 kg x 50 g |
300 kg x 100 g |
| 480 oz x 0.2 oz |
960 oz x 0.5 oz |
2400 oz x 1 oz |
2400 oz x 1 oz |
- |
- |
- |
| Legal For trade |
NTEP Indicator: CC# 21-070 Class lll Platforms: CC 21-075) Class lll
Canada Indicator: NoA AM-6183, Platforms: NoA AM-6180 |
|---|
| Maximum Certified Resolution |
1:3,000 |
|---|
| Pan Size |
14 x 12 in |
21.7 x 16.5 in |
25.6 x 19.7 in |
| Indicator |
i-DT33XW |
| Indicator Construction |
304 stainless steel indicator and mounting bracket |
| IP Rating |
IP67 |
| Column |
330 mm / 13 in stainless steel |
680 mm / 26.8 in stainless steel |
| Display |
6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits |
| Check Indicator |
3 color (red, green, yellow) backlight |
| Weighing Units |
Kilogram, Gram, Pound, Ounce, Pound: Ounce |
| Application Modes |
Weighing, Parts Counting, Checkweighing and Totalization |
| Keyboard |
4 membrane function keys |
| Stabilization Time |
Within 1 second |
| Power |
100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard internal rechargeable battery |
| Battery Life |
Up to 100 hours continuous use with backlight off |
| Interface |
RS232 included - Optional second port USB Device or Ethernet |
| Calibration |
Zero, Span or 3 point-Linear |
| Auto-zero Tracking |
Off, 0.5 d, 1 d or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Base Construction |
Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell |
| Safe Overload Capacity |
150% of maximum capacity |
| Operating Temperature Range |
14oF to 104oF / -10oC to 40oC |
Scale Dimensions
(A x B x C x D x E x F) |
14 x 12 x 4.8 x 3 x 21.3 x 19 in
355 x 305 x 121.8 x 75 x 541.6 x 481.9 mm |
21.7 x 16.5 x 5.3 x 3.1 x 35.3 x 27 in
550 x 420 x 134 x 80 x 896.1 x 685.6 mm |
25.6 x 19.7 x 5.9 x 3.5 x 35.2 x 30.9 in
650 x 500 x 150 x 90 x 894.6 x 784.6 mm |
Shipping Dimensions
(L x W x H) |
25.3 x 19.6 x 8.3 in
642 x 497 x 212 mm |
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |
| Approx. Net Weight |
27.11 lb / 12.3 kg |
42.32 lb / 19.2 kg |
70.00 lb / 31.8 kg |
| Approx. Shipping Weight |
33.70 lb / 15.3 kg |
51.36 lb / 23.3 kg |
77.82 lb / 35.3 kg |
Accessories
Ethernet Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
USB Device Kit i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30699120
Dust Cover (5) i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30699121

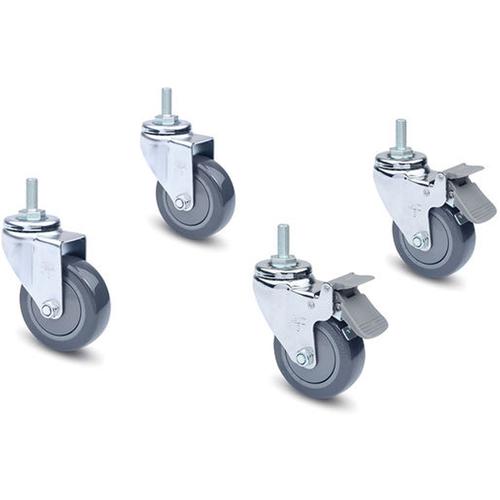

Wheel Kit, Defender Series (Max. load: 300 kg / 600 lb) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30372146
Wheel Kit Stainless Steel Defender Series (Max load: 600 kg / 1,200 lb) . . . . . . . . . . . . . . 30616409
Carrying Handle Kit Stainless Steel i-DT33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30696600
SF40A Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30064202
Cable RS232 i-DT33XW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80500552
Dims
|
