Ohaus Defender 3000 Series Drum Scale
Authorized Dealer

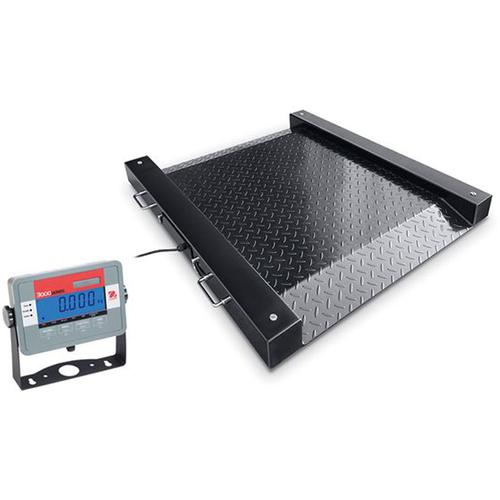

Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. Defender 3000 features a mild steel treaded platform, built-in front/back access ramps, four load cells, and the popular T32M indicator for clearly displaying weighing results. Includes folding stainless steel cleats to store the 20 ft. indicator cord. For quick transport, the base can be rotated on its side using the stainless steel handles and moved around the shop floor using the two integrated wheels.
Industrial Scales >> Ohaus Scales
Ohaus Defender 5000 Legal for Trade Low Profile Bench Scales
call us

Specifications Chart

The Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. It features a mild steel platform with treads, built-in front/back access ramps, 4 load cells (with alloy steel feet & top leveling), and the popular T32M indicator for clear display of weighing results. For rapid portability, the base can be turned onto its side using the stainless steel handles and it can moved around the shop floor using the two built-in wheels
  • Applications Weighing, Counting Parts, Checkweighing, Accumulation, Dynamic/Display Hold
  • Display Backlit liquid crystal display (LCD)
  • Operation AC adapter with Auto Shut-off feature (included)
  • Communication Easy access communication port including RS232 interface (included)
  • Construction Painted steel platform with treads, front ABS/rear painted carbon steel, indicator & mounting bracket, aluminum junction box, four alloy steel load cells with top height adjustment, front/back access ramps
  • Design Features Low-profile design
Standard Features Include: Choose from Five Models of Varying Sizes & Capacities for Industrial or Shipping Use Our Drum Scales come in five models with two platform sizes of 30 in × 30 in and 36 in × 36 in, and capacities from 500 to 2,500 lb, allowing greater flexibility to best suit your weighing needs Built Durably to Withstand Demanding Industrial Use The OHAUS Drum Scales feature a platform constructed of carbon steel with an epoxy paint finish which enables the scale to stand up to heavy industrial use. Items can be weighed on treaded platform or across side rails for larger items. Low-Profile Design & Convenient Portability with Polyurethane Wheels Low-profile design with front/back access ramps which allow pallet jacks, dollies, carts and drums to be easily rolled onto the platform. Integrated high-density polyurethane wheels enable convenient portability. Stainless steel handles and cord storage cleats fold flat to side of scale for storage.
Ohaus Defender 3000 Series Drum Scale

FREE UPS Ground Shipping
(within the 48 continental US States)

See Lowest Price In Cart

Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P
Ohaus 80500524 RS232 Cable, PC 25-pin to Defender 5000 & 7000 with T7IP, T51P, add $158.40
Ohaus 80500525 RS-232 Cable PC 9 Pin
Ohaus 80500525 RS-232 Cable PC 9 Pin , add $158.40
Ohaus SF40A Portable Dot-Matrix Impact Printer
Ohaus SF40A Portable Dot-Matrix Impact Printer, add $811.80
Ohaus STP-103 Palm-Sized Thermal Printer
Ohaus STP-103 Palm-Sized Thermal Printer, add $621.00

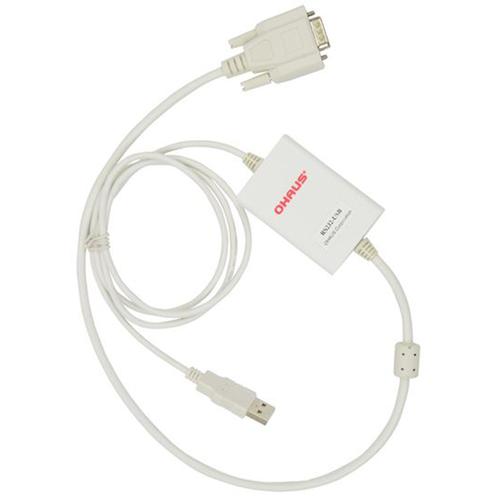

Ohaus 30304101 - Interface Kit, RS232-USB
Ohaus 30304101 - Interface Kit, RS232-USB, add $118.80

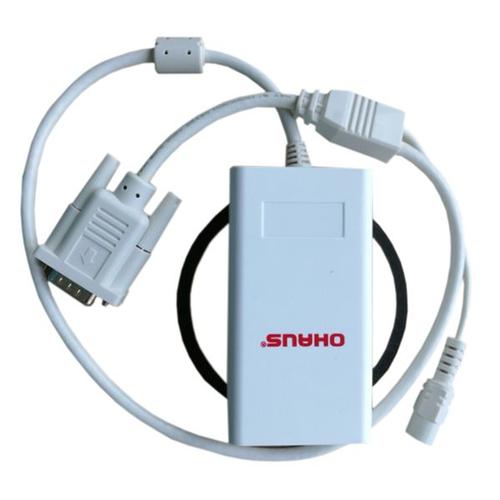

Ohaus 30304102 - Interface Kit, RS232-Ethernet
Ohaus 30304102 - Interface Kit, RS232-Ethernet, add $118.80
Ohaus 30047153 Column Kit, Painted, Floor Stand
Ohaus 30047153 Column Kit, Painted, Floor Stand , add $88.20
Ohaus 30047154 Column Kit, Stainless Steel, Floor Stand
Ohaus 30047154 Column Kit, Stainless Steel, Floor Stand, add $208.80


More info
Model DFD32M500ES
30469909
DFD32M1000ES
30469910
DFD32M2500ES
30469911
DFD32M1000ER
30469912
DFD32M2500ER
30469913
Price Ohaus DFD32M500ES Defender 3000 Series 30 x 30 in Drum Scale 500 lb x 0.1 lb
$1,085.00
ClickPrice
Ohaus DFD32M1000ES Defender 3000 Series 30 x 30 in Drum Scale 1000 lb x 0.2 lb
$1,085.00
ClickPrice
Ohaus DFD32M2500ES Defender 3000 Series 30 x 30 in Drum Scale 2500 lb x 0.5 lb
$1,085.00
ClickPrice
Ohaus DFD32M1000ER Defender 3000 Series 36 x 36 in Drum Scale 1000 lb x 0.2 lb
$1,259.30
ClickPrice
Ohaus DFD32M2500ER Defender 3000 Series 36 x 36 in Drum Scale 2500 lb x 0.5 lb
$1,259.30
ClickPrice
Capacity x Readability 500 lb x 0.1 lb
250 kg x 0.05 kg
1000 lb x 0.2 lb
500 kg x 0.1 kg
2500 lb x 0.5 lb
1250 kg x 0.2 kg
1000 lb x 0.2 lb
500 kg x 0.1 kg
2500 lb x 0.5 lb
1250 kg x 0.2 kg
Platform Dimensions 30 x 30 in.
762 x 762 mm
36 x 36 in.
914.4 x 914.4 mm
Deck Material Painted Carbon Steel, Treaded Surface, Fixed Top Plate
Feet 4 x Swivel Design, Screw-In, Carbon Steel with Rubber Bottom Cap, Top Adjustable
Maximum Central Load 100% of Maximum Capacity
Load Cell 4 x IP67 Nickel Plated Alloy Steel Load Cells, Shear Beam
Junction Box IP65, Die-cast Aluminum, with 6 m (19.8 ft) Indicator Cable
Operating Temperature 50 °F to 104 °F / 10 °C to 40 °C
Indicator T32M, ABS Plastic Face Plate, Painted Metal Rear Housing
Weighing Units lb, kg
Modes Parts Counting, Dynamic, Checkweighing, Weight Accumulation
Display 6-digit, 7-segment LCD, 25 mm Digit Height, High-Contrast White LED Backlight
Keypad 4 Function Mechanical Switches and Raised Tactile Keys
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3d
Zeroing Range 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Interface RS232 Bi-Directional
Power 100–240 VAC, 50/60 Hz autoswitching wall adapter
Indicator Dimensions (W x D x H) 7.8 x 1.8 x 5.2 in.
198 x 46 x 132 mm
Scale Shipping Dimensions (W × D × H) 41.1 x 40.2 x 7.9 in.
1,044 x 1,022 x 200 mm
46.9 x 46.3 x 7.9 in.
1,190 x 1,175 x 200 mm
Scale Net Weight 101 lb
46 kg
126 lb
57 kg
Scale Shipping Weight 110 lb
50 kg
135 lb
61 kg

Other Standard Features and Equipment Four nickel-plated shear beam load cells for durable precision secured to alloy steel feet with top height adjustment (includes internal junction box), backlit LCD with fast weight display—includes adjustable filtering levels to meet the requirements of industrial environments, AC adapter (included), Auto-Shut Off feature, Parts Counting and Checkweighing modes for packaging and checking inventories, Accumulation mode allows running tally of totals, Dynamic feature for wheelchair and medical weighing, painted and stainless steel floor stands (available as accessories)

Compliance
  • Product Safety: T32MC indicator: CAN/CSA C22.2 61010-1; UL 61010-1; AC adapter: CAN/CSA C22 60950-1; UL 60950-1
  • Electromagnetic Compatibility: Canada ICES-003 Class B; FCC Part 15 Class B
  • Compliance marks: T32MC indicator: cCSAus; AC adapter: cULus
Accessories
RS232 Interface Cable to PC 25-pin. . . . . . . . . . 80500524
RS232 Interface Cable to PC 9-pin. . . . . . . . . . .80500525
Printer, Impact, SF40A, AM. . . . . . . . . . . . . .30064203
Printer, Thermal, STP-103, US. . . . . . . . . . . . 80251992
Interface Kit, RS232-USB. . . . . . . . . . . . . . . 30304101
Interface Kit, RS232-Ethernet. . . . . . .. . . . . . 30304102
Column Kit, Painted, Floor Scale. . . . . . . . . . .30047153
Column Kit, Stainless Steel, Floor Scale. . . . . .30047154

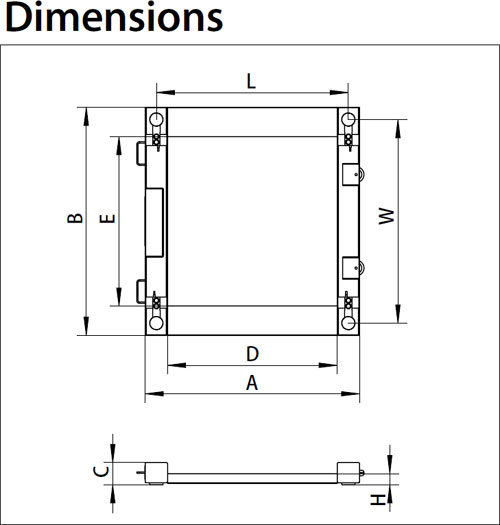

 Ohaus Defender 3000 Series Drum Scale
30" × 30"
762 × 762 mm
36" × 36"
914.4 × 914.4mm
A 37.9 in. / 962 mm 43.9 in. / 1,114.4 mm
B 40.4 in. / 1,024 mm 46.1 in. / 1,170 mm
C 4 in. / 100 mm 4 in. / 100 mm
D 30 in. / 762 mm 36 in. / 914.4 mm
E 30 in. / 762 mm 36 in. / 914.4 mm
H 2 in. / 50 mm 2 in. / 50 mm
W 34 in. / 862 mm 41.8 in. / 1,060.4 mm
L 36 in. / 914.4mm 40 in. / 1,014.4 mm
