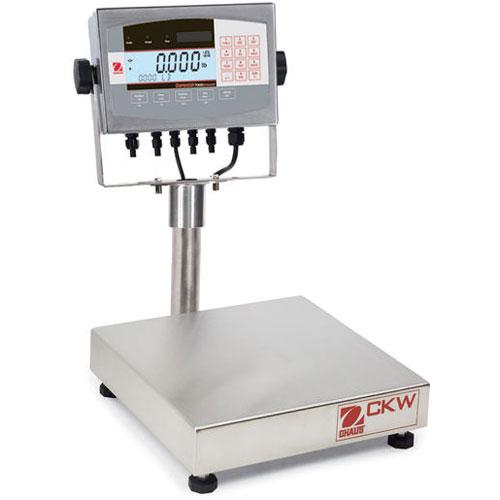

The OHAUS CKW Checkweighing Scale—Speed, Durability and Cleanliness
The OHAUS CKW Series is a feature-rich line of checkweighing scales, combining a stainless steel T71XW indicator with a square, all-stainless steel CKW washdown base and a stainless steel column. Ideal for production, packaging and general industrial checkweighing weighing applications, the CKW offers a multifunctional indicator with multiple weighing units, alphanumeric keypad and software modes to meet the requirements of industrial applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the CKW can meet the needs of demanding industrial operations
Standard Features Include:
- All stainless-steel construction with IP66/NEMA4X protection for indicator, with loadcells protected to IP67
- 6,000-7,500d default resolution—NTEP/Measurement Canada 1:3,000 certified/approved resolution
- Configurable checkweighing alerts with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press.
- Easy to operate with positive feedback 5-function key and alphanumeric membrane keypad
- Additional weighing modes for Counting, Percent Weighing, Dynamic/Animal Weighing and Display Hold.
- 128 item Library data storage function, Accumulation of results with statistics.
- Operator lock-outs for configuration menu as well as keys.
- Internal power supply with universal line cord—optional NiMH internal rechargeable power pack available
- Includes RS-232 interface with GMP/GLP data output including date and time

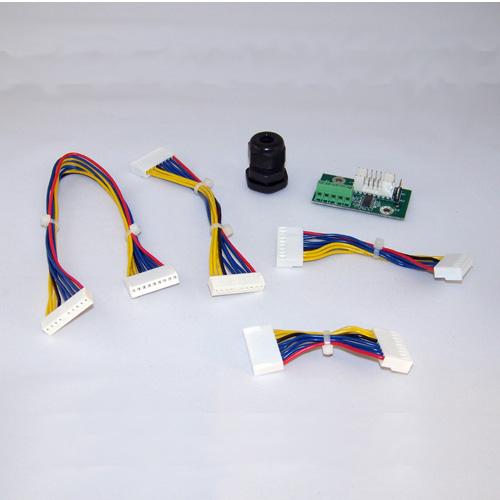

- Options include DC relay control kit, AC relay control kit, RS-485/422 and 2nd RS-232 interfaces, Alibi memory module.
T71XW Indicator
Integral faceplate supports for easy servicing, hardware configuration lockout switch, Zero point calibration, calibration test, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over and underweight, overload and underload conditions
Compliance
- Metrology: Made from Measurement Canada and NTEP certified components. Measurement Canada Notice of Approval AM-5607, AM-5762; NTEP Certificate of Conformance 06-030, 09-102
- Product Safety: CAN/CSA C22.2 60950-1; UL 60950-1; IEC/EN 60950-1
- Electromagnetic Compatibility: Canada ICES-003 Class B; FCC Part 15 Class B; IEC/EN 61326-1 Class B, Basic environments
- Food Equipment: ANSI/NSF 169 (base only)
- Compliance Marks: CE; cULus; NSF (base only)
Advanced Checkweighing Bench Scale for Food Processing Use
- The CKW features multiple Checkweighing options including Positive, Negative, Zero or Net and statistical capabilities to provide accurate results for advanced Checkweighing needs
- The CKW’s base is NSF Certified, supports HACCP-certified systems, and is safe for use in food processing applications
- The base’s open framework can be thoroughly cleaned to eliminate the risk of contamination caused by residue build up.
- Application - Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Accumulation, Display Hold
- Display - Large backlit liquid crystal display (LCD) with secondary information line. 3 Checkweighing LEDS for indicating under, OK or over target weight ranges.
- Operation - AC power (included) or rechargeable battery (accessory sold separately)
- Communication - Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). External tare input included. GLP/GMP data output with real-time clock.

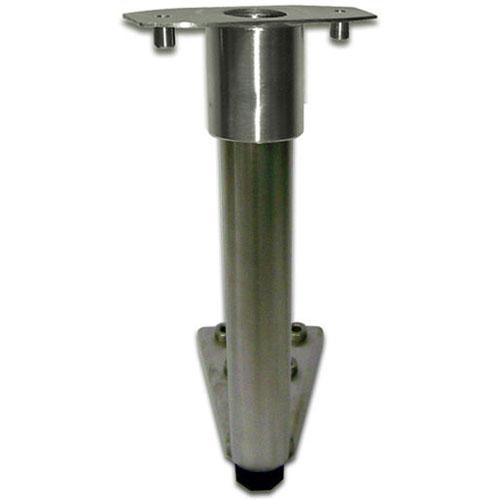

- Construction - NEMA 4X/IP66 stainless steel indicator, 304 grade stainless steel platform with no visible threads, rounded corners, drain holes, extended skirt and open frame, IP67 stainless steel load cell, stainless steel column and wall bracket, level indicator.
- Design Features - 128 SKU memories, alphanumeric keypad, 150% overload capacity protection, five operating languages, NTEP Certified and Measurement Canada Approved, Alibi memory kit (accessory sold separately).
|
|
