Minebea Midrics Systems SHIMPO Equipment
Authorized Dealer
The bench and floor scale Midrics® has proven itself in a variety of industries such as the food, pharmaceutical, chemical, electronic and metal industries. Boasting a long product lifetime, it is robust and easy to clean. Depending on the application, the weight indicator can be set up independently from the location of the platform and can even be mounted on a stand.
Minebea Midrics Bases
Have Questions?
Call USoremail Us
Our Staff will be glad to help

Specifications Charts

6 lb - 300 lb

2500 lb - 10000 lb



Minebea Midrics Bases

FREE UPS Ground Shipping
(within the 48 continental US States)

Minebea MIS1UR-V1 Midrics 1 Indicator for Midrics bench and Floor Scales
Minebea MIS1UR-V1 Midrics 1 Indicator for Midrics bench and Floor Scales, add $755.00
Minebea MIS1U-L9 Midrics 1 Indicator for Midrics bench and Floor Scales with Internal Battery Pack
Minebea MIS1U-L9 Midrics 1 Indicator for Midrics bench and Floor Scales with Internal Battery Pack, add $1,267.00
Minebea MIS2UR-V2 Midrics 2 Indicator for Midrics bench and Floor Scales
Minebea MIS2UR-V2 Midrics 2 Indicator for Midrics bench and Floor Scales, add $851.00
Minebea MIS2U-L9 Midrics 2 Indicator for Midrics bench and Floor Scales with Internal Battery Pack
Minebea MIS2U-L9 Midrics 2 Indicator for Midrics bench and Floor Scales with Internal Battery Pack, add $1,405.00






The bench and floor scale Midrics® has proven itself in a variety of industries such as the food, pharmaceutical, chemical, electronic and metal industries. Boasting a long product lifetime, it is robust and easy to clean. Depending on the application, the weight indicator can be set up independently from the location of the platform and can even be mounted on a stand.

    The right solution for all of these applications

  • Weighing
  • Counting
  • Filling and dosing
  • Formulation
  • Fill quantity control
  • Classification
General technical data for weight indicators Midrics®
Parameters Description
Load cell connection Supply voltage: 8.4 V
Sensor technology available: 4 or 6 wire technology
Bridge impedance 83 ohm up to 2,000 ohm
Measuring signal hub 0 mV to 29.4 mV
Measurement signal / calibration value min. 0.672 ìV/e
Sensitivity Max. 4 M divisions (internal)
Net weight (Approx.) 2.3 kg

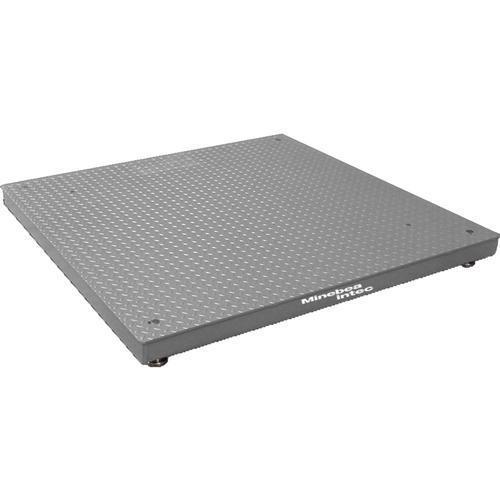

MAPP4U Floor Scales

The industrial floor scales MAPP4U are the most durable floor scales on the market. The rugged construction and heavy duty load cells enable them to withstand every day use in the most demanding applications.

Floor scales designed to survive extreme abuse

The MAPP4U features a specially formulated and durable two-part epoxy paint finish. The epoxy coating provides excellent hardness and protects against chipping and wear. The epoxy coating is also more resistant than typical coatings to salt water, cleaning agents, mild acids, solvents and shop chemicals.

The MAPP4U standard 5K and 10K capacity platforms utilize 1/4” (minimum) tread plate steel decking. The use of heavy deck plate ensures long term structural integrity of the platform. The thick decking will better resist deformation when the platform is placed in a high-use application.

MAPP4U features high quality plated alloy steel shear beam load cells. The cells have low sensitivity to axial loading, excellent accuracy and long term measurement stability. The cells are environmentally protected (IP67) and can be safely used outdoors.

The weighbridge utilizes a formed c-channel structural support member. The special c-channel features a taller leg than the structural channel for greater bending resistance. The c-channel height completely closes the load cell body for protection.

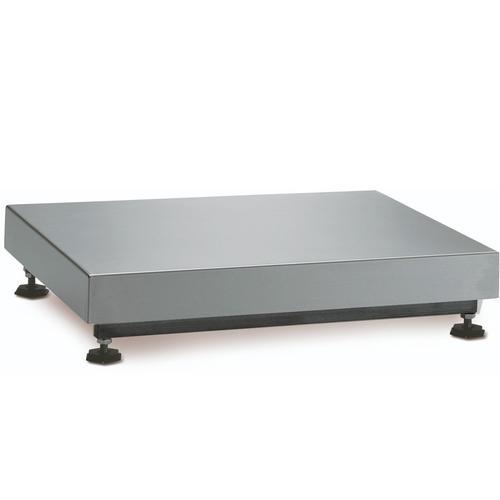

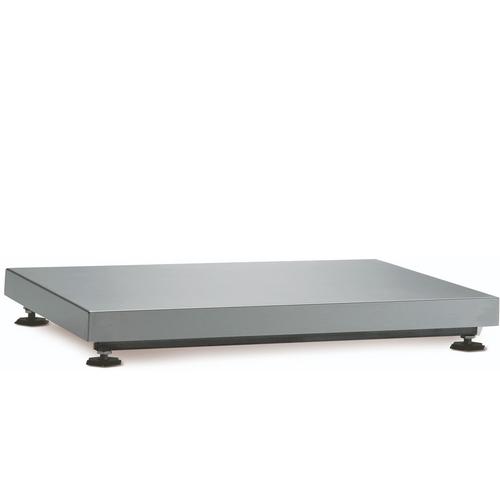

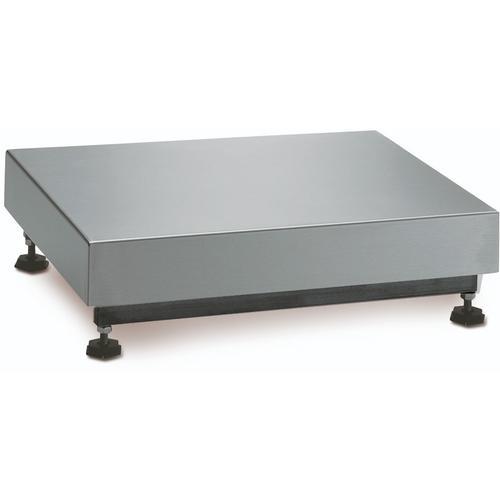

Price Base only

with Galvanized Steel Frame
MAPP1U-3DC-LU MAPP1U-6DC-LU MAPP1U-15DC-LU MAPP1U-30ED-LU MAPP1U-60ED-LU MAPP1U-30FE-LU MAPP1U-60FE-LU MAPP1U-150FE-LU
Minebea Midrics MAPP1U-3DC-LU Stainless and Galvanized Steel  12.5 x 9.5  Base Only -  6 x (0.0005) lb
$607.00
Minebea Midrics MAPP1U-6DC-LU Stainless and Galvanized Steel  12.5 x 9.5  Base Only -  5 x (0.001) lb
$607.00
Minebea Midrics MAPP1U-15DC-LU Stainless and Galvanized Steel  12.5 x 9.5  Base Only -  30 x (0.002) lb
$607.00
Minebea Midrics MAPP1U-30ED-LU Stainless and Galvanized Steel 15.75 x 11.8 Base Only -  60 x (0.005) lb
$768.00
Minebea Midrics MAPP1U-60ED-LU Stainless and Galvanized Steel 15.75 x 11.8 Base Only -  120 x (0.01) lb
$768.00
Minebea Midrics MAPP1U-30FE-LU Stainless and Galvanized Steel 19.5 x 15.75 Base Only - 60 x (0.005) lb
$993.00
Minebea Midrics MAPP1U-60FE-LU Stainless and Galvanized Steel 19.5 x 15.75 Base Only - 120 x (0.01) lb
$993.00
Minebea Midrics MAPP1U-150FE-LU Stainless and Galvanized Steel 19.5 x 15.75 Base Only - 300 x (0.02) lb
$993.00

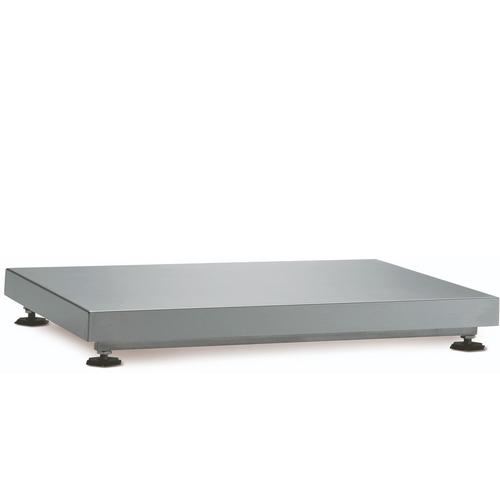

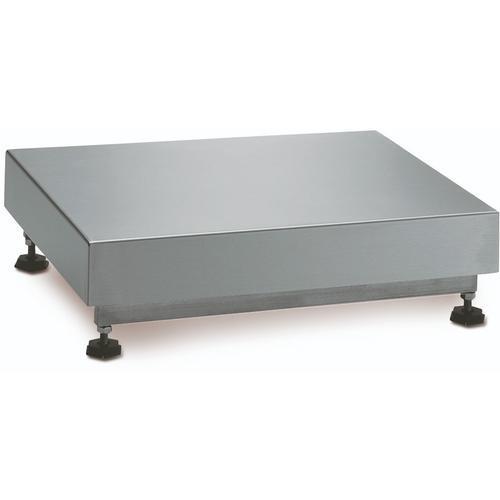

Price Base only

with Stainless Steel Frame
MAPS1U-3DC-LU MAPS1U-6DC-LU MAPS1U-15DC-LU MAPS1U-30ED-LU MAPS1U-60ED-LU MAPS1U-30FE-LU MAPS1U-60FE-LU MAPS1U-150FE-LU
Minebea Midrics MAPS1U-3DC-LU Stainless Steel  12.5 x 9.5  Base Only -  6 x (0.0005) lb
$1,294.00
Minebea Midrics MAPS1U-6DC-LU Stainless Steel  12.5 x 9.5  Base Only - 15 x (0.001) lb
$1,294.00
Minebea Midrics MAPS1U-15DC-LU Stainless Steel  12.5 x 9.5  Base Only - 30 x (0.002) lb
$1,294.00
Minebea Midrics MAPS1U-30ED-LU Stainless Steel  15.75 x 11.8  Base Only - 60 x (0.005) lb
$1,335.00
Minebea Midrics MAPS1U-60ED-LU Stainless Steel  15.75 x 11.8  Base Only - 120 x (0.01) lb
$1,335.00
Minebea Midrics MAPS1U-30FE-LU Stainless Steel 19.5 x 15.75  Base Only - 60 x (0.005) lb
$1,697.00
Minebea Midrics MAPS1U-60FE-LU Stainless Steel 19.5 x 15.75  Base Only - 120 x (0.01) lb
$1,697.00
Minebea Midrics MAPS1U-150FE-LU Stainless Steel 19.5 x 15.75  Base Only - 300 x (0.02) lb
$1,697.00
Base Only
Capacity x (Readability)
6 x (0.0005) lb 15 x (0.001) lb 30 x (0.002) lb 60 x (0.005) lb 120 x (0.01) lb 60 x (0.005) lb 120 x (0.01) lb 300 x (0.02) lb
3 kg x (0.2 g) 6 kg x (0.5 g) 15 kg x (1 g) 30 kg x (2 g) 60 kg x (5 g 30 kg x (2 g) 60 kg x (5 g) 150 kg x (10 g)
Pan Size 12.5" x 9.5"
320 x 240 mm
15.75" x 11.8"
400 x 300 mm
19.5" x 15.75"
500 x 400 mm
Pan Material Stainless Steel
Cable Platform 2.5 in
Compatible Indicators MIS1UR-V1 Midrics 1
MIS2UR-V2 Midrics 2
Optional Comprehensive accessories – Ramps
– Foundation frames
– Roller conveyors
– Benches
– Cables
– Printers
– Wall brackets
– Software
– Columns






Price Floor Base only

Painted Steel
MAPP4U-2500KK-N MAPP4U-5000KK-N MAPP4U-10000KK-N MAPP4U-2500NN-N MAPP4U-5000NN-N MAPP4U-10000NN-N MAPP4U-2500RR-N MAPP4U-5000RR-N MAPP4U-10000RR-N
Minebea Midrics MAPP4U-2500KK-N Legal for Trade 3 x 3 ft  Painted Floor Scales 2500 lb (Base Only)
$2,329.00
Minebea Midrics MAPP4U-5000KK-N Legal for Trade 3 x 3 ft  Painted Floor Scales 5000 lb (Base Only)
$2,329.00
Minebea Midrics MAPP4U-10000KK-N Legal for Trade 3 x 3 ft  Painted Floor Scales 10000 lb (Base Only)
$2,329.00
Minebea Midrics MAPP4U-2500NN-N Legal for Trade 4 x 4 ft  Painted Floor Scales 2500 lb (Base Only)
$2,381.00
Minebea Midrics MAPP4U-5000NN-N Legal for Trade 4 x 4 ft  Painted Floor Scales 5000 lb (Base Only)
$2,381.00
Minebea Midrics MAPP4U-10000NN-N Legal for Trade 4 x 4 ft  Painted Floor Scales 10000 lb (Base Only)
$2,381.00
Minebea Midrics MAPP4U-2500RR-N Legal for Trade 5 x 5 ft  Painted Floor Scales 2500 lb (Base Only)
$2,647.00
Minebea Midrics MAPP4U-2500RR-N Legal for Trade 5 x 5 ft  Painted Floor Scales 5000 lb (Base Only)
$2,912.00
Minebea Midrics MAPP4U-10000RR-N Legal for Trade 5 x 5 ft  Painted Floor Scales 10000 lb (Base Only)
$2,912.00
Floor Base Only
Capacity x (Readability)
2500 lb 5000 lb 10000 lb 2500 lb 5000 lb 10000 lb 2500 lb 5000 lb 10000 lb
1000 kg 2500 kg 5000 kg 1000 kg 2500 kg 5000 kg 1000 kg 2500 kg 5000 kg
Pan Size

3 x 3 ft

4 x 4 ft

5 x 5 ft

Pan Material Painted Steel
with Diamond Safety Tread
Frame Material Painted Steel
Legal for trade #17-110 NTEP Class III View Cert
NTEP Resolution 5000d
IP Rating IP67
Compatible Indicators MIS1UR-V1 Midrics 1
MIS2UR-V2 Midrics 2
Optional Comprehensive accessories YEG3MAPPU - 3 ft Pit frame for MAPP4U-KK platforms
YEG4MAPPU - 4 ft Pit frame for MAPP4U-NN platforms
YEG5MAPPU - 5 ft Pit frame for MAPP4U-RR platforms
YBG4MAPPU - 4 ft bumper guard (one side)
YBG5MAPPU - 5 ft bumper guard (one side)
YAR33MAPPU - 3 ft x 3 ft Ramp for MAPP4U-KK platforms
YAR34MAPPU - 4 ft x 3 ft Ramp for MAPP4U-NN platforms
YAR43MAPPU - 4 ft x 4 ft Ramp for MAPP4U-NN platforms
YAR53MAPPU - 5 ft x 3 ft Ramp for MAPP4U-RR platforms
YAR54MAPPU - 5 ft x 4 ft Ramp for MAPP4U-RR platforms
Warranty 2 Year
Country of Origin USA
