MSI-4260M Crane Scales
|
 |
 |
Legal For Trade
(Selected Models Only) |
Canada Measurement
(Selected Models Only) |
Have Questions?
Our Staff will be glad to help |
Specifications Chart |

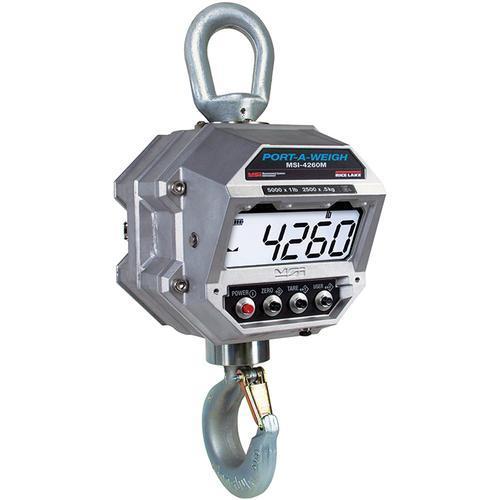

For medium- to heavy-capacity needs, the MSI-4260M has an established reputation as the industry standard in overhead weighing. The MSI-4260M Port-a-Weigh crane scale captures weight with + 0.1% accuracy through its full range of capacity starting at 500 pounds up to 100,000 pounds.
The MSI-4260M is built to perform reliably and offers two standard battery options: six (6) D-Cell batteries or a 12V sealed lead acid (SLA) battery. Timed auto-off and auto-sleep modes conserve power when the unit is not in use, meaning it is always ready for the job.
With an IP66 aluminum enclosure, it keeps dust out and withstands high-pressure water. Sensitive electronic components are sealed off and well-protected, including the MSI-4260M’s sleek and vibrant LCD display. Featuring programmable brightness control, the display ensures users have access to the weight data they need in any light condition.
STANDARD FEATURES
- LCD display
- IP66 cast aluminum
- Top lifting eye or shackle, bottom thrust bearing swivel hook

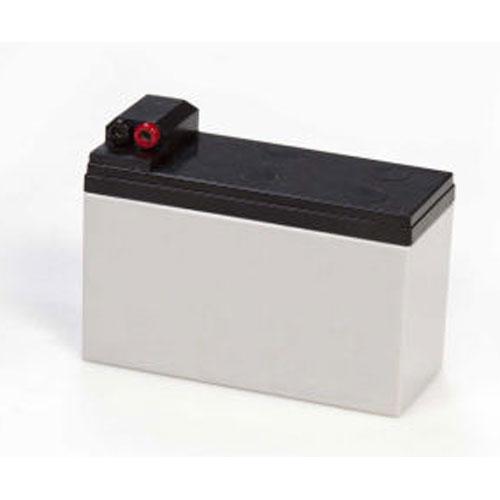

- Battery operated, six (6) D cell 1.5V alkaline batteries or 12 volt rechargeable battery (115/230 VAC battery charger is included)
- NTEP Certified configuration
OPTIONS

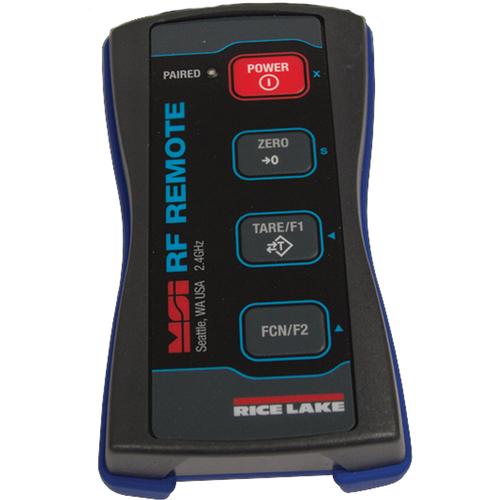

- Rugged remote control (control for On/Off, Zero, Tare and other functions)

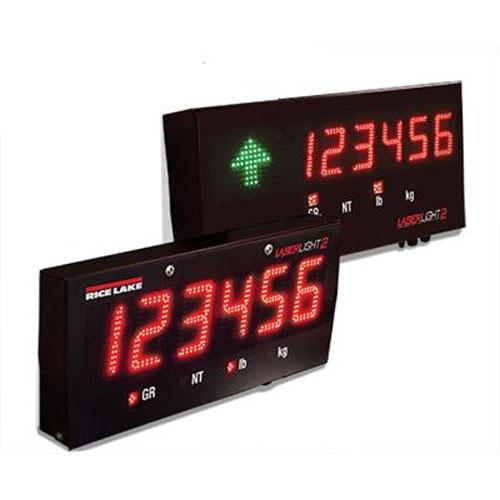

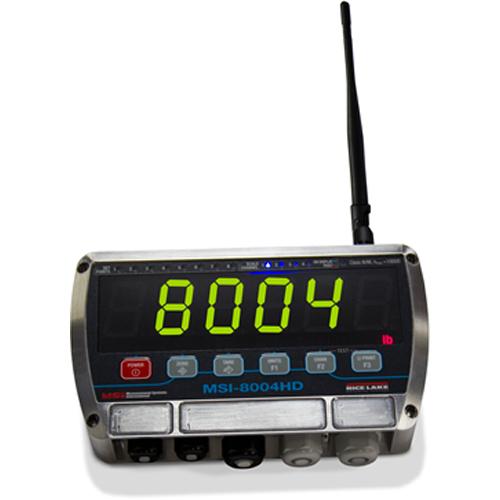

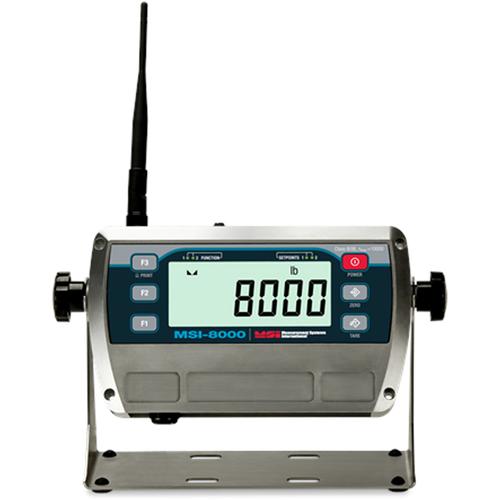

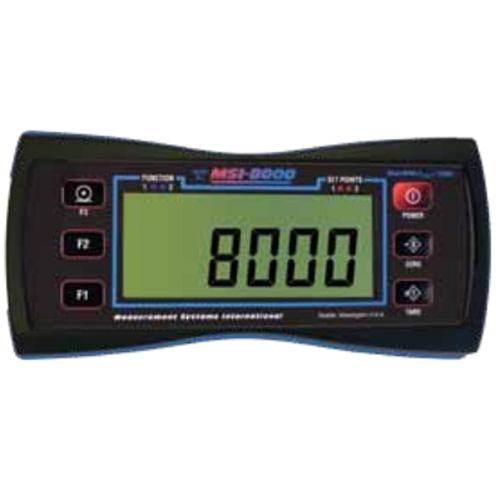

- optional RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display
- Wi-Fi communication is available for specialty applications
- Anti-heat shielding for high temperature applications
- Substitute bottom swivel hook with shackle
- Oversized top lifting eye or shackle
- Oversized bottom hook
- Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
- Low headroom top adapter
- Audible alarm
|
|
4260M with LCD display, Swivel Hook, No RF, 12V SLA Battery |
| Model |
Image |
Price |
Capacity x Readability |
Legal for Trade |
Est. Weight |
| 201951 |
|
$4,628.80
|
500 x 0.2 lb |
250 x 0.1 kg |
YES |
53 lb |
| 201953 |
 |
$4,633.20
|
2000 x 1 lb |
1000 x 0.5 kg |
YES |
53 lb |
| 201954 |
 |
$4,936.80
|
5000 x 1 lb |
2500 x 0.5 kg |
YES |
62 lb |
| 201955 |
 |
$5,143.60
|
10,000 x 2 lb |
5000 x 1 kg |
YES |
62 lb |
| 201956 |
 |
$6,705.60
|
20,000 x 5 lb |
10,000 x 2 kg |
YES |
105 lb |
| 201957 |
 |
$7,044.40
|
30,000 x 10 lb |
15,000 x 5 kg |
YES |
125 lb |
| 201958 |
|
$10,784.40
|
50,000 x 10 lb |
25,000 x 5 kg |
YES |
235 lb |
| 201959 |
 |
$14,115.20
|
70,000 x 20 lb |
35,000 x 10 kg |
YES |
270 lb |
| 201960 |
|
$21,472.00
|
100,000 x 20 lb |
50,000 x 10 kg |
- |
420 lb |
4260M with LCD display, Swivel Hook, No RF, D-Cell Battery |
| Model |
Image |
Price |
Capacity x Readability |
Legal for Trade |
Est. Weight |
| 201999 |
|
$4,633.20
|
500 x 0.2 lb |
250 x 0.1 kg |
YES |
53 lb |
| 202000 |
 |
$4,633.20
|
2000 x 1.0 lb |
1000 x 0.5 kg |
YES |
53 lb |
| 202001 |
 |
$4,936.80
|
5000 x 1 lb |
2500 x 0.5 kg |
YES |
62 lb |
| 202002 |
 |
$5,143.60
|
10,000 x 2 lb |
5000 x 1 kg |
YES |
62 lb |
| 202003 |
 |
$6,705.60
|
20,000 x 5 lb |
10,000 x 2 kg |
YES |
105 lb |
| 202004 |
 |
$7,044.40
|
30,000 x 10 lb |
15,000 x 5 kg |
YES |
125 lb |
| 202005 |
 |
$10,784.40
|
50,000 x 10 lb |
25,000 x 5 kg |
YES |
235 lb |
| 202006 |
 |
$14,115.20
|
70,000 x 20 lb |
35,000 x 10 kg |
YES |
270 lb |
| 202007 |
 |
$21,472.00
|
100,000 x 20 lb |
50,000 x 10 kg |
- |
420 lb |
| Specifications |
| Accuracy |
+ 0.1% +1 d of applied load |
| Resolution |
Max NTEP Approved Class III: 2,500 d
Max NTEP Approved Class IIIL: 5,000 d
Max Non-NTEP Approved: 10,000 d |
| Enclosure |
IP66 cast aluminum |
| Lifting Eye, Shackle & Hook |
Crosby® or equal with 360o thrust-bearing swivel hook |
| Design Overload |
200% Safe / 500% Ultimate (except where noted) |
| Functions |
Power: Turns Unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration)
Tare: Tares applied load and displays weight in Net mode
User: Programmable as test, total, unit, peak hold, net/gross, view total and print
|
| Display |
Five-digit, 1.75 in (44.5 mm) LCD with programmable brightness control |
| Displayable Units |
Pounds or kilograms selectable |
| Annunciators |
COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDs |
| Power |
Battery operated, six (6) D cell 1.5V alkaline batteries or 12 volt rechargeable battery (115/230 VAC battery charger is included) |
| Operating Time |
Six (6) D Cell 1.5V alkaline batteries: Up to 1,000 hours of battery life with typical use, less with RF modem
12 volt rechargeable battery: Up to 250 hours between charging with typical use, less with RF modem
|
| Temperature Range |
Operating: -20 oF to 122 oF (-28 oC to 50 oC)
Certified: 14 oF to 104 oF (-10 oC to 40 oC)
|
| Auto-Off Mode |
Powers off after the scale is not used for the set time (in minutes); 15, 30, 45, 60 or OFF selectable |
| Auto Sleep Mode |
Power down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectable |
| Service Counters |
Counts number of lifts over percentage of capacity and lifts over capacity |
| Calibration |
Digital (procedure initiated by calibration switch) |
| Filtering |
OFF, LO, HI-1 or HI-2 selectable |
| Radio Link |
802.15.4 at 2.4 GHz |
| Radio Effective Range |
Typically 100 to 300 ft line of sight |
| Warranty |
One-year limited |
| Approvals |
NTEP CC 19-122: 500 to 70,000 lb
Measurement Canada AM-6198: 500 to 5,000 lb |
|
