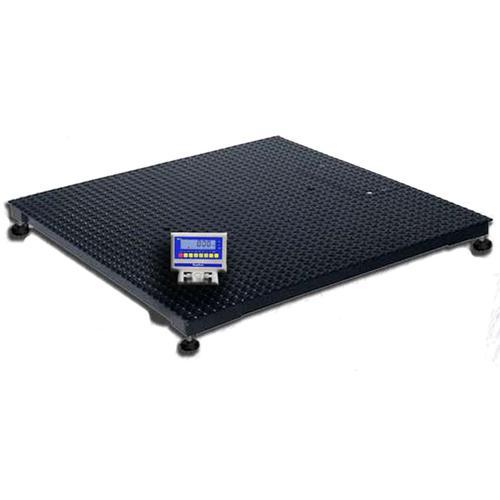

WeighSouth WS2500XL10 3 x 3 Legal for Trade Floor Scale, 2500 x 0.5 lb |
|
| Complete with the WeighSouth WS10 Indicator the WS5000XL10 Floor Scale features rugged steel construction, NEMA 4 side access stainless junction box, 2500 lb x 0.5 lb, 5000 lb x 1 lb and 10000 lb x 2 lb capacity, and easy adjustable feet. Shipped set up and calibrated the WS5000XL10 Floor Scale will provide accurate weight readings time and time again more ... |
|
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:2500 lbx 0.5 lb
Legal For Trade: 2500 lb x 0.5 lb
Pan Size
3 x 3 ft
|
|
|
|
|
|
|
|
|
Features
WeighSouth Industrial - Floor Scale
Description
Complete with the WeighSouth WS10 Indicator the WS5000XL10 Floor Scale features rugged steel construction, NEMA 4 side access stainless junction box, 2500 lb x 0.5 lb, 5000 lb x 1 lb and 10000 lb x 2 lb capacity, and easy adjustable feet. Shipped set up and calibrated the WS5000XL10 Floor Scale will provide accurate weight readings time and time again
Features
Capacity : 5000 x 1 lb
Platform : 1/4 inch Thick Plate with Diamond Tread
Platform size : 4 x 4 with Diamond Tread Plate
Industrial Grade Carbon Steel
Cable length : 18 inches
7 Inch Side Channels
Nema 4 Junction Box
Standard with Indicator
Weight : 284 lb.
Indicator
Resolution : Display 30,000
Weighing Units : Lb/Kg Selectable
Functions : Check Weighing, Counting, Totalizing
Construction : Stainless Steel
Display : 7 - Segment Red LED
Keyboard : 8 Function Multi Foil
Interface : RS232
Mounting : Wall, Table or Optional Column
Dimensions : 8 x 5.5 x 3.25
Power : 110 AC or Rechargeable Battery
|
|
Specifications
| Model |
WS2500XL10 |
WS500XL10 |
WS550XL10 |
| Capacity x Readability |
2500 x 0.5 lb |
5000 x 1 lb |
10000 x 2 lb |
| Platform Size |
3’x 3’ |
4’x 4’ |
5’x 5’ |
| Legal for Trade |
Base NTEP CC #10-031 - Indictor NTEP CC #10-081 |
| Weighing Modes |
lb and kg |
| Platform |
1/4" thick deck plate with diamond tread |
| Understructure |
5" channel steel, 7" side channels |
| J-Box |
NEMA 4 Stainless with Side Access |
| Construction |
Industrial Grade Carbon Steel |
| Resolution |
Display 30,000 |
| Indictor Construction |
Stainless Steel |
| Display |
7-segment LCD with back light |
| Keyboard |
8 Function Multi Foil |
| Inerface |
RS232 |
| Power |
110 vAC or Rechargeable Battery |
|
|
|
|
|
|
| |
|
|
|
|
