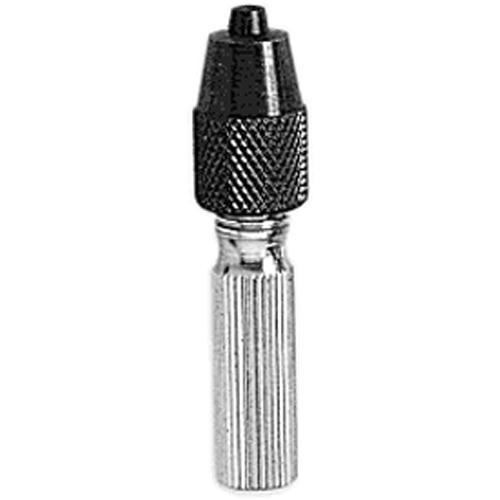

Shimpo FG-M6PIN1 1 mm Pin Head Grip, M6 Thread, 22 lb (11 kg) Capacity |
|
SHIMPO’s Small Pin Grip attachments are ideal for gripping fi.ne wires and .laments, which enables precise and accurate testing results for small and hard-to-hold items. With various width and load capacities available, these grips are available in three ranges for checking sample thicknesses of 0.02”, 0.04” and 0.08” (0.5, 1 and 2 mm). more ... |
Test Equipment >
Grips and Attachments >
Attachments
|
|
|
|
Features
SHIMPO’s Small Pin Grip attachments are ideal for gripping fi.ne wires and .laments, which enables precise and accurate testing results for small and hard-to-hold items. With various width and load capacities available, these grips are available in three ranges for checking sample thicknesses of 0.02”, 0.04” and 0.08” (0.5, 1 and 2 mm).
Weight:
1.00 lb
|
1 Year Manufacture Warranty
|
Specifications
Model |
FG-M6PIN05 |
FG-M6PIN1 |
FG-M6PIN2 |
Range |
0.02 in (0.5 mm) thick |
0.04 in (1 mm) thick |
0.08 in (2 mm) thick |
Capacity |
22 lb (11 Kg) |
22 lb (11 Kg) |
22 lb (11 Kg) |
Thread |
M6 |
M6 |
M6 |
|
|
|
