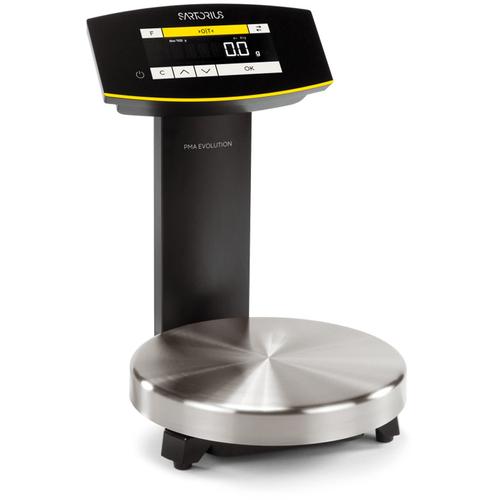

Sartorius EVO1S1N1-C PMA Evolution Paint Mixing Scale For Use in Non-hazardous Areas - 1000 x 0.05 g and 7500 g x 0.1 g |
|
The Sartorius PMA Evolution comes with a host of features that boost paint mixing precision, reduce mixing wait time, and improve user experience. An internal mixing module eliminates the need for a dedicated PC. It allows the PMA Evolution to carry out independent formulation processing. At the same time, the integrated applications enable users to fine-tune measurement resolution, recalculate functionality in the event of over-pouring more ... |
Scales >
Industrial Scales >
Paint Mixing Scales
|
|
|
|
Features
Designed for Efficiency and User Experience
The Sartorius PMA Evolution comes with a host of features that boost paint mixing precision, reduce mixing wait time, and improve user experience. An internal mixing module eliminates the need for a dedicated PC. It allows the PMA Evolution to carry out independent formulation processing. At the same time, the integrated applications enable users to fine-tune measurement resolution, recalculate functionality in the event of over-pouring, calculate recipe adjustments to align with any paint can size, and externally calibrate the PMA Evolution. The downloadable PMA management software provides easily adjustable scale settings, customizable introductory text for branding, and inventory control counting features. And the updated sensor touch high-contrast display is optimized for use with a wide viewing angle, visual feedback, bar graph zoom functionality, intelligent dosing assistance, and a capacity indicator to minimize overpour.
Simple Use
The unique, single-cord design makes installation, integration, and use simple, while the unique Plug & Play technology expands the compatibility options offered by the PMA Evolution. Updated security features prevent unauthorized use and theft. They include a manual instant lock function and automatic communication lock function, which activates when the display detects a lack of ongoing communication between the scale and connected computer. The PMA Evolution complies with legal regulations (OIML) and is certified as explosion-proof (IECEx, FM, ATEX).
The updated user interface includes:
- An advanced sensor touch display with visual feedback that provides visual feedback for intuitive use
- A wide viewing angle
- Intelligent capacity indicators
- Dosing assistance
- Bar graph zoom capability
Benefits
- One cable for power and data
- Integrated mixing module processes one formulation
- New high contrast display technology
- Glass sensor touch technology
- Multi-lock security function
Weight:
13.00 lb
|
|
Specifications
Model |
EVO1S1N1-C |
Capacity x Readability |
7500 x 0.1 g 999.95 x 0.05 g |
Tare range (subtractive) |
-7,500 g |
Weighing pan (Ø) |
233 mm |

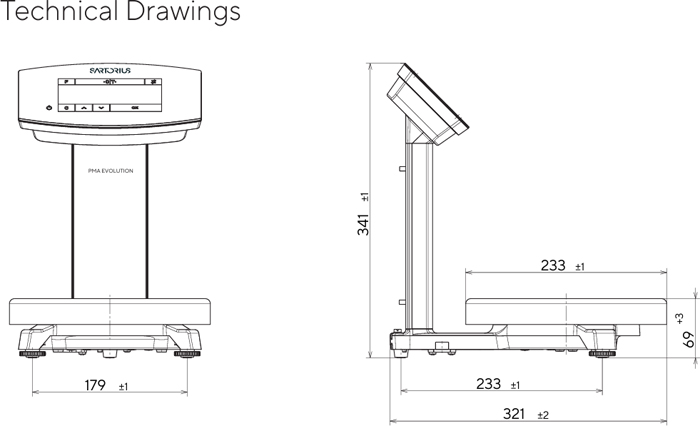

Housing (W × D × H) |
233 x 321 x 341 mm |
Net weight |
approx. 2.4 kg |
External calibration weight |
1, 2, 5 kg (class F2 or better) |
Allowable operating temperature |
5 ... 40 ºC |
Dust and water protection rating in accordance to EN 60529/IEC 60529 |
IP40 |
Power supply |
via USB 2.0 or higher or power supply YEPS01-USB |
Input voltage | power consumption |
5 V DC | 2 W |
Data output |
USB | Type B |
Format |
7-bit ASCII, 1 Start-bit, 1 or 2 Stop-Bits |
Parity |
Even, odd, no parity |
Transmission rates |
1,200 to 57,600 Bit/s |
Weighing pan (Ø) |
233 mm |
Handshake mode |
Software, Hardware or None |
Internal application |
Integrated mixing module Recalculation (correction of over-pours) Calculation by factor (0.25 – 5.0) Stand-alone recipe processing (absolute, additive) Dual range 0.05 g (up to 999.95 g) Hardware test and communication symbol |
Non-hazardous |
For Use in Non-hazardous Areas |
Accessories
USB cable, length 3 m (9.8 ft.) YCC01-0040M3

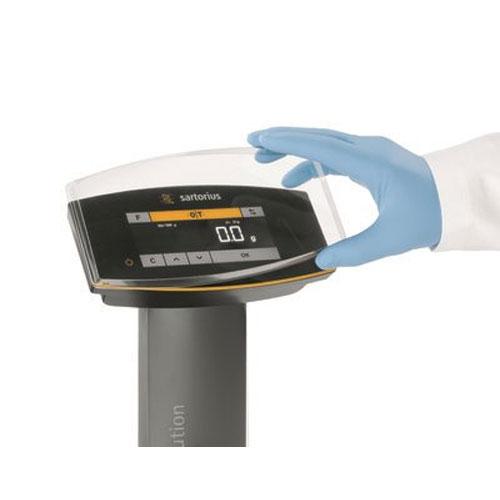

In-use cover for display (set of 10) YDC03PMA10

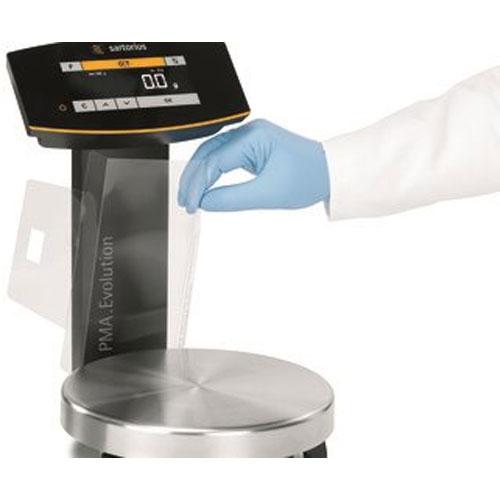

In-use cover for column (set of 10) YDC03PMA-CO10

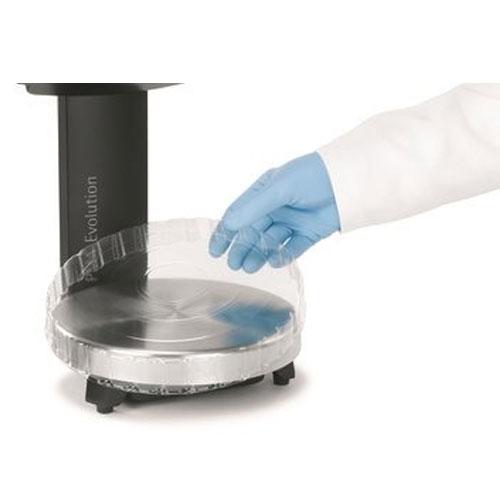

In-use cover for weighing pan (set of 10) YDC03PMA-WP10
USB power plug 5.2 VDC | 1400 mA YEPS01-USB
AC-adapter set (US, EU, UK) YEPS01-PS1
AC-adapter set (AU, ZA, BR, AR) YEPS01-PS6
AC-adapter set (IN, KR, CN) YEPS01-PS7
External calibration weight 1 kg (class F2) YCW614-AC-00
External calibration weight 1 kg (class F2) with DAKKS certificate YCW614-AC-02
External calibration weight 2 kg (class F2) YCW624-AC-00
External calibration weight 2 kg (class F2) with DAKKS certificate YCW624-AC-02
External calibration weight 5 kg (class F2) YCW654-AC-00
External calibration weight 5 kg (class F2) with DAKKS certificate YCW654-AC-02
|
|
|
* within the 48 continental US States
|
|
|
|
|
