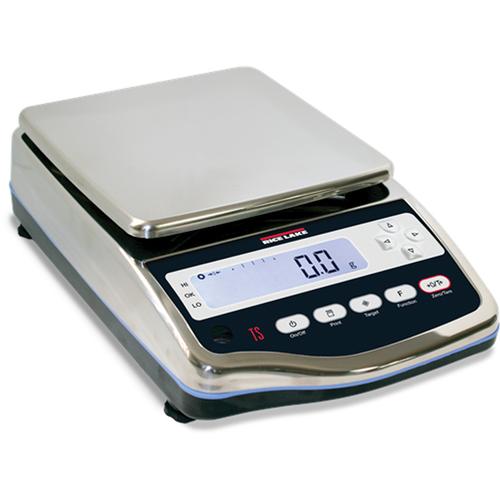

Rice Lake TS-6200 Tuning Fork Stainless Steel Washdown Balance 6200 x 0.1 g |
|
| The sleek looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out. more ... |
|
Scales >
Laboratory >
Basic
|
|
|
|
|
|
Features
Practical. Portable. Precise.
The simple, straightforward design of Rice Lake’s TP Series balance creates for an effortless user experience. Equipped with the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional stability to any setting.
User Friendly:
Functions that are easy to use and understand come standard with the TP Series balance. Enhance productivity with modes such as unit counting and percentage weighing. Adapt to any type of standard with the ability to weigh in 12 different measurement units.
Compact:
The compact and manageable size of the TP Series balance is suitable for even the most limited of space. A footprint smaller than a sheet of paper makes it perfect for crowded work environments.
Responsive:
Each balance performs with incredible sensitivity and stability by relying on its dynamic tuning fork sensor. Plug in and go without waiting for stabilization.
To Be the Best By Every Measure Rice Lake Weighing Systems is an international leader in the manufacture and distribution of weight-related products and process-control equipment. Within this ISO 9001 registered company, progressive new technologies merge with the wisdom of industry experience and create the future of weighing through cutting-edge research and design.
Experience sensitivity 50 times greater than that of any load cell and maintain incredible long-term stability. The remarkable response time and exceptional stability is due to three main attributes:
- Equipped with superior heat capacity and conductivity, the temperature range of a tuning fork balance is extremely small, ultimately achieving higher accuracy.
- The tuning fork sensor does not require any A-D converters, analog circuits or magnetic circuits.
- Tuning fork balances do not incorporate an internal magnetic coil, enabling them to remain virtually free from damaging dust.
Tuning fork balances have consistently outperformed traditional load-cell-based balances. The mono-metal turning fork sensor provides unrivaled stability with an extremely small margin of error. Tuning fork balances are easy to maintain and provide superior performance
Rice Lake TP Series - APPLICATIONS
JEWELRY and PAWN - Grams Pennyweight Carat
For gold and other precious metals, a TP balance provides the repetitive accuracy necessary for weighing in grams, pennyweight and carat.
GRAIN - Percentage Weighing
Percentage weighing determines the quality of a bulk grain sample. With a TP balance, results are precise; increasing profits and eliminating wasted material.
PHARMACEUTICAL - Grams Pharmaceutical Counting
In a fast-moving pharmacy setting, accurate weighment is critical. TP balances not only have a quick response time but also the precision required for weighing in grams, milligrams and pharmaceutical counting.
LEGAL for TRADE - Grams Pounds Ounces
Approved for use in commercial transactions, TP balances can meet Legal for Trade requirements in grams, pounds and ounces.
Standard Features
- External weight calibration
- Large, 16.5 mm-high backlit liquid crystal display (LCD)
- Selectable modes: weight, unit, count and percentage
- 12 units of measurement
- Mono-Metal Tuning Fork Sensor (MMTF) provides quick response and stability
- 20-step bar graph display
- 115 VAC adapter included (230 VAC optional)
- One part in 620,000 resolution
- RS-232 bidirectional
- Plastic housing on models < 1,000 g, plastic top and die cast bottom on models > 1,000 g
Weight:
10.00 lb
|
5 Year Manufacture Warranty
|
Other Rice Lake TS-Series Tuning Fork Stainless Steel Washdown Balanc
|
Specifications
| Model |
108156
TS-620 |
108157
TS-6200 |
112182
TS-8200 |
Capacity
Readability |
620 x 0.01 g |
6200 x 0.1 g |
8200 x 0.1 g |
| Operating Modes |
Counting, Percentage, Limit Function (Checkweighing), Weighing multiplied by coefficient, specific gravity, animal weighing, adding multiple measurements |
| Repeatability |
1 division |
| Linearity |
1 division |
| Operating Temperature |
0° C to 40° C 80% RH or less |
| Pan Size |
Ø 140 mm (5.51 in) |
190 x 190 mm (7.48 X 7.48 in) |
| RS-232 Specifications |
Baud rate - 1200/2400/4800/9600/19200, Data bits 8/7; Connector - 9-Pin D-Sub M (not IP65 unless using PN 109238 cable) |
| Dimensions |
12.2 x 8.2 x 3.4 in (310 x 208 x 87 mm) |
| Weight (Approx.) |
10 lb (4.5 kg) |
| Calibration Weight* |
600 g |
6000 g |
8000 g |
| Power |
120 V AC adapter |
| Battery Option |
Field installable, uses 4 AA dry cell batteries |
| Warranty |
Five-year limited warranty |
| Decimal Ounce |
21 x 0.0005 oz |
210 x 0.005 oz |
280 x 0.005 oz |
| Decimal Pound |
1.3 x 0.00005 lb |
13 x 0.0005 lb |
18 x 0.0005 lb |
| Troy Ounce |
19 x 0.0005 ozt |
190 x 0.005 ozt |
260 x 0.005 ozt |
| Pennyweight |
390 x 0.01 dwt |
3900 x 0.1 dwt |
5200 x 0.1 dwt |
| Carat |
3100 x 0.05 ct |
31000 x 0.5 ct |
41000 x 0.5 ct |
| Momme |
160 x 0.005 mom |
1600 x 0.05 mom |
2100 x 0.05 mom |
| Grain Unit |
9500 x 0.2 GN |
95000 x 2 GN |
120000 x 2 GN |
* Calibration of balance does not require weight of full capacity (adjustable)
|
|
|
|
|
|
|
