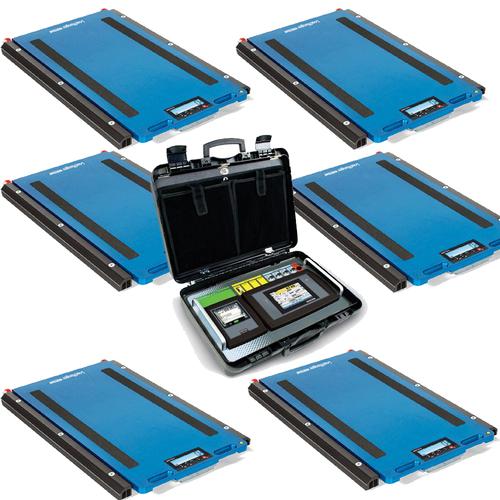

Rice Lake 181849-X6 Set of 6 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 22,000 x 10 lb and a Remote Indicator |
|
| Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication more ... |
|
Wheel Weighing Scales >
Wheel Load Systems >
6 Scale Wheel Load System
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.
Remote Touchscreen Indicator and Printer
To simplify operation, Load Ranger wheel weigh pads can be paired with an optional touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing from integrated wheel pad sets and ticket printing.
- Up to 6 individual pads (3 sets) per system, completely wireless
- 14 individual pads (7 sets) per system maximum, joined via cable, wireless communication to indicator
- Industrial Bluetooth® radio module for ability to communicate with indicator
- Integrated wheels and non-slip rubber under platform
- Built-in indicator on each scale with 1 in character display
- IP68 rating
Optional remote indicator with integrated printer in carrying case
- Backlit graphic display with touchscreen technology
- Thermal printer
- ABS transport case wheel weighing software
- Semi-automatic and preset tare
- Print and display list of last 3,500 vehicle
|
2 Year Manufacture Warranty
|
Other Rice Lake Load Ranger Wireless Wheel Weighing Scales
181843
Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 3000 x 1 lb
$1,904.85
|
181844
Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 6500 x 2 lb
$1,904.85
|
181845
Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 13
000 x 5 lb
$1,904.85
|
181846
Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 22
000 x 10 lb
$2,070.85
|
181847
Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 33
000 x 10 lb
$2,070.85
|
181848
Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 13
000 x 5 lb
$2,386.25
|
181849
Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 22
000 x 10 lb
$2,386.25
|
181850
Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 33
000 x 10 lb
$2,386.25
|
181851
Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 13
000 x 5 lb
$2,886.40
|
181852
Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 22
000 x 10 lb
$2,886.40
|
181853
Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 33
000 x 10 lb
$2,886.40
|
181854
Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 44
000 x 20 lb
$2,886.40
|
181843-X2
Set of 2 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 3000 x 1 lb and a Remote Indicator
$5,635.70
|
181844-X2
Set of 2 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 6500 x 2 lb and a Remote Indicator
$5,635.70
|
181845-X2
Set of 2 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$5,635.70
|
181846-X2
Set of 2 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 22
000 x 10 lb a Remote Indicator
$5,967.70
|
181847-X2
Set of 2 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$5,967.70
|
181848-X2
Set of 2 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$6,598.50
|
181849-X2
Set of 2 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 22
000 x 10 lb and a Remote Indicator
$6,598.50
|
181850-X2
Set of 2 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$6,598.50
|
181851-X2
Set of 2 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$7,598.80
|
181852-X2
Set of 2 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 22
000 x 10 lb and a Remote Indicator
$7,598.80
|
181853-X2
Set of 2 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$7,598.80
|
181854-X2
Set of 2 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 44
000 x 20 lb and a Remote Indicator
$7,598.80
|
181843-X4
Set of 4 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 3000 x 1 lb and a Remote Indicator
$9,445.40
|
181844-X4
Set of 4 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 6500 x 2 lb and a Remote Indicator
$9,445.40
|
181845-X4
Set of 4 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$9,445.40
|
181846-X4
Set of 4 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 22
000 x 10 lb a Remote Indicator
$10,109.40
|
181847-X4
Set of 4 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$10,109.40
|
181848-X4
Set of 4 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$11,371.00
|
181849-X4
Set of 4 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 22
000 x 10 lb and a Remote Indicator
$11,371.00
|
181850-X4
Set of 4 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$11,371.00
|
181843-X6
Set of 6 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 3000 x 1 lb and a Remote Indicator
$13,255.10
|
181844-X6
Set of 6 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 6500 x 2 lb and a Remote Indicator
$13,255.10
|
181845-X6
Set of 6 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$13,255.10
|
181851-X4
Set of 4 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$13,371.60
|
181852-X4
Set of 4 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 22
000 x 10 lb and a Remote Indicator
$13,371.60
|
181853-X4
Set of 4 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$13,371.60
|
181854-X4
Set of 4 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 44
000 x 20 lb and a Remote Indicator
$13,371.60
|
181846-X6
Set of 6 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 22
000 x 10 lb a Remote Indicator
$14,251.10
|
181847-X6
Set of 6 Load Ranger 22 in x 20 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$14,251.10
|
181848-X6
Set of 6 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$16,143.50
|
181849-X6
Set of 6 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 22
000 x 10 lb and a Remote Indicator
$16,143.50
You are viewing this product
|
181850-X6
Set of 6 Load Ranger 30 in x 22 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$16,143.50
|
181851-X6
Set of 6 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 13
000 x 5 lb and a Remote Indicator
$19,144.40
|
181852-X6
Set of 6 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 22
000 x 10 lb and a Remote Indicator
$19,144.40
|
181853-X6
Set of 6 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 33
000 x 10 lb and a Remote Indicator
$19,144.40
|
181854-X6
Set of 6 Load Ranger 37 in x 24 in Wireless Wheel Weighing Scale 44
000 x 20 lb and a Remote Indicator
$19,144.40
|
|
Specifications
| Model |
Load Ranger RF-MD |
Load Ranger RF-WD |
Load Ranger RF-XWD |
| 181843 |
181844 |
181845 |
181846 |
181847 |
181848 |
181849 |
181850 |
181851 |
181852 |
181853 |
181854 |
| Capacity x Readability |
3,000 x 1 lb |
6,500 x 2 lb |
13,000 x 5 lb |
22,000 x 10 lb |
33,000 x 10 lb |
13,000 x 5 lb |
22,000 x 10 lb |
33,000 x 10 lb |
13,000 x 5 lb |
22,000 x 10 lb |
33,000 x 10 lb |
44,000 x 20 lb |
| Size W x L |
22 in x 20 in
H 2.28 in
(564 mm x 511 mm x 58 mm) |
30 in x 22 in
H 2.28 in
(750 mm x 561 mm x 58 mm) |
37 in x 24 in
H 2.28 in
(950 mm x 611 mm x 59 mm) |
| Construction |
Aluminum alloy |
| Display |
1 in character display on each scale |
| System Accuracy |
0.05% of rated capacity |
| Power Supply |
Rechargeable battery Approximately 40 hours of battery life Includes uL approved AC wall adaptor |
| Operating Temperature |
14°F to 104°F (-10°C to 40°C) |
| Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Warranty |
2 year limited warranty |
|
|
|
|
|
|
|
|
|
|
|
|
|
)
)
