MSI MSI-3460C2KRF CHALLENGER 3 Crane Scale Legal For Trade With RF modem 2000 x 1 lb |
|
| The MSI-3460 overhead crane scale with ScaleCore measurement module provides industry-leading weighing features of previous Challenger designs plus much more. Long-range viewing is enhanced with a larger 1.5 inch (38 millimeter) ultra-bright LED digital display and resolution settings of up to 10,000 divisions for precise 0.1 percent loading accuracy. more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
|
|
Features
A Legal for Trade Crane Scale
The MSI-3460 overhead crane scale with ScaleCore measurement module provides industry-leading weighing features of previous Challenger designs plus much more. Long-range viewing is enhanced with a larger 1.5 inch (38 millimeter) ultra-bright LED digital display and resolution settings of up to 10,000 divisions for precise 0.1 percent loading accuracy. Product operating time is extended to over 80 plus hours with a single six-volt rechargeable battery. The original signature Challenger packaging has been upgraded to NEMA Type 4/IP65 levels. Manufactured in the USA in strict compliance with the highest safety standards, Challenger continues to sustain a minimum 200 percent safe and 500 percent ultimate load ratings.
A ScaleCore electronics retrofit kit is available for upgrading existing MSI-3260 or MSI-3360 Challengers to new generation MSI-3460.

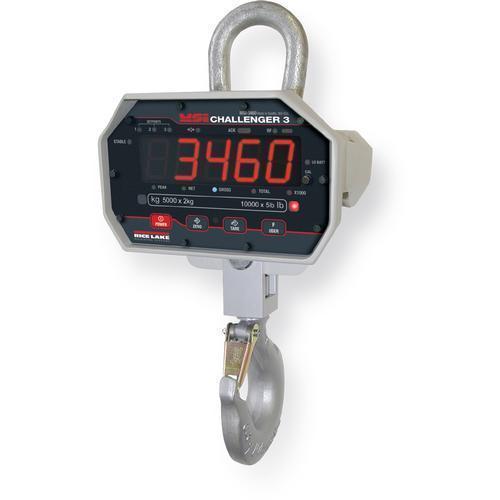

MSI-3460 Challenger 3 Crane Scale
- Multi-color LED display
- Top lifting eye and bottom swivel hook
- Lb/kg switch selectable
- Six volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
- Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
- NTEP Certified (250 to 10,000 lb capacities)
Options
- (Contact MSI for application consultation)
- RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend™ and LaserLight2 remote display (Typical range 100-300 ft line of sight)
- Rugged Remote (control for Off, Zero, Tare and other functions) (Requires 3460RF version, typical range 50 ft line of sight)
- Universal direct power supply (115/230 VAC)
- Audible alarm
- Wi-Fi communication is available for specialty applications
Dimensions
X:
28.70
Y:
9.00
Z:
14.00
Weight:
22.00 lb
|
1 Year Manufacture Warranty
|
Other MSI 3460 CHALLENGER 3 Crane Scales
| Image |
Name |
Price |
|
|
$1,876.00
|
|
|
$2,036.00
|
|
|
$2,110.50
|
|
|
$1,876.00
|
|
|
$2,290.50
|
|
|
$1,960.00
|
|
|
$2,124.00
|
|
|
$2,389.50
|
|
|
|
$2,389.50
|
|
|
$1,960.00
|
|
|
$2,384.00
|
|
|
$2,504.30
|
|
|
$2,384.00
|
|
|
$2,853.00
|
|
|
$4,096.15
|
|
|
$4,080.35
|
|
Specifications
| Standard Model |
207063
MSI-3460C250 |
208091
MSI-3460C500 |
207064
MSI-3460C1K |
208138
MSI-3460C2K |
207065
MSI-3460C5K |
208092
MSI-3460C10K |
207067
MSI-3460C15K |
| With RF modem |
207633
MSI-3460C250RF |
208096
MSI-3460C500RF |
207635
MSI-3460C1KRF |
208140
MSI-3460C2KRF |
207637
MSI-3460C5KRF |
208098
MSI-3460C10KRF |
207639
MSI-3460C15KRF |
| RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend™ and LaserLight2 remote display (Typical range 100-300 ft line of sight) |
| With WiFi |
207640 |
208100 |
207642 |
208141 |
207644 |
208102 |
207646 |
| Bluetooth and WiFI Models will NOT work with any MSI Remote Displays |
| Specifications |
| Capacity x Readability |
250 x 0.1 lb |
500 x 0.2 lb |
1000 x 0.5 lb |
2000 x 1 lb |
5000 x 2 lb |
10000 x 5 lb |
15000 x 5 lb |
| 125 x 0.05 kg |
250 x 0.1 kg |
500 x 0.2 kg |
1000 x 0.5 kg |
2500 x 1 kg |
5000 x 2 kg |
7000 x 2 kg |
| Accuracy |
+ 0.1% (+1 d) of applied load |
| Legal for Trade |
NTEP CC 86-021A5 |
NTEP CC 86-021A5 |
NTEP CC 86-021A5 |
NTEP CC 86-021A5 |
NTEP CC 86-021A5 |
NTEP CC 86-021A5 |
- |
| Display |
Five-digit, 1.5 in (38 mm) LED with programmable brightness control
toggle between red, orange and green digits |
| RESOLUTION |
2,500 d max standard (up to 10,000 d max non-standard) |
| ENCLOSURE |
NEMA 4, IP65, powder coated cast aluminum |
| LIFTING EYE & HOOK |
Crosby® or equivalent with 360° non-bearing swivel hook |
| DESIGN OVERLOAD |
200% safe / 500% ultimate |
| FUNCTIONS |
Power: Turns unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP Certified/OIML configurations)
Tare: Tares applied load and displays weight in net mode
User: Programmable as TEST, UNITS, NET/GROSS, TOTAL and PEAK HOLD |
| DISPLAYABLE UNITS |
Pound or kilogram selectable |
| ANNUNCIATORS |
COZ, net, gross, total, peak, low battery, lb/kg, motion, setpoints, ACK IN, ACK OUT, RF |
| POWER |
6 volt rechargeable battery. 115/230?VAC battery charger is included |
| OPERATING TIME |
Up to 80 hours between charging with typical use. Less with optional RF model link |
| Operating Temperature Range |
Legal 14o to 104oF (-10o to 40oC)
Industrial -10o to 104oF (-40o to 40oC) |
| AUTO-OFF MODE |
Select for 15, 30, 45, 60 minutes or off |
| AUTO SLEEP MODE |
Power down during non-use and power up with weight change or any key press |
| SERVICE COUNTERS |
Counts number of lifts over percentage of capacity and lifts over capacity |
| CALIBRATION |
Digital |
| FILTERING |
OFF, LO, HI-1, HI-2 selectable |
|
|
|
|
|
|
|
