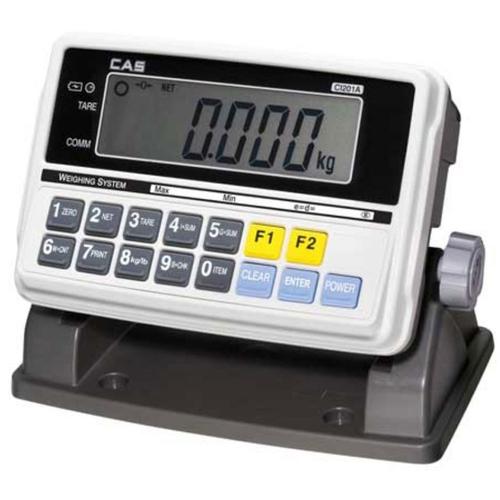

CAS CI-201A Indicator with 1 Inch LCD Display, Legal for Trade |
|
| The CI-200 Series, a family of digital indicators providing full featured versatility and dependability at an economical price. A wide array of standard features include either 304 stainless steel IP67 rated or hardened plastic NEMA 12 enclosures, AC or DC operation, choice of dry cell or rechargeable battery, full function numeric keypad, ID capabilities, and much more more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
The CI-200 Series, a family of digital indicators providing full featured versatility and dependability at an economical price. A wide array of standard features include either 304 stainless steel IP67 rated or hardened plastic NEMA 12 enclosures, AC or DC operation, choice of dry cell or rechargeable battery, full function numeric keypad, ID capabilities, and much more.
Product Description
- Available in hardened plastic NEMA 12 enclosure and 304 stainless steel IP67 enclosure
- AC or DC operation
- Choice of dry cell or rechargeable battery
- Full function numeric keypad
- ID capabilities
- RS-232 output
- Time and date
- Accumulation and counting capabilities
- Hi/Lo alarm
- Weight back up
- Over/Under/Accept annunciators (CI-200SC)
- Wall/desk mount included
- Choose the "Quick Connect" load cell connector or Universal load cell connector for the CI-200S/CI-200SC
- Legal for trade - COC# 11-026
Models
- CI-200A: LED Display, Hardened Plastic NEMA 12, AC/Rechargeable Battery
- CI-200A-DB: LED Display, Hardened Plastic NEMA 12, AC/Dry Cell Battery Holder
- CI-201A: LCD Display, Hardened Plastic NEMA 12, AC/Rechargeable Battery
- CI-201A-DB: LCD Display, Hardened Plastic NEMA 12, AC/Dry Cell Battery Holder
- CI-200S: LED Display, 304 Stainless Steel IP67 Rated Enclosure, AC/Rechargeable Battery
- CI-200SC: LED Display, 304 Stainless Steel IP67 Rated Enclosure, AC/Rechargeable Battery
Weight:
4.00 lb
|
|
Specifications
| Model |
CI-200A |
CI-201A |
CI-200SC |
| Approvals |
NTEP COC# 11-026
Measurement Canada# AM-5903 |
| Load Cell Input Voltage |
DC 5V |
| Load Cell Connection |
8 @ 350 ohm / 16 @ 1000 ohm |
| Zero Calibration |
0~2 mV/V |
| Input Sensitivity |
2 µV/D |
| A/D Internal Resolution |
1/520,000 |
| A/D External Resolution |
NTEP: Up to 10,000 D - Non-Commercial: Up to 30,000 D |
| A/D Conversion Speed |
Maximum 80 times/sec |
| Battery Life (Approximate) |
30 hrs |
180 hrs - No backlight
|
26 hrs |
| Charging Time |
Approx 12 hours |
| Keys |
10 numeric keys, 2 function keys |
| Display |
6 Segment - 1 Inch LED |
6 Segment - 1 Inch LCD |
6 Segment - 1 Inch LED |
| Display Designators |
ZERO, TARE, GROSS, NET, STABLE, UNIT |
| Power |
12VDC Adapter, 6V Rechargeable Pb Batt, or Optional - AA size Dry Battery x 6 |
AC Power Cord, 6V Rechargeable Pb Batt |
| Operating Temperature |
-10°C ~ 40°C / 14°F ~ 104°F |
| Interface |
RS-232C |
| Wall/Desk Mount |
Included |
| Power: AC |
YES |
YES |
YES |
| Power: DC - Rechargeable Battery |
YES |
YES |
YES |
| LCD Display w/Adjustable Backlight |
- |
YES |
- |
| LED Display |
YES |
- |
YES |
| Numeric Keypad |
YES |
YES |
YES |
| Hardened Plastic NEMA 12 Enclosure |
YES |
YES |
- |
| 304 Stainless Steel IP67 Enclosure |
- |
- |
YES |
| Accumulation Mode |
YES |
YES |
YES |
| Counting Mode |
- |
YES |
- |
| Percent |
- |
YES |
- |
| RS-232C |
2 |
2 |
1 |
| Units |
lb/kg |
lb/kg |
lb/kg |
| Indicator Wall/Desk Mount Kit Included |
YES |
YES |
YES |
| Password Protected |
YES |
YES |
YES |
| Hi/Lo Alarm |
- |
YES |
YES |
| Over/Under/Accept Annunciators |
YES |
- |
- |
| ID Capabilities: 0 - 19 Numeric # |
YES |
YES |
YES |
| Multi-Point Calibration |
YES |
YES |
YES |
| Time/Date |
YES |
YES |
YES |
| Weight Back Up |
YES |
YES |
YES |
| Dual Range Capabilities |
Non NTEP |
Non NTEP |
Non NTEP |
| CAS "Quick Connect" Load Cell Cable Connector |
YES |
YES |
- |
| Universal Load Cell Cable Connector |
- |
- |
YES |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
|
