LP-Scale LP766XW Wireless Axle Scales with 2 pads and Weighing indicor


Authorized Dealer
The LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.
LP Scales >> Wheel Weighing Scales
LP-Scale LP766XW Wireless Axle Scales
Have Questions?
Call USoremail Us
Our Staff will be glad to help

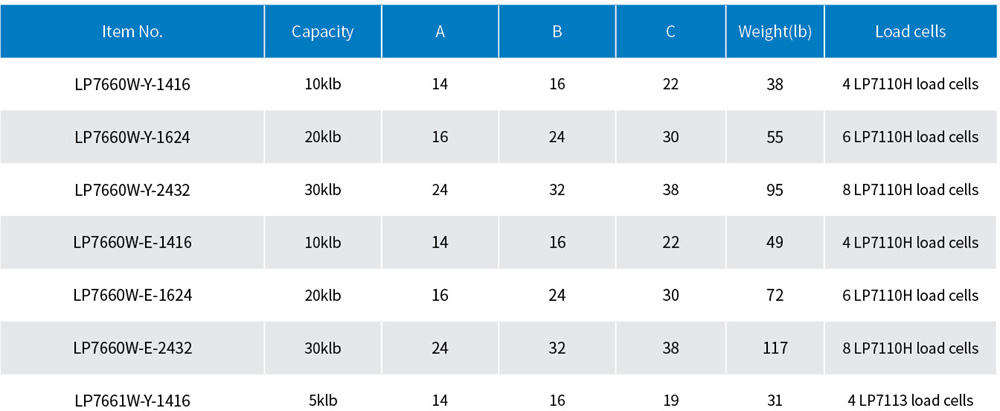

Specifications Charts

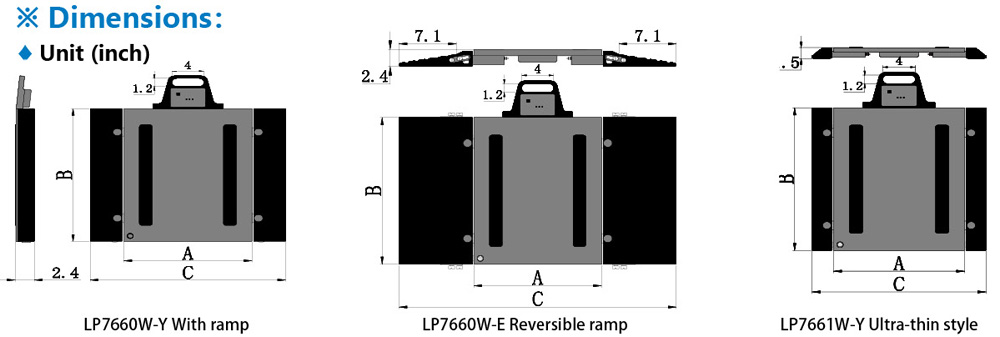

Dims

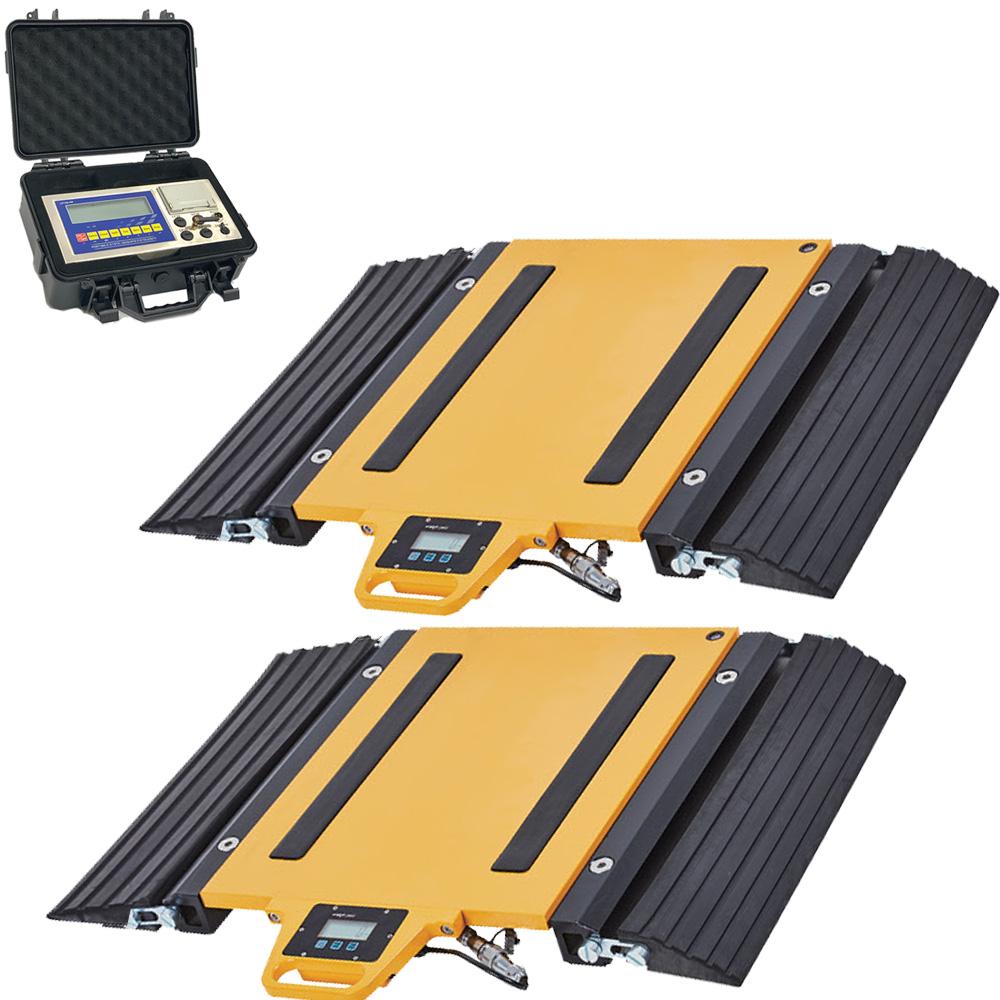

LP-Scale LP766XW Wireless Axle Scales
with 2 pads and Weighing indicor

Cases
LP Scale LPMOVEBOX-1416-2PADS Moveable steel 14 x 16  packing box - 2 pads
LP Scale LPMOVEBOX-1416-2PADS Moveable steel 14 x 16 packing box - 2 pads, add $288.00
LP Scale LPMOVEBOX-1416-4PADS Moveable steel 14 x 16  packing box - 4 pads
LP Scale LPMOVEBOX-1416-4PADS Moveable steel 14 x 16 packing box - 4 pads, add $576.00
LP Scale LPMOVEBOX-1624-2PADS Moveable steel 16 x 24  packing box - 2 pads
LP Scale LPMOVEBOX-1624-2PADS Moveable steel 16 x 24 packing box - 2 pads, add $305.00
LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24  packing box - 4 pads
LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24 packing box - 4 pads, add $434.00
LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24  packing box - 4 pads
LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24 packing box - 4 pads, add $434.00
LP Scale LPMOVEBOX-2432-4PADS Moveable steel 24 x 32  packing box - 4 pads
LP Scale LPMOVEBOX-2432-4PADS Moveable steel 24 x 32 packing box - 4 pads, add $691.20


More info
The LP Scale LP7660 axle load scale ( pesaje dinamico basculas de puente) are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.
  • Accuracy class: ±0.5%F.S (Static weighing)
  • Include 2 pads with ramps & transmitter, Weighing indicor
  • Indicator LP7561F wireless with printer
  • Option Self display transmitter; 4 or 6 pads
  • Option moveable steel packing box
Main technical features:
  • Accuracy of the platform : 3000e
  • Low profile: only 58mm high
  • Structure in special aluminum, for guaranteeing the lightness as well as sturdiness and long duration in time.
  • Vulcanized antislip rubber in the resting areas, for maximum grip on any type of surface.
  • IP68 stainless steel load cells.
  • Extremely easy and reliable connection of the scale to the weight indicator
  • Very easy to manoeuvre.
  • Fitted with 10m cable and connector for connection to weight indicator.
  • High-definition LCD backlit
  • With built-in printer
  • Waterproof keyboard
  • In dynamic mode, there are two types for options: high accuracy dynamic mode and normal accuracy dynamic mode
Versatile and simple to use
  • LP7660 platforms are an excellent alternative to the classic fixed weighting system (like weighbridges), especially when weighing vehicles, when one needs to:
  • Create weighing stations in a short time and on any surface
  • Check the weight of the material transported by the vehicles
  • Execute an unlimited number of daily weighs, without having to use weighbridges.
  • Weigh for limited periods of time (harvest, crops, etc.).
  • Verify the weight of each single wheel, of each single axle, and all the various weight sums of a vehicle.
  • Weigh in small spaces

Easy to transport
The reduced weight and ergonomic handles make it easy to transport LP7660 platforms; furthermore, the bigger size are fitted with wheels which further simplify their movement.

Suitable for dynamic weighing LP7660 combined with a LP7650 indicator, allow to create dynamic weighing systems, with automatic acquisition of the weight of the axles and calculation of the total weight of the vehicle. LP-Scale LP766XW Wireless Axle Scales

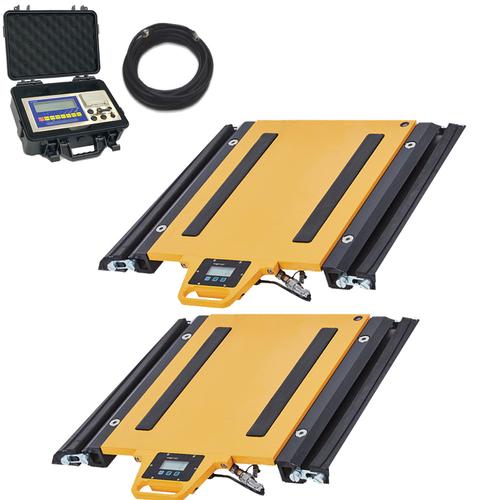

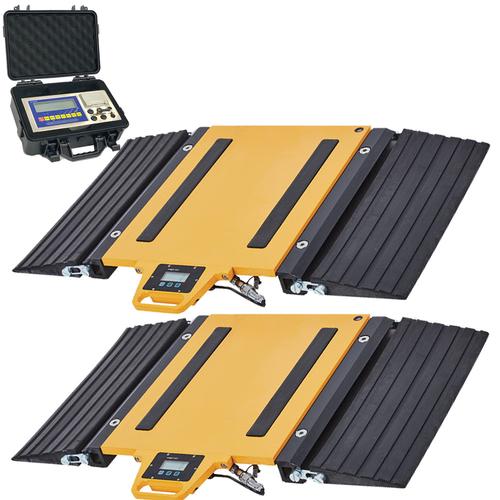

Models LP7660W-Y-1416-10 LP7660W-Y-1624-20 LP7660W-Y-1624-20 LP7660W-E-1416-10 LP7660W-E-1624-20 LP7660W-E-2432-30 LP7661W-Y-1416-5
Price LP Scale LP7660W-Y-1416-10 Wireless Axle Scales with Two 14 x 16 pads and Weighing indicator total 20000 x 5 lb
$2,464.80
LP Scale LP7660W-Y-1624-20 Wireless Axle Scales with Two 16 x 24 pads and Weighing indicator total 40000 x 10 lb
$2,964.00
LP Scale P7660W-Y-2432-30 Wireless Axle Scales with Two 24 x 32 pads and Weighing indicator total 60000 x 20 lb
$4,274.40
LP Scale LP7660W-E-1416-10 Wireless Axle Scales with Two 14 x 16 pads and Weighing indicator total 20000 x 5 lb
$2,558.40
LP Scale LP7660W-E-1624-20 Wireless Axle Scales with Two 16 x 24 pads and Weighing indicator total 40000 x 10 lb
$3,088.80
LP Scale LP7660W-E-2432-30 Wireless Axle Scales with Two 24  x 32 pads and Weighing indicator total 60000 x 20 lb
$4,586.40
LP Scale LP7661W-Y-1416-5 Wireless Axle Scales with Two 14 x 16 pads and Weighing indicator total 10000 x 1 lb
$2,340.00
Display 6-digit 1 inch LCD with backlight
Capacity x Redability 20000 x 5 lb
(2 Pads 10000 x 5 lb)
40000 x 10 lb
(2 Pads 20000 x 10 lb)
60000 x 20 lb
(2 Pads 30000 x 20 lb)
20000 x 5 lb
(2 Pads 10000 x 5 lb)
40000 x 10 lb
(2 Pads 20000 x 10 lb)
60000 x 20 lb
(2 Pads 30000 x 20 lb)
10000 x 1 lb
(2 Pads 5000 x 1 lb)
Size 14 x 16 inch 16 x 24 inch 24 x 30 inch 14 x 16 inch 16 x 24 inch 24 x 30 inch 14 x 16 inch
Material Aluminum with self ramp Aluminum with ruber ramp Aluminum with self ramp
Ramp Size 4 inch 7 inch 7 inch 4 inch 7 inch 7 inch 2.5 inch
Legal For Trade
Units kg/lb switchable
Temperature range -10ºC ~ +40ºC
Tare range +10%F.S
rating IP68
Include 2 pads with ramps & transmitter, Weighing indicor
Optinal Self display transmitter; 4 or 6 pads
Power AC 110V 60Hz built-in rechargeable battery

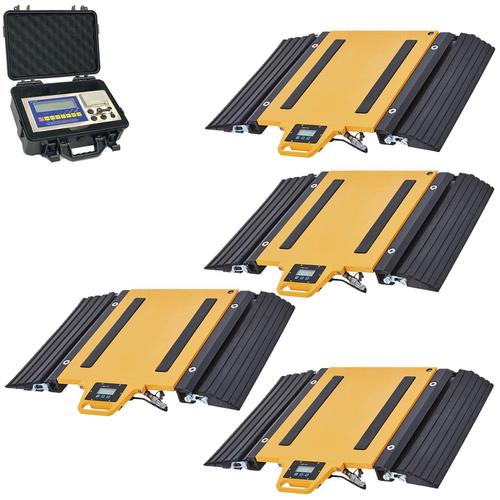

Models LP7660W-Y-1624-20-4
Price LP Scale LP7660W-Y-1624-20-4 Wireless Axle Scales with Four 16 x 24 pads and Weighing indicator total 80000 x 10 lb
$5,700.00
Display 6-digit 1 inch LCD with backlight
Capacity x Redability 80000 x 10 lb
(4 Pads 20000 x 10 lb)
Size 16 x 24 inch
Material Aluminum with self ramp
Ramp Size 7 inch
Legal For Trade
Units kg/lb switchable
Temperature range -10ºC ~ +40ºC
Tare range +10%F.S
rating IP68
Include 4 pads with ramps & transmitter, Weighing indicor
Optinal Self display transmitter; 4 or 6 pads
Power AC 110V 60Hz built-in rechargeable battery




LP766XW

LP-Scale LP766XW Wheel Scales  LP-Scale LP766XW Wheel Scales



Moveable steel packing box
Models LPMOVEBOX-1416-2PADS LPMOVEBOX-1624-2PADS LPMOVEBOX-2432-2PADS LPMOVEBOX-1416-4PADS LPMOVEBOX-1624-4PADS LPMOVEBOX-2432-4PADS
Price LP Scale LPMOVEBOX-1416-2PADS Moveable steel 14 x 16  packing box - 2 pads
$288.00
LP Scale LPMOVEBOX-1624-2PADS Moveable steel 16 x 24  packing box - 2 pads
$305.00
LP Scale LPMOVEBOX-2432-2PADS Moveable steel 24 x 32  packing box - 2 pads
$345.60
LP Scale LPMOVEBOX-1624-4PADS Moveable steel 16 x 24  packing box - 4 pads
$434.00
LP Scale LPMOVEBOX-2432-2PADS Moveable steel 24 x 32  packing box - 2 pads
$345.60
LP Scale LPMOVEBOX-2432-4PADS Moveable steel 24 x 32  packing box - 4 pads
$691.20
Material Mild Steel With Wheels
Size 14 x 16 16 x 24 24 x 32 14 x 16 16 x 24 24 x 32
Number of pads 2 2 2 4 4 4
