LP-Scale LP7628A Legal for Trade Cattle Scales

Manufacturers

LP-Scale LP7628A Legal for Trade Cattle Scales	Authorized Dealer
The LP7628A cattle scale is designed to bring accurate weighing solutions. The scale base carries a carbon steel plate surface which creates stability for the animal. In addition, the indicator carries pre-programed fast capture weighing functions, to accommodate timing in weighing process.
LP Scales >> Veterinary Scales

LP-Scale LP7628A Legal for Trade Cattle Scales

Have Questions?

email Us

Our Staff will be glad to help

Legal For Trade

Specifications Charts

Dims

LP-Scale LP7628A Legal for Trade Cattle Scales

Indicator Stands
	LP Scale LP7371 Mild Steel Floor Indicator Stand With Wheels 40 Inch, add $80.00
	LP Scale LP7371SS Stainless Steel Floor Indicator Stand With Wheels 40 Inch, add $144.00
	LP Scale LP7370 Mild Steel Floor Indicator Stand 40 Inch, add $72.00
	LP Scale LP7370SS Stainless Steel Floor Indicator Stand 40 Inch, add $102.00
	LP Scale LP7372 Mild Steel Floor Indicator Stand With Support Feet 40 Inch, add $72.00
	LP Scale LP7372SS Stainless Steel Floor Indicator Stand With Support Feet 40 Inch, add $114.00

More info

The LP7628A cattle scale is designed to bring accurate weighing solutions. The scale base carries a carbon steel plate surface which creates stability for the animal. In addition, the indicator carries pre-programed fast capture weighing functions, to accommodate timing in weighing process.

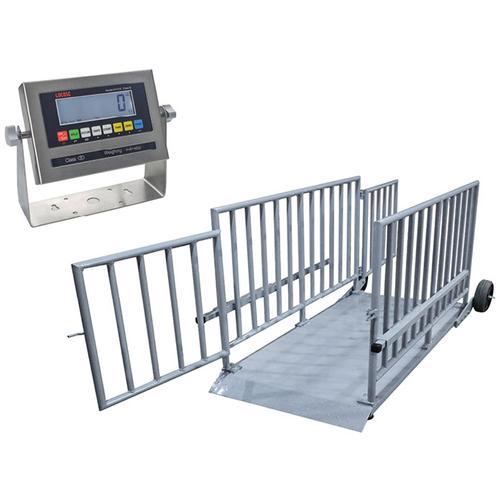

This livestock scale can be used for weighing hogs, sheep, cattle or horses while keeping them in the cage. It is heavily constructed and comes with all the accessories, such as indicator, connection cable, casters, cage.
Specification:
Accuracy: class III
Display: 6-digit 20mm LED or 25mm LCD with backlight
Using environment: -10ºC ~ +40ºC, =85%RH
Power supply: AC110/220V 50~60Hz, DC4V/4Ah lead acid battery

Accuracy class: III n_max: 5000
Include Frame with wheel, Rail, 4 Load cells, Weighing indicator,Cable
Indicator LP7510 NTEP approved CC# 20-011
Load cells LP7110 NTEP approved CC# 17-121A1
Option: Indicator stand, other indicator

Model	LP76248A-3060-1000	LP76248A-3060-2500	LP76248A-6084-2500	LP76248A-6084-5000	LP76248A-84120-2500	LP76248A-84120-5000
Mild Price	$1,350.00	$1,350.00	$2,430.00	$2,430.00	$3,528.00	$3,528.00
Frame Material	Painted Steel
Pan Material	Painted Steel
Display	6-digit 20mm LED or 25mm LCD with backlight
Capacity x Redability	1000 x 0.2 lb	2500 x 0.5 lb	2500 x 0.5 lb	5000 x 1 lb	2500 x 0.5 lb	5000 x 1 lb
Legal For Trade	Accuracy class: III nmax: 5,000 divisions Indicator: #20-011 Load cells LP7110 NTEP approved CC# 17-121A1
Size	30 x 60 in - 2.5 x 5 ft		60 x 84 in - 5 x 7 ft		84 x 120 in - 7 x 10 ft
Column Height	-
Weighing function	Zero, tare, G.W, N.W, accumulation. printing, animal -weighing.
Units	kg/lb switchable
Power	AC110/220V 50~60Hz, DC4V/4Ah lead acid battery
Interface	Full Duplex RS-232 Serial Port
limit alarm	Upper/lower
Wheels	Yes
Handle	Yes
power save	Automatic power off and power save
warning alarm	Automatic error warning alarm

Dims

LP Scale LP7625 Legal for Trade Pallet Scales

LP-Scale LP7628A Legal for Trade Cattle Scales

30 x 60 in - 2.5 x 5 ft

60 x 84 in - 5 x 7 ft

84 x 120 in - 7 x 10 ft

Dims
