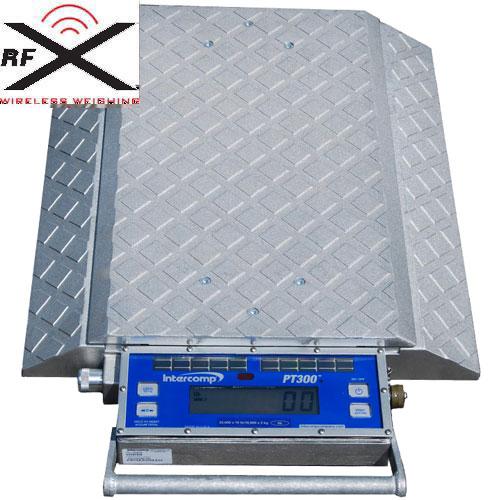

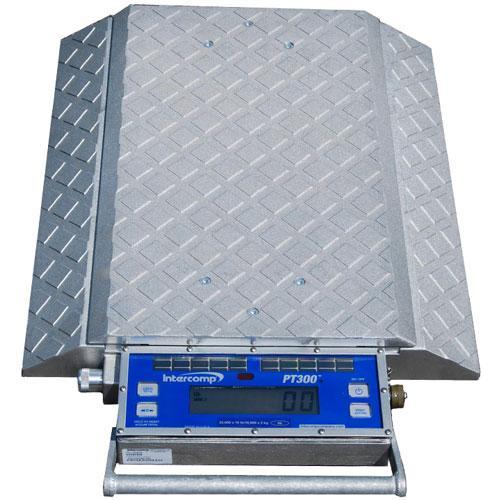

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scales

Manufacturers

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scales	Authorized Dealer
PT300DW™ scales feature Fully Integrated RFX™ Wireless Weighing Technology and are Solar-Powered. Designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment and is designed to accommodate oversized tires, ideal for use on unimproved surfaces to ensure wheels don’t touch the ground
Intercomp

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scales

Have Questions?

email Us

Our Staff will be glad to help


Legal For Trade

PT300DW™ scales have been setting the bar for portable, self-contained, compact wheel load scales for decades. Used to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment, these all aluminum, fully electronic scales are capable of weighing up to 40,000lbs (18,000kgs) with an accuracy of + 1%.

The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources. Standard Rechargeable AA Batteries last up to 300 Hours in the Scales.

Fully Integrated RFX™ Wireless Weighing Technology, using no antennas and makes it possible to sequentially couple and number PT300™ scales in the series for the purpose of obtaining a total vehicle weight through the total button or by linking the scales to a computer, display, or Intercomp’s complete line of weighing indicators. For customers whose local regulations prevent the use of any wireless radio communication, radios can be disabled or you can select from hardwired alternatives

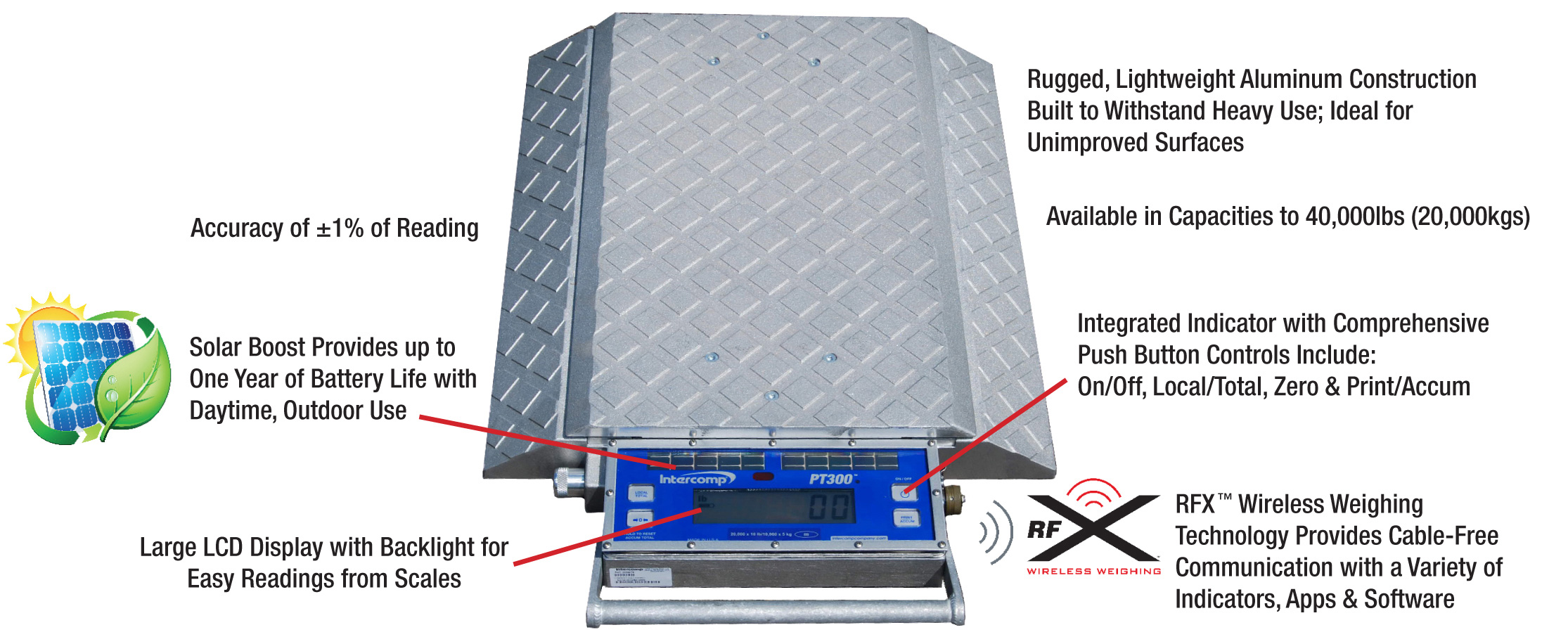

•5,000 lb (2,500 kg) to 40,000 lb (20,000 kg) Pad Capacities
Accuracy of +1% of Reading
Large, Easy-to-Read, LCD Display
Standard AA Rechargeable Batteries Last up to 300 Hours in Scales
Solar Boost Provides up to One Year of Battery Life with Daytime, Outdoor Use

In addition, battery life has been significantly enhanced with the use of solar panels that will power the scales for up to a year before needing direct power charging with daytime outdoor use.

PT300DW ™ Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for uneven surfaces and withstands most weather conditions.

The PT300DW ™ is designed to maximize legal payloads with concerns for violations and reduction of maintenance due to overload stress on equipment.

PT300 ™ Scales are now standard with Fully Integrated RFX ™ Wireless Weighing Technology and encryption ensures secure wireless communication. Cabled models are also available when wireless is not an option. Batteries last up to 300 hours in scales

Intercomp PT300DW Solar-Powered Wheel Load Scales

Accessories For 181500
	Intercomp 101221-RFX PT20 CPU RFX Indicator with Built-in-Printer, add $2,695.50
	Intercomp 140759 IntercompWeigh™ Software , add $895.50
Batteries, Chargers & Charging Cables
	Intercomp Part 330158, 4 Cell Battery Pack for PT300 - PT300DW - LP600 - LP 630, add $39.00
	Intercomp Part 100874 Charger, External, 120/220 Volt, 4x6 NiCad Battery Packs/NiMH, add $625.50
	Intercomp Part 100480 Universal Charger for Intercomp CW250, PT300 (Must Order W Scale), add $160.00
	Intercomp Part 100492 Universal Charger for 2 PT300 / PT300DW scales (100-240VAC) (Must Order W Scale), add $228.60
	Intercomp Part 100493 Universal Charger for 4 PT300 PT300DW scales (100-240VAC) (Must Order W Scale), add $381.60
	Intercomp Part 100494 Universal Charger for 6 PT300 PT300DW scales (100-240VAC) (Must Order W Scale), add $534.60
Cables
	Intercomp 101029 Two scales Interconnect cable - PT300, PT300DW or LP600, add $153.00
	Intercomp 101032 Four scales Interconnect Cable PT300, PT300DW or LP600, add $306.00
	Intercomp 101035 Six scales Interconnect Cable PT300 or LP600, add $459.00
	Intercomp 101030 Two scales Interconnect/Charge Cable (PT300, PT300DW, LP600), add $297.00
	Intercomp 101033 Four scales Interconnect/Charge Cable PT300 or LP600, add $450.00
	Intercomp 101036 Six scales Interconnect/Charge Cable PT300 or LP600, add $603.00
Printer/Totalizing
	Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CS750, CS1500 & CS3000, TL6000 & CW250 & PT600 (Need 101165 cable), add $535.50
	Intercomp Part 101165, Cable for 340105 Printer , 15 ft., add $175.50

Model	181508 PT300DW	181503 (20mA) PT300DW	181501-RFX PT300DW	181502-RFX PT300DW	181503-RFX PT300DW	181504-RFX PT300DW	181505-RFX PT300DW	181506-RFX PT300DW
Model	$2,200.50	$1,950.75	$2,800.75	$3,225.75	$1,950.75	$2,078.25	$2,078.25	$1,950.75
Connection Type	Wired	Wired	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
Connection Type	Wired	Wired	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	20,000 x 10 lb	20,000 x 20 lb	30,000 x 50 lb	40,000 x 100 lb	20,000 x 20 lb	20,000 x 10 lb	10,000 x 5 lb	5,000 x 5 lb
Capacity	10,000 x 5 kg	10,000 x 10 kg	15,000 x 25 kg	20,000 x 50 kg	10,000 x 10 kg	5,000 x 5 kg	5,000 x 2 kg	2,500 x 2 kg
Legal for Trade	-	-	-	-	-	-	-	-
Accuracy	+1% of Reading
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar, Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22 " x 14 " (559 x 356mm)

2 Scale Kits

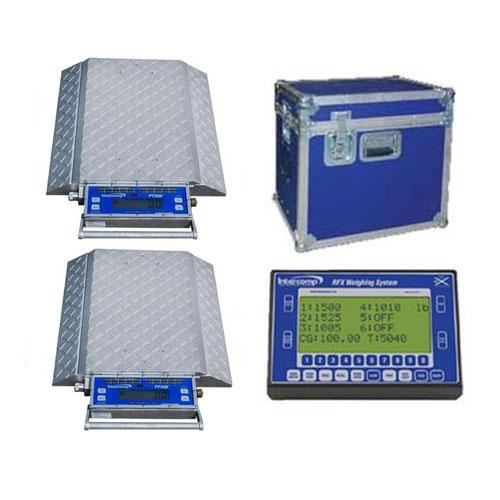

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With Two Scales
Model	181501-RFX-K2 PT300	181502-RFX-K2 PT300	181503-RFX-K2 PT300	181504-RFX-K2 PT300	181505-RFX-K2 PT300	181506-RFX-K2 PT300
Price Wireless and solar (with no cables)	$7,902.00	$8,802.00	$6,102.00	$6,372.00	$6,372.00	$6,102.00
Price with Charging and Interconnecting Cables	-	-	181520-RFX	181521-RFX	181522-RFX	181523-RFX
Price with Charging and Interconnecting Cables			$6,399.00	$6,669.00	$6,669.00	$6,399.00
Connection Type	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
Connection Type	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	60,000 x 50 lb (2 x 30,000 lb)	80,000 x 100 lb (2 x 40,000 lb)	40,000 x 20 lb (2 x 20,000 lb)	40,000 x 10 lb (2 x 20,000 lb)	20,000 x 5 lb (2 x 10,000 lb)	10,000 x 5 lb (2 x 5,000 lb)
Capacity	30,000 x 25 kg (2 x 15000 kg)	40,000 x 50 kg (2 x 20,000 kg)	20,000 x 10 kg (2 x 10,000 kg)	20,000 x 5 kg (2 x 10,000 kg)	10,000 x 1.5 kg (2 x 5,000 kg)	5,000 x 1.5 kg (2 x 2,5000 kg)
Legal for Trade	-	-	-	-	-	-
Accuracy	+1% of Reading
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22" x 14" (559 x 356mm)

4 Scale Kits

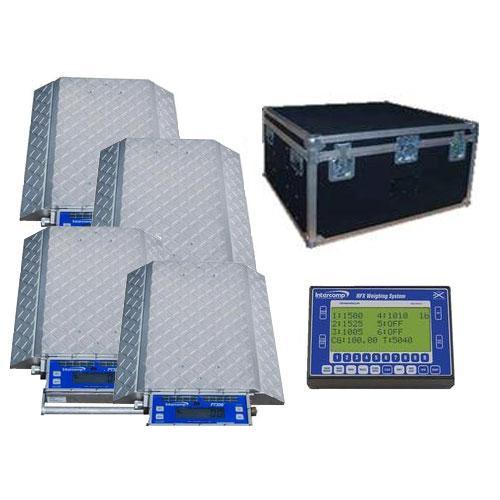

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With Four Scales
Model	181501-RFX-K4 PT300	181502-RFX-K4 PT300	181503-RFX-K4 PT300	181504-RFX-K4 PT300	181505-RFX-K4 PT300	181506-RFX-K4 PT300
Price Wireless and solar (with no cables)	$14,283.00	$16,083.00	$10,683.00	$11,223.00	$11,223.00	$10,683.00
Price with Charging and Interconnecting Cables	-	-	181540-RFX	181541-RFX	181542-RFX	181543-RFX
Price with Charging and Interconnecting Cables			$11,133.00	$11,673.00	$11,673.00	$11,133.00
Connection Type	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
Connection Type	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	120,000 x 50 lb (4 x 30,000 lb)	160,000 x 100 lb (4 x 40,000 lb)	80,000 x 20 lb (4 x 20,000 lb)	80,000 x 10 lb (4 x 20,000 lb)	40,000 x 5 lb (4 x 10,000 lb)	20,000 x 5 lb (4 x 5,000 lb)
Capacity	60,000 x 25 kg (4 x 15,000 kg)	80,000 x 50 kg (4 x 20,000 kg)	40,000 x 10 kg (4 x 10,000 kg)	40,000 x 5 kg (4 x 10,000 kg)	20,000 x 1.5 kg (4 x 5,000 kg)	10,000 x 1.5 kg (4 x 2,5000 kg)
Legal for Trade	-	-	-	-	-	-
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22" x 14" (559 x 356mm)

6 Scale Kits

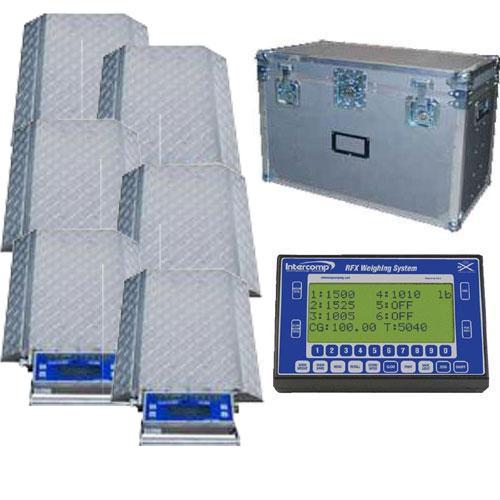

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With Six Scales
Model	181501-RFX-K6 PT300	181502-RFX-K6 PT300	181503-RFX-K6 PT300	181504-RFX-K6 PT300	181505-RFX-K6 PT300	181506-RFX-K6 PT300
Price Wireless and solar (with no cables)	$20,934.00	$22,914.00	$15,534.00	$16,344.00	$16,344.00	$15,534.00
Price with Charging and Interconnecting Cables	-	-	181560-RFX	181561-RFX	181562-RFX	181563-RFX
Price with Charging and Interconnecting Cables			$16,137.00	$16,947.00	$17,172.00	$16,137.00
Connection Type	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
Connection Type	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	180,000 x 50 lb (6 x 30,000 lb)	240,000 x 100 lb (6 x 40,000 lb)	120,000 x 20 lb (6 x 20,000 lb)	120,000 x 10 lb (6 x 20,000 lb)	60,000 x 5 lb (6 x 10,000 lb)	30,000 x 5 lb (6 x 5,000 lb)
Capacity	90,000 x 25 kg (6 x 15,000 kg)	170,000 x 50 kg (6 x 20,000 kg)	60,000 x 10 kg (6 x 10,000 kg)	60,000 x 5 kg (6 x 10,000 kg)	30,000 x 1.5 kg (6 x 5,000 kg)	12,500 x 1.5 kg (6 x 2,5000 kg)
Legal for Trade	-	-	-	-	-	-
Accuracy	+1% of Reading
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22" x 14" (559 x 356mm)
