Create the perfect Sanitary Bench Scale for your operation by adding the right Fairbanks instrument and mounting hardware to a Fairbanks QuickSilver Stainless Steel Platform
The QuickSilver’s superior sanitary design and durable stainless steel construction make these platforms the ultimate base in a platform-pillarinstrument (PPI) configuration.Fairbanks gives its customers powerful options that essentially enable you to build a custom scale by choosing:
- One of five QuickSilver Platform sizes
- 10” x 10”
- 12” x 12”
- 18” x 18”
- 18” x 24”
- 24” x 24”
- One of three sanitary instruments — NexWeigh, FB2250, FB2255 - with IP69K or NEMA 4X enclosure
- One of six mounting options
- 10” pillar
- 18” pillar
- 30” pillar
- Short pillar
- Desk / wall mount stand
- Portable scale cart
QuickSilver platforms are the perfect foundation for a reliable sanitary bench scale configuration.
APPLICATIONS
- RTE washdown
- Gross weighing
- Gross/Tare/Net weighing
- Manual batching, filling
- blending with totalizing
- Checkweighing
- Accumulation

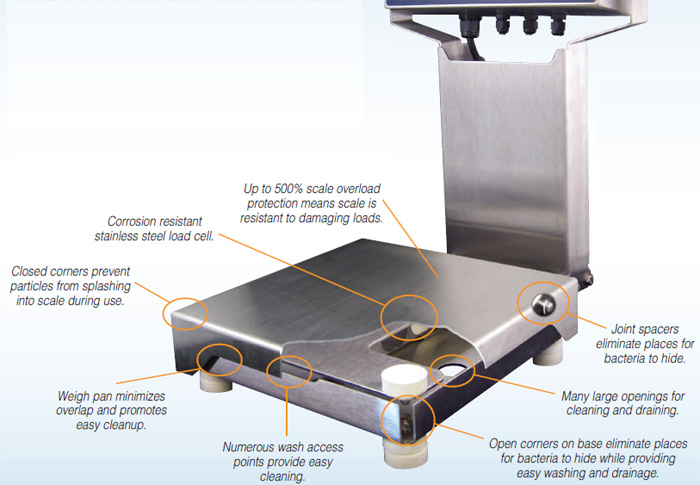

WHAT SETS THE QUICKSILVER PLATFORMS APART
- All surfaces are visible and accessible for cleaning and sanitizing.
- Stainless steel load cell on most models.
- Closed corners on platform cover prevent splash collection of processing materials inside the scale.
- Bushings and spacers used to eliminate lap joints — facilitates quick and easy cleaning and sanitizing.
- Type 304 stainless steel construction.
- No processing material or water collection points.
- Cleaning SOP included in the Operator Manual.
ULTIMATE SANITARY DESIGN
QuickSilver Bench Scale Platforms are designed to be easily cleaned and sanitized. Both the platform and instrument are completely sealed so moisture can never penetrate. All welds are continuous, which prevents processing materials and moisture from accumulating and forming colonization points for harmful bacteria like Listeria Monocytogenes, Salmonella and E. coli. Fairbanks Scales is the only scale manufacturer utilizing the American Meat Institute’s Sanitary Design Checklist.
Adhering to the AMI’s strict standards ensures that Fairbanks Sanitary Bench Scales are safe for use in RTE areas and other production applications
Specifications
| Models |
93801 |
93802 |
93803 |
93804 |
93805 |
93806 |
93807 |
93808 |
93809 |
93810 |
| Price |
$1,281.60
|
$1,281.60
|
$1,281.60
|
$1,472.40
|
$1,472.40
|
$1,472.40
|
$1,645.20
|
$1,645.20
|
$1,731.60
|
$1,731.60
|
| Capacity x Readability |
2 x 0.0005 lb
1 x 0.0002 kg |
6 x 0.001 ld
2 x 0.0005 kg |
10 x 0.001 lb
4 x 0.0005 kg |
25 x 0.002 lb
11 x 0.002 kg |
30 x 0.005 lb
13 x 0.002 kg |
50 x 0.005 lb
22 x 0.005 kg |
50 x 0.005 lb
22 x 0.005 kg |
100 x 0.01 lb
45 x 0.005 kg |
150 x 0.02 lb
68 x 0.02 kg |
300 x 0.05 lb
136 x 0.02 kg |
| Legal for Trade |
- |
NTEP CC #94-100, MC #AM-5107, #AM-5279 and #AM-5573 |
Legal for Trade
Capacity x Readability |
- |
6 x 0.002 lb
2 x 0.001 kg |
10 x 0.002 lb
4 x 0.001 kg |
25 x 0.005 lb
11 x 0.002 kg |
30 x 0.01 lb
13 x 0.005 kg |
50 x 0.01 lb
22 x 0.005 kg |
50 x 0.01 lb
22 x 0.005 kg |
100 x 0.02 lb
45 x 0.01 kg |
150 x 0.05 lb
68 x 0.02 kg |
300 x 0.1 lb
136 x 0.05 kg |

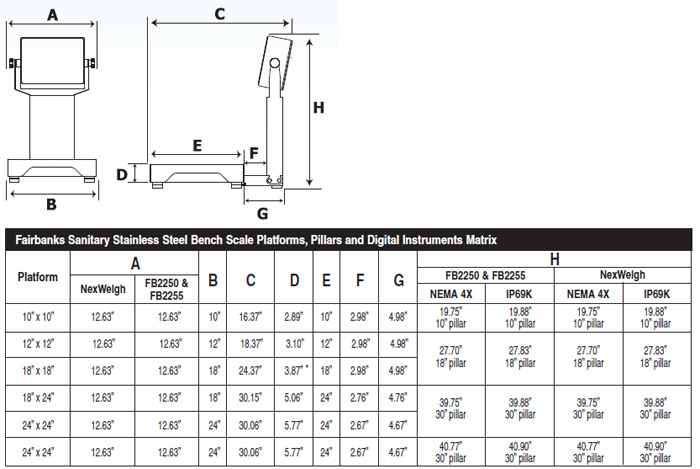

| Size (Inch) |
10 x 10 |
10 x 10 |
10 x 10 |
10 x 10 |
12 x 12 |
12 x 12 |
18 x 18 |
18 x 18 |
18 x 18 |
18 x 18 |
| Platform type |
304 stainless steel |
| Units |
lb, kg, oz g, lb-oz or custom |
| Resolution |
5,000 divisions |
| Output |
COM1: RS232, COM2: RS485 or Optional COM1: Ethernet TCPIP, COM2: RS485 |
| Overload |
Up to 500% of scale capacity |
| Keys |
Zero, Print, Units, Tare, B/G Net, Checkweigh, Program, OverUnder 1-4 programable |
| Configurations |
Platform, platform with remote instrument, platform with pillar and instrument |
| Approvals |
NTEP CC #94-100, MC #AM-5107, #AM-5279 and #AM-5573, Factory Mutual approved load cell |
|
