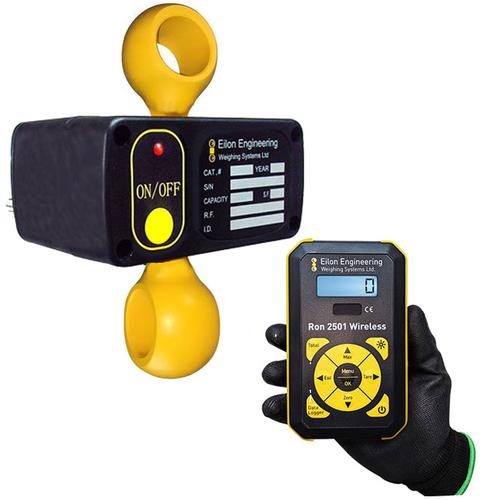

Eilon Engineering Ron 2501 Wireless Dynamometer

Ron 2501 Dynamometers shackles not included

Have Questions? or email Us Our Staff will be glad to help

The Ron 2501 is an exceptionally small, light and advanced wireless dynamometer with long range and built in transmission verification mechanism. Special perpendicular design neutralizes bending of the load cell, increasing accuracy and safety.

Featuring fatigue rated load cells with high accuracy (0.1% of full scale), the small dimensions of this wireless dynamometer ensure low headroom loss and portability. The Ron 2501 wireless dynamometer features an exceptionally long battery life: up to 2000 hours or 4000 hours (with added option) on AA disposable batteries. Ron 2501 wireless load cells can be purchased as part of a multi-point system capable of collecting measurement from up to 200 load cells.

Ron Crane Scales and dynamometers are made of high quality aerospace steel and electronics are installed dampening mounts, for increased durability, making the Ron 2501 suitable for harsh environment applications. Ron 2501 is available with advanced options for communication with additional display as well as logging and downloading of measurements. For the last 40 years Eilon Engineering has been among the leading manufacturers for the global load monitoring market.

• Shackles sold separately
• Warranty: 5 year
• Portable: Lightweight and small. Available with Pelican™ carrying case.
• Highly Accurate: + 0.1% of full range - important for early overload detection.
• Resitant: IP67 Offshore protection for load cell
• Long transmission Range: Up to 150m/yds. Up to 3.2 Km / 2 Miles upon request (outdoor, line of sight)
• Excellent battery life: Up to 2000 Hours (2x AA batteries). Optional 4000h
• Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
• Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
• Robust: Heavy duty designs with shock absorbing mechanisms.

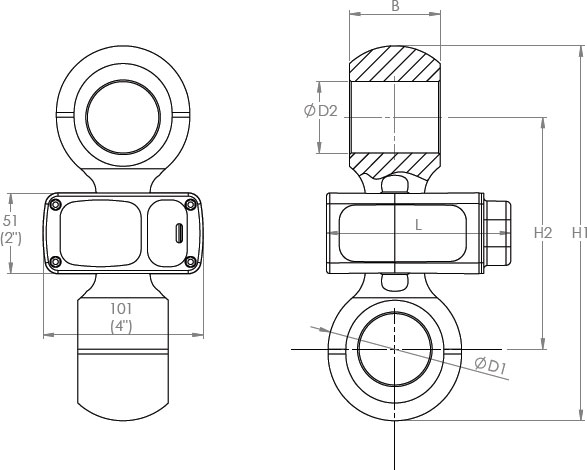

• Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
• Minimal Headroom loss: Smallest on the market - important for indoor applications.
• Multi-point: Up to 200 different load cells controlled by a single receiver and all measurements are presented on one screen as a real time load map
• Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.

unit of measurement
• M. TON (Metric Tons)
• S. TON (Short Tons, American tons, 2000 Lbs)
• LBS
• K.NTON (Kilo Newton)
• DECA.N (Deca Newton)
• N.WTON (Newton)
• KG
