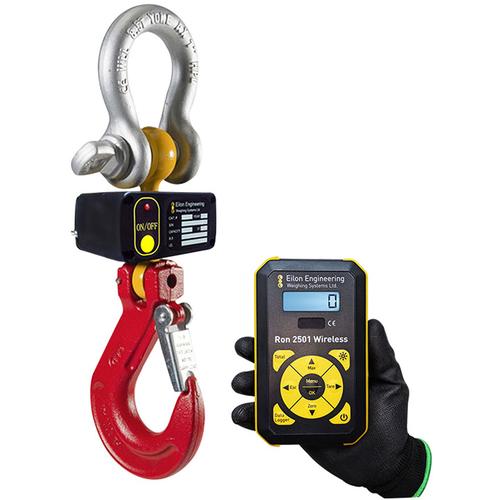

Ron 2501-H Crane Scales
shackle and hook are included
|
Have Questions?
Our Staff will be glad to help |
|
|
The Ron 2501 wireless crane scale features an exceptionally long battery life: up to 2000 hours or 4000 hours (with added option) on AA disposable batteries. Ron 2501 wireless crane scales can be purchased as part of a multi-point system capable of collecting measurement from up to 200 load cells. Ron Crane Scales and dynamometers are made of high quality aerospace steel and electronics are installed dampening mounts, for increased durability, making the Ron 2501 suitable for harsh environment applications. Ron 2501H is available with advanced options for communication with additional display as well as logging and downloading of measurements. For the last 40 years Eilon Engineering has been among the leading manufacturers for the global load monitoring market.
- Warranty: 5 years
- Portable: Lightweight and small.
- Highly Accurate: + 0.1% of full range - important for early overload detection.
- Resitant: IP67 Offshore protection for load cell
- Long transmission Range: Up to 150m/yds. Up to 3.2 Km / 2 Miles upon request (outdoor, line of sight)
- Excellent battery life: Up to 2000 Hours (2x AA batteries). Optional 4000h
- Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
- Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
- Robust: Heavy duty designs with shock absorbing mechanisms.
- Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
- Minimal Headroom loss: Smallest on the market - important for indoor applications.
- Multi-point: Up to 200 different load cells controlled by a single receiver and all measurements are presented on one screen as a real time load map
- Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
- Short delivery time: In most cases 48-72 hours.
- More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.
- Safety factor: Load cell body - 5:1. Hook - at least 4:1
- Accuracy: 0.1% of full range.
- Transmission Range: Up to 150m/yds. Up to 3.2 Km / 2 Miles upon request (outdoor, line of sight).
- Calibration: User calibration. Initial factory calibration, fully traceable (certified).
- Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
- Proof Load: Each system proof-loaded to 200% of capacity (certified)
- Display: 6 digits, 1/2" (12mm) liquid crystal display. Overload warnings (100%/130%), low battery indication, Gross/Net. Refresh rate 1Hz.
- Sampling Rate: 200 per second.
- Functions: Zero, Tare, Battery level indication, Low battery warning, Max. (peak hold), User calibration.
- Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
- Indicator/Load Cell Housing: High quality ABS.
-
Temperature Range:
Load cell: -15oF to +175oF (-25oC to +80oC)
Indicator: -4oF to +158oF (-20oC to +70oC)
-
Environmental:
Load Cell: IP67
Indicator: IP65
OPTIONS - Please Call 718-336-5900 for more Info
- Optional Backlight
- Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
- Additional 1"/25mm LCD display with cable connection to indicator or wireless
- Additional 2"/50mm LCD display with cable connection to indicator or wireless
- Additional 5"/125mm LED display with cable connection to indicator or wireless
- Battery life: Extended battery life of up to 4000 hours
- Dampened display for unstable loads
- Automatic/Manual Data Logger - Up to 50,000 measurements
- Multi-cell: Up to 8 different load cells controlled by a single indicator.
- Multiple load monitoring: up to 200 load cells, please see Ron StageMaster
- Number of measurements per second: 1, 2, 3, factory set
- Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
- Robust, extruded aluminum, hand-held indicator instead of ABS (1"/25mm or 2"/50mm digits)
- Rechargeable batteries with an external charger.
- RS-232 - continuous or on demand data output, user-selectable
- RS-485 - continuous or on demand data output, user-selectable
- Totalizer
- Totalizer with Data Logging
- USB
High Temperature Options: - Please Call 718-336-5900 for more Info
- Heat shield for the load cell
- Internal load cell thermometer for load cell temperature display on the hand-held indicator
- Optional Backlight
- Dampened display for unstable loads
|
|
| Model |
Image |
Capacity in Metric Tons |
Capacity x Readability |
Type |
Weight |
|
| Ron2501H005 |
 |
0.5t |
1000 x 0.5 lb |
Wireless |
13.2 LB |
$2,807.95
|
| Ron2501H01 |
|
1t |
2000 x 1 lb |
Wireless |
13.2 LB |
$2,820.41
|
| Ron2501H012 |
|
1.25t |
2500 x 1 lb |
Wireless |
13.2 LB |
$2,831.98
|
| Ron2501H016 |
|
1.6t |
3200 x 2 lb |
Wireless |
13.2 LB |
$2,843.55
|
| Ron2501H02 |
|
2t |
4000 x 2 lb |
Wireless |
13.2 LB |
$2,856.01
|
| Ron2501H025 |
|
2.5t |
5000 x 2 lb |
Wireless |
13.2 LB |
$2,867.58
|
| Ron2501H03 |
|
3t |
6000 x 2 lb |
Wireless |
13.2 LB |
$2,880.04
|
| Ron2501H0315 |
|
3.15t |
6300 x 5 lb |
Wireless |
13.2 LB |
$2,891.61
|
| Ron2501H05 |
|
5t |
10000 x 5 lb |
Wireless |
15.4 LB |
$2,983.28
|
| Ron2501H10 |
|
10t |
20000 x 10 lb |
Wireless |
37.4 LB |
$3,166.62
|
| Ron2501H12 |
|
12.5t |
25000 x 10 lb |
Wireless |
37.4 LB |
$3,184.42
|
| Ron2501H15 |
|
15t |
30000 x 10 lb |
Wireless |
55 LB |
$3,274.31
|
| Ron2501H20 |
|
20t |
40000 x 20 lb |
Wireless |
55 LB |
$3,803.86
|
| Ron2501H25 |
|
25t |
50000 x 20 lb |
Wireless |
140.8 LB |
$4,977.77
|
| Ron2501H30 |
|
30t |
60000 x 20 lb |
Wireless |
140.8 LB |
$5,327.54
|
| Ron2501H315 |
|
31.5t |
63000 x 20 lb |
Wireless |
140.8 LB |
$5,453.92
|

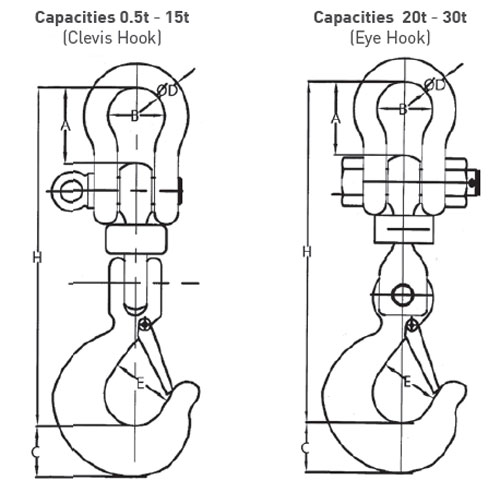

| Model |
A |
B |
C |
D |
E |
H |
| Ron2501H005 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2501H01 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2501H012 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2501H016 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2501H02 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2501H03 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2501H032 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2501S15 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2501H05 |
2 in / 50 mm |
1.7 in / 43 mm |
1.4 in / 34 mm |
0.6 in / 16 mm |
1.6 in / 41 mm |
13.2 in / 334 mm |
| Ron2501H10 |
3.2 in / 82 mm |
2.7 in / 68 mm |
2.3 in / 58 mm |
1 in / 25 mm |
2.2 in / 56 mm |
13.2 in / 440 mm |
| Ron2501H12 |
3.2 in / 82 mm |
2.7 in / 68 mm |
2.3 in / 58 mm |
1 in / 25 mm |
2.2 in / 56 mm |
13.2 in / 440 mm |
| Ron2501H15 |
4.1 in / 104 mm |
3.2 in / 82 mm |
2.5 in / 64 mm |
1.3 in / 33 mm |
2.2 in / 57 mm |
20 in / 508 mm |
| Ron2501H20 |
4.1 in / 137 mm |
4.3 in / 111 mm |
3.1 in / 79 mm |
3.1 in / 41 mm |
2.8 in / 71 mm |
24.5 in / 621 mm |
| Ron2501H25 |
6.6 in / 169 mm |
5.7 in / 146 mm |
3.9 in / 99 mm |
2 in / 51 mm |
3.4 in / 86 mm |
29.3 in / 744 mm |
| Ron2501H30 |
6.6 in / 169 mm |
5.7 in / 146 mm |
3.9 in / 99 mm |
2 in / 51 mm |
3.4 in / 86 mm |
29.3 in / 744 mm |
|
