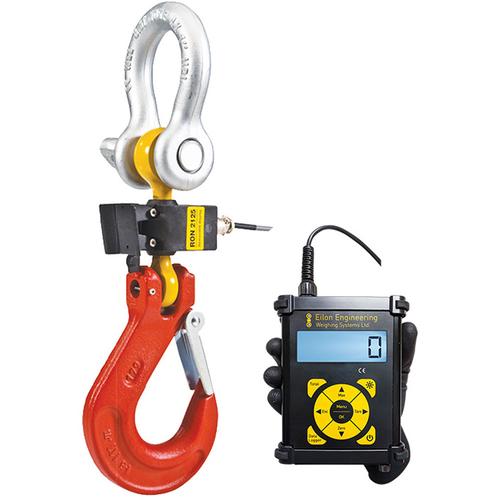

Ron 2125-H Crane Scales
shackle and hook are included
|
Have Questions?
Our Staff will be glad to help |
|
|
Ron 2125 Wired Crane Scale with 1"/25mm Attachable Display Robust aluminum indicator with backlit 1”/25mm display Ron 2125 is a high accuracy (0.1% of full scale) crane scale designed for use in heavy industries. Display can be attached to the load cell for convenience (up 12.5t capacities) Often used in offshore, wind turbines maintenance and other heavy industries. 90 degree design reduces bending for increased accuracy and safety. Up to 2000 hours of battery life. Fatigue rated load cells produced from aerospace steel for safety and long working life. Internal dampening mounts for protecting electronics from external shock. Additional options for data logging, additional displays, serial data output and more. 40 years of measuring excellence
- Warranty: 5 years
- Portable: Lightweight and small.
- Highly Accurate: + 0.1% of full range - important for early overload detection.
- Readable: Larger digits and backlit display
- Flexible: Indicator can be hand-held or attached to load cell (up 12.5t)
- Excellent battery life: Up to 2000 Hours (3x AA batteries)
- Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
- Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
- Robust: Heavy duty designs with shock absorbing mechanisms.
- Minimal Headroom loss: Smallest on the market - important for indoor applications.
- Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
- Short delivery time: In most cases 48-72 hours
- More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.
- Safety factor: Load cell body - 5:1. Hook - at least 4:1
- Accuracy: 0.1% of full range.
- Calibration: User calibration. Initial factory calibration, fully traceable (certified).
- Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
- Proof Load: Each system proof-loaded to 200% of capacity (certified)
- Display: 6 digits, 1" (25mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.
- Cable: 15” / 5m cable.
- Sampling Rate: 200 per second.
- Functions: Zero. Tare. Battery charge level indication. Low battery warning. Max. (peak hold). Sleep mode, wakes automatically when loaded.
- Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
- Housing: Aluminum indicator, ABS load cell.
- Temperature Range:Load cell: -15oF to +175oF (-25oC to +80oC).
Indicator: -4oF to +158oF (-20oC to +70oC).
- Environmental: IP65 (Optional IP67 Load Cell).
OPTIONS - Please Call 718-336-5900 for more Info
- 1 or 2 user-adjustable set points
- Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
- Additional 1"/25mm LCD display with cable connection to indicator or wireless
- Additional 2"/50mm LCD display with cable connection to indicator or wireless
- Additional 5"/125mm LED display with cable connection to indicator or wireless
- Additional extension cable in 15ft/5m increments
- Analog output: 0 to 3V
- Analog output: 4 to 20 mA
- Dampened display for unstable loads
- Automatic/Manual Data Logger - Up to 50,000 measurements
- IP 67 load cell with special offshore capability
- Longer extension cable in 15ft/5m increments
- Number of measurements per second: 1, 2, 3, factory set
- Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
- Rechargeable batteries with an external charger
- RS-232 - continuous or on demand data output, user-selectable
- RS-485 - continuous or on demand data output, user-selectable
- Totalizer
- Totalizer with Data Logging
- USB
|
|
| Model |
Image |
Capacity in Metric Tons |
Capacity x Readability |
Type |
Cable length |
Weight |
|
| Ron2125H005 |
 |
0.5t |
1000 x 0.5 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,350.82
|
| Ron2125H01 |
|
1t |
2000 x 1 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,356.53
|
| Ron2125H012 |
|
1.25t |
2500 x 1 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,362.24
|
| Ron2125H016 |
|
1.6t |
3200 x 2 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,367.00
|
| Ron2125H02 |
|
2t |
4000 x 2 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,371.76
|
| Ron2125H025 |
|
2.5t |
5000 x 2 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,409.83
|
| Ron2125H03 |
|
3t |
6000 x 2 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,441.24
|
| Ron2125H032 |
|
3.2t |
6400 x 5 lb |
Wired |
16 ft / 5 m |
13.2 LB |
$2,460.27
|
| Ron2125H05 |
|
5t |
10000 x 5 lb |
Wired |
16 ft / 5 m |
15.4 LB |
$2,623.97
|
| Ron2125H10 |
|
10t |
20000 x 10 lb |
Wired |
16 ft / 5 m |
37.4 LB |
$2,779.11
|
| Ron2125H12 |
|
12.5t |
25000 x 10 lb |
Wired |
16 ft / 5 m |
37.4 LB |
$2,931.39
|
| Ron2125H15 |
|
15t |
30000 x 10 lb |
Wired |
16 ft / 5 m |
55 LB |
$2,988.50
|
| Ron2125H20 |
|
20t |
40000 x 20 lb |
Wired |
16 ft / 5 m |
55 LB |
$3,511.96
|
| Ron2125H25 |
|
25t |
50000 x 20 lb |
Wired |
16 ft / 5 m |
140.8 LB |
$4,301.91
|
| Ron2125H30 |
|
30t |
60000 x 20 lb |
Wired |
16 ft / 5 m |
140.8 LB |
$4,972.89
|
| Model |
A |
B |
C |
D |
E |
H |
| Ron2125H005 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2125H01 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2125H012 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2125H016 |
1.2 in / 30 mm |
1 in / 26 mm |
1.1 in / 28 mm |
0.4 in / 10 mm |
1 in / 25 mm |
9.3 in / 235 mm |
| Ron2125H02 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2125H03 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2125H032 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2000S15 |
1.6 in / 40 mm |
1.3 in / 33 mm |
1.4 in / 36 mm |
0.5 in / 13 mm |
1.3 in / 34 mm |
11 in / 279 mm |
| Ron2125H05 |
2 in / 50 mm |
1.7 in / 43 mm |
1.4 in / 34 mm |
0.6 in / 16 mm |
1.6 in / 41 mm |
13.2 in / 334 mm |
| Ron2125H10 |
3.2 in / 82 mm |
2.7 in / 68 mm |
2.3 in / 58 mm |
1 in / 25 mm |
2.2 in / 56 mm |
13.2 in / 440 mm |
| Ron2125H12 |
3.2 in / 82 mm |
2.7 in / 68 mm |
2.3 in / 58 mm |
1 in / 25 mm |
2.2 in / 56 mm |
13.2 in / 440 mm |
| Ron2125H15 |
4.1 in / 104 mm |
3.2 in / 82 mm |
2.5 in / 64 mm |
1.3 in / 33 mm |
2.2 in / 57 mm |
20 in / 508 mm |
| Ron2125H20 |
4.1 in / 137 mm |
4.3 in / 111 mm |
3.1 in / 79 mm |
3.1 in / 41 mm |
2.8 in / 71 mm |
24.5 in / 621 mm |
| Ron2125H25 |
6.6 in / 169 mm |
5.7 in / 146 mm |
3.9 in / 99 mm |
2 in / 51 mm |
3.4 in / 86 mm |
29.3 in / 744 mm |
| Ron2125H30 |
6.6 in / 169 mm |
5.7 in / 146 mm |
3.9 in / 99 mm |
2 in / 51 mm |
3.4 in / 86 mm |
29.3 in / 744 mm |
|
