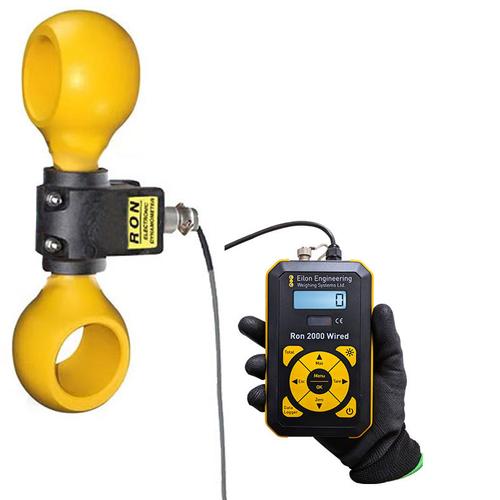

Eilon Engineering Ron 2500 Wired Dynamometer

Ron 2500 Dynamometers shackles not included

Have Questions? or email Us Our Staff will be glad to help

Featuring extremely long battery life , the Ron 2000 can operate up to 2000 hours on AA disposable batteries.

Made from aerospace steel, the Ron 2000 includes fatigue rated load cells for increased safety.

Unique in its design, the Ron 2000 features 90 degrees between shackle holes for increasing safety and accuracy by reducing bending of the load cell.

The Ron 2000 features high accuracy (0.1% of full scale).

Often used in offshore, wind turbines maintenance and other heavy industries.

Its durable and shock absorbing design makes it especially suitable for harsh conditions.

The Ron 2000 is available with advanced options like data loggers, serial/USB outputs or wired/wireless communication with PCs, printers and additional displays.

• warranty: 5 years
• Portable: Lightweight and small. Available with Pelican™ carrying case.
• Highly Accurate: + 0.1% of full range - important for early overload detection.
• Excellent battery life: Up to 2000 Hours (2x AA batteries)
• Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
• Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
• Robust: Heavy duty designs with shock absorbing mechanisms.
• Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
>Minimal Headroom loss: Smallest on the market - important for indoor applications.
• Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
• Short delivery time: In most cases 48-72 hours.
• More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.

• Optional Backlight
• 1 or 2 user-adjustable set points
• Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
• Additional 1"/25mm LCD display with cable connection to indicator or wireless
• Additional 2"/50mm LCD display with cable connection to indicator or wireless
• Additional 5"/125mm LED display with cable connection to indicator or wireless
• Additional extension cable in 15ft/5m increments
• Analog output: 0 to 3V
• Analog output: 4 to 20 mA
• Robust sealed carrying case: Pelican or equivalent.
• Dampened display for unstable load
• Automatic/Manual Data Logger - Up to 50,000 measurements
• IP 67 load cell with special off-shore capability
• Number of measurements per second: 1, 2, 3, factory set
• Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
• Rechargeable batteries with external charger
• Rope falls multiplier, user selectable
• RS-232 - continuous or on demand data output, user-selectable
• RS-485 - continuous or on demand data output, user-selectable
• Totalizer
• Totalizer with Data Logging
• Wireless communication to additional display or PC
• USB
