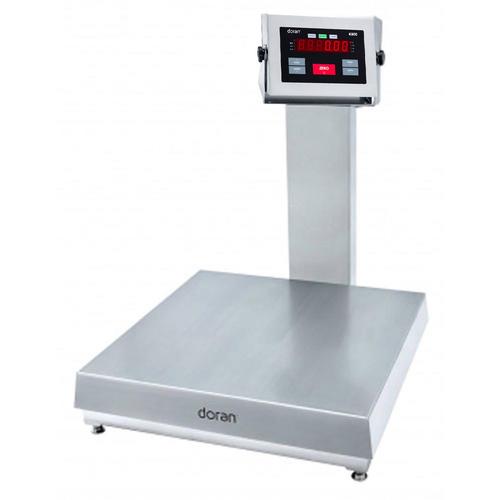

Doran 4300-C20 Legal For Trade Checkweighing Scale

Manufacturers

Doran 4300-C20 Legal For Trade Checkweighing Scale	Authorized Dealer
The Doran Model 4300-C20 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership.
Legal for Trade >> Doran Scales >> Food Service

Doran 4300-C20 Legal For Trade Checkweighing Scale

Have Questions?

email Us

Our Staff will be glad to help


Legal For Trade	Canada Measurement

15 x 15 and 18 x 18 Specifications Chart

18 x 24 and 24 x 24 Specifications Chart

The Doran Model APS4300 is the solution to lowering your scale maintenance costs and downtime! For almost 30 years, Doran Scales has been recognized as the industry leader in providing the most durable and accurate, washdown safe Stainless Steel Scales. Providing legions of satisfied users with the lowest total cost of ownership. Here’s why

Washdown Safe - 304 Stainless Steel construction, and the exclusive, innovative Doran Gasket design meets and exceeds IP69K and NEMA 4X classification for washdown protection. The 4300 Checkweigh Scale will survive and thrive in the most extreme washdown weighing applications

1000% Overload Protection - With the unique “Quad Spring©” base design, Doran Scales has virtually eliminated the most common load cell damage caused by shock and overload damage. Protected to up to 10 times capacity, the 4300 Checkweigh Scale sets the new industry standard - A Doran Exclusive!

Indestructible “Guardian” Touch Panel - Reduced down time and lower maintenance costs even in repeated harsh washdown environments. Four times thicker than the competition, this super rugged touch panel resists moisture and puncture damage better than any other scale.

Easy Operation - Simple to use with minimal operator training. Set Over/Under tolerances right from the front panel using the Up/Down arrow buttons. Checkweigh to zero or actual weight with 3 or 5 zone checkweighing operations.

Powerful New Excel Design

Communications Interface
- Programmable, Bi-directional RS-232 interface
- Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output, all Field Installable Options.
Optional Setpoints
- Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
Advanced Features
- Grading Scale and Peak & Hold - Standard
- Internal Rechargeable Battery Option
- Dimension setup and optional Excelerator data collection Windows software.

Doran APS4300
Legal for Trade Checkweighing Scale
Price From:

Options Must be added with scale

(Some Factory Installed)

POWER OPTIONS POWER OPTIONS
	Doran EXOPT308 Internal Rechargeable Battery Providing up to 60 hours of continuous use, add $104.50

COMMUNICATIONS & DATA OUTPUT OPTIONS
	Doran EXOPT300 Bluetooth Internal Communications & USB Adapter, add $209.00
	Doran EXOPT301 Internal Bluetooth Communications Only, add $142.50
	Doran EXOPT302 Ethernet Wired, add $65.00
	Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit, add $65.00
	Doran EXOPT303 Ethernet - Wireless 802.11b/g, add $375.25
	Doran EXOPT304 USB Communications, add $185.25
	Doran EXOPT305 USB Waterproof Cable, 10 Feet Long (IP67 Rated), add $85.50
	Doran WCB0261 USB Internal Cable for Wired Ethernet (EXOPT302), Wifi (EXOPT303) and Bluetooth (EXOPT301) options, add $30.00
	Doran EXOPT311 USB Bulkhead Connector for WiFi and Wired Ethernet Options, add $99.75
	Doran EXOPT306 4-20mA Analog Output (Active Only) Option, add $185.25

COLUMN OPTION
	Doran EXOPT134 Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column, add $157.50

SCALE VEIL
	Doran SUB0852 Clear protective scale veil (Pack of 3), add $42.00

SERIAL DATA COMMUNICATIONS OPTIONS
	Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D, add $71.25
	Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D, add $71.25
RS-232 default settings are 9600 baud, 8 bits, no parity, and one stop bit.

LOAD CELL OPTIONS
	Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base, add $265.50
	Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base, add $265.50
	Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base, add $265.50
	Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18, 18 x 24, or 24 x 24 Base, add $495.00
Stainless steel load cell options are not recommended for 10,000d resolution. Cannot be used in Legal for Trade applications. CC is scale capacity in LB. This applies to entire Load Cell options section

SERIAL DATA COMMUNICATIONS OPTIONS
	Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D, add $71.25
	Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D, add $71.25
RS-232 default settings are 9600 baud, 8 bits, no parity, and one stop bit.

PRINTER OPTIONS
	Doran LR350 Label Printer (PRT0350-C), add $540.00
	Doran CUSTOM-LABEL Custom Label Formatting, add $204.25
	Doran PRT0351-C Impact Printer Paper tape printer includes scale to printer cable., add $540.00

CALIBRATION OPTIONS
	Doran EXOPT310-BB-CCLB Super Precision Calibration, add $45.00

DATA COLLECTION AND MANAGEMENT SOFTWARE
This scale is compatible with the following software. See the Weighing Systems section for more details.
	Doran SFT0001 CheckWay PC Software, add $715.50
	Doran SFT0017 Dimension Indicator Configuration Software, add $45.00

EXTRA HOLE
	Doran EXOPT316 Drill Extra Hole in Backplate, add $135.00

REMOTE SWITCH OPTIONS
	Doran EXOPT115 Remote Switch Configured for remote ZERO, add $81.00
	Doran EXOPT116 Remote Switch Configured for remote PRINT, add $81.00
	Doran EXOPT117 Remote Switch Configured for remote UNITS, add $81.00
All switches include a 10 ft. cable. Dimensions of standard switch are 3-1/2" x 2-5/8" x 1". Washdown available on quote.

QUICK DISCONNECT OPTIONS
	Doran EXOPT140 Load Cell Cable Quick Disconnect - Bulkhead Mount (IP68 Rated), add $88.20
	Doran EXOPT141 Remote Switch Quick Disconnect - Bulkhead Mount (IP68 Rated), add $93.10
	Doran EXOPT172 Serial Cable (DB9 - Female) Quick Disconnect - Bulkhead Mount (IP68 Rated) , add $93.10
	Doran EXOPT174 Serial Cable (DB9 - Male) Quick Disconnect - Bulkhead Mount (IP68 Rated), add $93.10
Quick disconnect options are not field installable

AUDIBLE ALARM OPTIONS - INTERNAL
1, 2, or 3 audible alarms for “Over”, “Accept”, or “Under”, varying tones and volume control - specify tone at time of order (3 maximum). Alarms are rated NEMA 4X.
	Doran EXOPT312 Internal Audible Alarm Option Accept - Chime, add $0.00
	Doran EXOPT313 Internal Audible Alarm Option Over - Continuous, add $139.50
	Doran EXOPT314 Internal Audible Alarm Option Under - Warble, add $139.50
- This option CAN NOT be ordered with Internal Rechargeable Battery option. - Audible Alarm Options are NOT field-installable, call factory for more details

LIGHT TOWER BASES
	Doran EXOPT320 Light Tower Pole Mount Base, add $207.00
	Doran EXOPT321 Light Tower Backplate Mount Base, add $207.00
This option CAN NOT be ordered with Internal Rechargeable Battery option

LIGHT MODULES
	Doran EXOPT192 - Red Light Modules (Over), add $261.00
	Doran EXOPT193 - Green Light Modules (Accept), add $243.00
	Doran EXOPT194 - Yellow Light Modules (Under), add $243.00

Indicator

Built in America
Checkweigh with 3 or 5 zone checkweighing operations
Optional audible alarms
304 stainless steel construction
IP69K washdown protection
Bright red, 0.8" tall 6 digit LED display
Units of measure: lb, kg, oz, g, or lb:oz
Legal for trade in US and Canada
Dimension configuration software

Scale Base

304 stainless steel construction
Quad-Spring base design provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15"
Six-point overload protection in bases 18" x 18" and larger provides 300% overload protection
Available in multiple configuration options

Model		4350/15-C20 (APS4350/15)	43100/15-C20 (APS43100/15)	43200/15-C20 (APS43200/15)	43100/18S-C20 (APS43100/18S)	43250/18S-C20 (APS43250/18S)	43500/18S-C20 (APS43500/18S)
Model		$1,872.00	$1,872.00	$1,872.00	$2,119.50	$2,119.50	$2,119.50
Capacity x Readability	lb	50 x 0.01	100 x 0.02	200 x 0.05	100 x 0.02	250 x 0.05	500 x 0.1
	kg	22.7 kg x 5g	45 kg x 10g	91 kg x 20g	45 kg x 10g	113 kg x 20g	227 kg x 50g
	oz	800 x 0.2 oz	1600 x 0.5 oz	3200 x 1 oz	1600 x 0.5 oz	4000 x 1 oz	8000 x 2 oz
Platter Size		15" x 15"			18" x 18"
Legal for Trade		Indicator: CC# 97-038A1 NTEP Class III Base: CC# 97-097A1 NTEP Class III			Indicator: CC# 97-038A1 NTEP Class III Base: CC# 13-110 NTEP Class III
Legal for Trade		Indicator: CC# AM-5201 Canada Class III Base:CC# 97-097A1 Canada Class III			Indicator: CC# AM-5201 Canada Class III Base:CC# 13-110 Canada Class III
NTEP Resolution		5000d	5000d	5000d	5000d	5000d	5000d
Outputs		Bi-directional RS-232 Serial Port. Eight Digital Outputs
Column		20 inch
Washdown		NEMA4 x
Display		6 Digit, red LED, 0.56" High
Controls:		ZERO, UNITS, PRINT, OVER, and UNDER
Indicators		lb, kg, g, oz, ZERO, MOT, NEG, OVER, UNDER, and ACCEPT
Units		lb, kg, g, oz, or lb:oz
Power		115 VAC (230 VAC Optional);EMI/ESD protected Internal Rechargeable Battery (Optional
Construction		304 Stainless Steel
Warranty		Two Year Parts & Labor

Model		43250/1824-C20 (APS43250/1824)	43500/1824-C20 (APS43500/1824)	43250/2424-C20 (APS43250/2424)	43500/2424-C20 (APS43500/2424)	431000/2424-C20 (APS431000/2424)
Model		$2,119.50	$2,119.50	$2,551.50	$2,551.50	$2,551.50
Capacity x Readability	lb	250 x 0.05	500 x 0.1	250 x 0.05	500 x 0.1	1000 x 0.2
	kg	113 kg x 20g	227 kg x 50g	113 kg x 20g	227 kg x 50g	454 kg x 100g
	oz	4000 x 1 oz	8000 x 2 oz	4000 x 1 oz	8000 x 2 oz	16000 x 5 oz
Platter Size		18" x 24"		24" x 24"
Legal for Trade		Indicator: CC# 97-038A1 NTEP Class III Base: CC# 13-110 NTEP Class III
Legal for Trade		Indicator: CC# AM-5201 Canada Class III Base: CC# 13-110 Canada Class III
NTEP Resolution		5000d	5000d	5000d	5000d	5000d
Outputs		Bi-directional RS-232 Serial Port. Eight Digital Outputs
Column		20 inch
Washdown		NEMA4 x
Display		6 Digit, red LED, 0.56" High
Controls:		ZERO, UNITS, PRINT, OVER, and UNDER
Indicators		lb, kg, g, oz, ZERO, MOT, NEG, OVER, UNDER, and ACCEPT
Units		lb, kg, g, oz, or lb:oz
Power		115 VAC (230 VAC Optional);EMI/ESD protected Internal Rechargeable Battery (Optional
Construction		304 Stainless Steel
Warranty		Two Year Parts & Labor
