Doran 7400-PFS Legal For Trade Portable Checkweighing Scale Adam Equipment
Authorized Dealer
Doran Excel Series Model 7400-PFS Scale gives you all this and more! Designed to replace the highly successful Doran 4100XL and 7000 Series Scales, the Doran 7400 has all the features of both scales along with new Excel Series upgrades. The 7400 combines the simplicity of the 7000 with 4100XL checkweigh functions.
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Legal For Trade Canada Measurement

Specifications Chart

Doran?s Excel Series Model 7400-PFS Scale gives you all this and more! Designed to replace the highly successful Doran 4100XL and 7000 Series Scales, the Doran 7400 has all the features of both scales along with new Excel Series upgrades. The 7400 combines the simplicity of the 7000 with 4100XL checkweigh functions.

Washdown Safe Construction Superior washdown protection has been engineered into the Model 7400 Digital Scale Series. From the heavy guage stainless steel to the innovative gasket design, this scale meets the NEMA4X and IP69K classification for washdown protection.


Single Pushbutton Operation Simple, one button operation - what could be easier? Press Zero and the bright red LED display shows 0.00.

Big, Bright Checkweigh Indicators Over-Accept-Under indicators can be used to check to see if the product being weighed meets a target weight.

Rugged and Reliable Our engineers designed the 7400-PFS to survive the harshest industrial environments with maximum reliability. The gasketed four screw case, the stainless steel Zero button and a watertight LEXAN® lens help achieve that goal.

1000% Overload Base No...that's not a typo! Our unique "Quad-Spring" design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran. Take a "peek under the hood" to see what's inside our DXL scale base.

Powerful Excel Features & Options Take the 7400 to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options include Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.

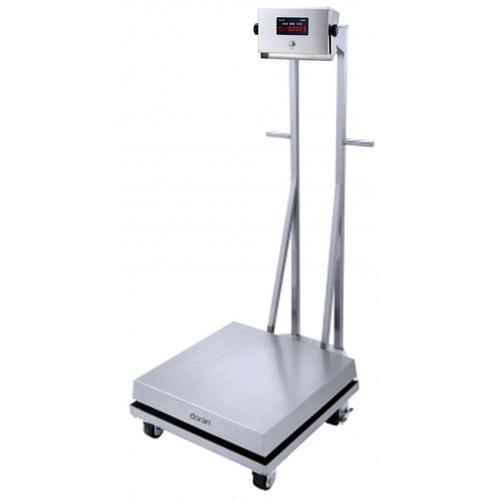

Doran 7400-PFS
Legal for Trade Checkweighing
Portable Scale

Price From:



Options Must be added with scale

(Some Factory Installed)

CALIBRATION OPTIONS
Doran EXOPT310-BB-CCLB  Super Precision Calibration
Doran EXOPT310-BB-CCLB Super Precision Calibration, add $45.00
COLUMN AND BRACKET OPTIONS
Doran EXOPT134 Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column
Doran EXOPT134 Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column, add $157.50
LOAD CELL OPTIONS
Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base
Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base, add $265.50
Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base
Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base, add $265.50
Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base
Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base, add $265.50
Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18,  18 x 24, or 24 x 24 Base
Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18, 18 x 24, or 24 x 24 Base, add $495.00
Stainless steel load cell options are not recommended for 10,000d resolution. CC is scale capacity in LB. This applies to entire Load Cell options section.
CALIBRATION OPTIONS
Doran EXOPT310-BB-CCLB  Super Precision Calibration
Doran EXOPT310-BB-CCLB Super Precision Calibration, add $45.00
UNIT SWITCH OPTION
Doran EXOPT181 Optional Front Panel Mounted Units Switch
Doran EXOPT181 Optional Front Panel Mounted Units Switch, add $175.50

Model 74250-PFS 74500-PFS 741000-PFS
Doran 74250-PFS Checkweighing Legal for Trade 24 x 24 Checkweighing Portable Scale 250 x 0.05 lb
$4,023.00
Doran 74500-PFS Checkweighing Legal for Trade 24 x 24 Checkweighing Portable Scale 500 x 0.1 lb
$4,023.00
Doran 741000-PFS Checkweighing Legal for Trade 24 x 24 Checkweighing Portable Scale1000 x 0.2 lb
$4,023.00
Capacity x Readability lb 250 x 0.05 500 x 0.1 1000 x 0.2
kg 113 x 20g 227 x 50g 454 x 100g
oz 4000 x 11 8000 x 2 16000 x 5
Platter Size 24" x 24"
Column Height 36"
Legal for Trade Indicator: CC# 99-129A4 NTEP Class III
Base: CC# 97-097A1 NTEP Class III
Legal for Trade Measurement Canada
NTEP Resolution 5000d 5000d 5000d
Outputs
  • Programmable, Bi-directional RS-232 interface
  • Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (wired or Wireless - 802.11b), User definable data output
IP Rating IP69K
Optional Setpoints Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
Display 6 digit red LED 0.56" High
Indicators lb, kg, g, oz, OVER, ACCEPT, UNDER, NEG, ZERO, & MOT
Units lb, kg, g, oz, or lb:oz
Power 115 VAC (230 VAC Optional);EMI/ESD protected
Construction Meter - 304 Stainless Steel -- Scale Base - 304 Stainless Steel (7 Gauge Maximum)
Warranty Two Year Parts & Labor
* Not Legal for Trade
