Doran 2200CW-ABR Legal For Trade CheckWeighing Scale With Attachment Bracket
Authorized Dealer
Why settle for less - when you can have it all with Doran new 2200CW-ABR Checkweigher! With a built-in 250 product database, versatile communications, powerful control options, and outstanding PC support software, the 2200CW has it all in a simple to use, technologically advanced and extremely rugged package.

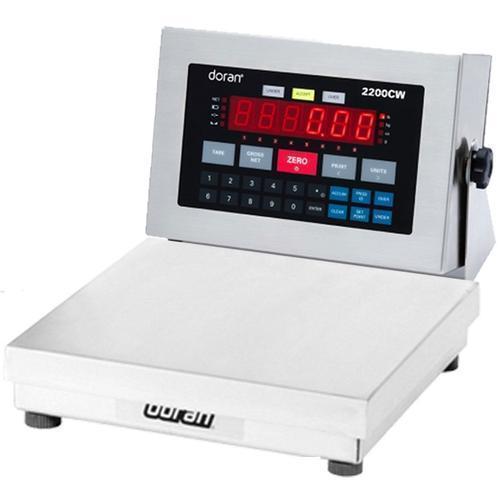

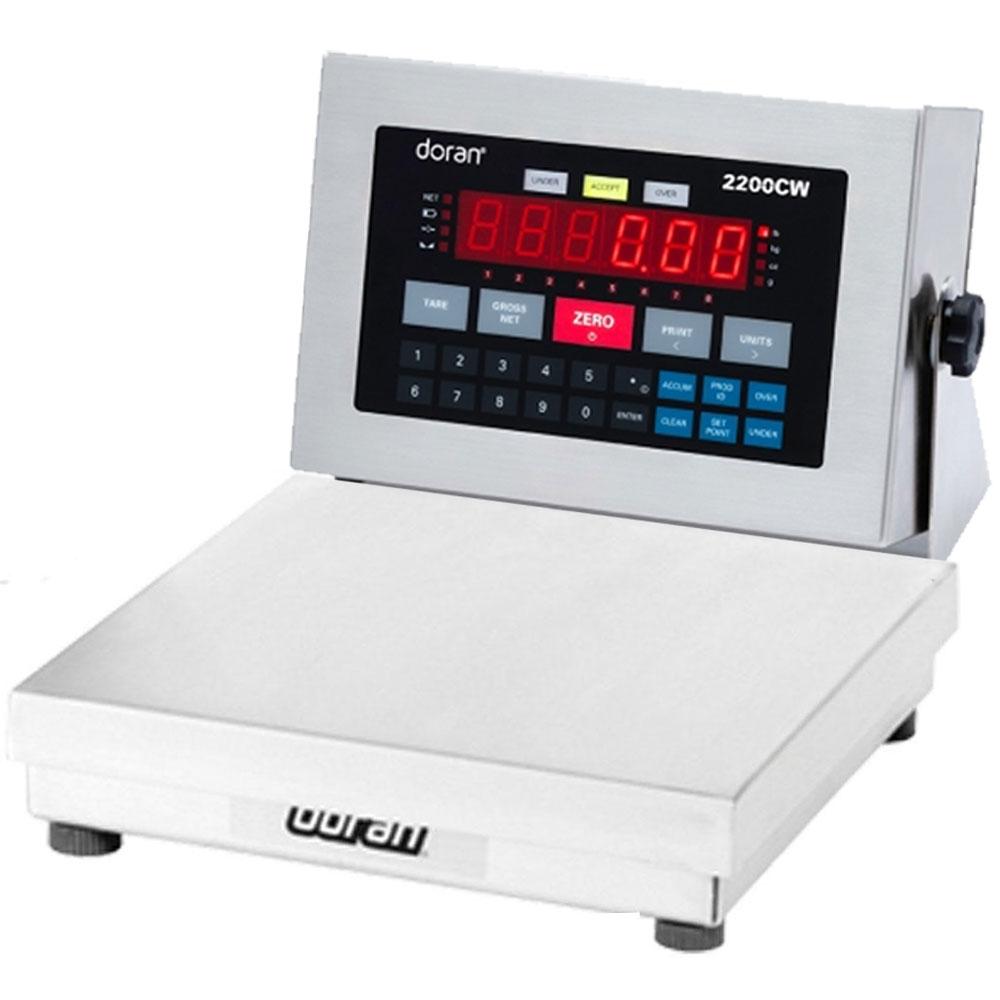

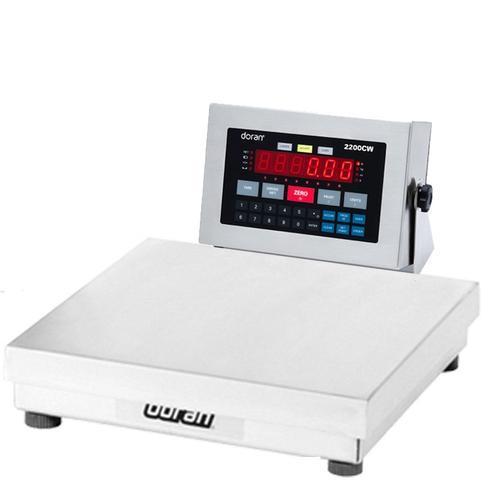

2200CW Series Checkweigher Bench Scale
The 2200CW Series Bench Scale is an advanced high-performance checkweigher that combines a 2200CW advanced weighing indicator with a rugged Doran scale base and shown with optional column. The system features stainless steel construction and washdown protection ? with components that are Built in the USA.
A large selection of base sizes and capacities, battery power option, scanners, and communications and networking equipment, and other accessories make this versatile indicator a smart choice for a range of weighing applications.
Three and five band checkweighing guides the operator to accurately hit product targets quickly. Manufacturers can realize ingredient savings, improve quality control, achieve greater accountability, and support traceability goals
Key performance features include:
800 Product Memory: Quickly recall products from the scale database. Product memory includes checkweigh limits, unit of measure, accumulator and counter values, tare, two data fields, checkweigh operation, and output configuration.
Doran QC Weigh software available: Configure the 2200CW to follow QC processes, collect data and provide reporting on product weights and accuracy. Record unique operator IDs, scheduled sample intervals with alarms, and data collection to confirm quality control tasks.
Doran Production Sentry software available: Control groups of scales to set the product to be checkweighed, collect data and provide reporting on product weights and accuracy, record operators and determine efficiency by line and operator.
Scale Bases: 304 stainless steel construction with a Quad-Spring shock-absorbing base design that provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15", and provides 300% overload protection in bases 18" x 18" and larger. Doran meets the demand for precision measurements of 0.1 g to multiple load cell applications up to 100,000 lb.
Multiple power options: 100-240 AC, 50/60Hz line power standard for permanent installation, a high-performance internal rechargeable battery option or 6-12 VDC input.
Advanced Communications and Control
Connect, control, and communicate to any device or computer with the two standard RS-232 ports, eight standard outputs, two standard inputs, or a wide range of communication options. Connect with our wired Ethernet, Wireless Ethernet, Bluetooth, USB, 4-20mA.
Control your process with our optional relays that can be mounted inside the enclosure to provide a turnkey solution. Signaling includes audible alarms and light towers.
Communicate with the flexible and user-definable data strings to include tare, product ID, and time and date.
Washdown protection. From the heavy gauge stainless steel to the innovative gasket design, the meets the IP69K classification for washdown protection.
Rugged design: All components of this system act as a defense against the damaging effects of shock, water, abuse, and other environmental factors that can cause costly repairs and production downtime.
Certifications: NTEP
Operational features include:
800 Product ID?s, containing checkweigh limits, unit of measure, accumulator and counter values, tare, two data fields, checkweigh operation, and output configuration
Ethernet, WiFi, Bluetooth 4.0, USB, 4-20mA communication options
Three and Five band checkweighing
Two RS-232 ports
Two remote switch outputs.
Eight outputs
Responsive full numeric keypad that is easy to operate, even when wearing gloves
Units of Measure: scroll to use scale in lb, oz, lb:oz, kg, and g
Use with up to eight 350-ohm load cells, ideal for interface with floor scales or tank and hopper scales
Large 0.8? bright LED display
WinSPC compatible
Precision engineering and built in the USA. We applied our 40 years of engineering experience to meet all the functional and operational needs of our industrial customers ? and designed the 2200CW line of indicators and options to deliver maximum performance at an outstanding value.
Model
2202CW/88-ABR*
2205CW/88-ABR
2210CW/88-ABR
2225CW/88-ABR
2202CW-ABR*
2205CW-ABR
2210CW-ABR
2225CW-ABR
2250CW-ABR
$1,467.00
$1,467.00
$1,467.00
$1,467.00
$1,480.50
$1,480.50
$1,480.50
$1,480.50
$1,480.50
Capacity x Readability
lb
2 x 0.0005
5 x 0.001
10 x 0.002
25 x 0.005
2 x 0.0005
5 x 0.001
10 x 0.002
25 x 0.005
50 x 0.01
kg
0.9 x 0.2g
2.3 x 0.5g
4.5 x 1g
11.3 x 2g
0.9 x 0.2g
2.3 x 0.5g
4.5 x 1g
11.3 x 2g
22.7 x 5g
oz
35 x 0.01
80 x 0.02
160 x 0.05
400 x 0.1
35 x 0.01
80 x 0.02
160 x 0.05
400 x 0.1
800 x 0.2
Platter Size
8" x 8"
10" x 10"
Legal for Trade
NOT Legal for Trade
Indicator: CC# 06-101 NTEP Class III -
Base: CC# 97-097A1 NTEP Class III
NOT Legal for Trade
Indicator: CC# AM-5617 Canada Class III -
Base: CC# AM-5241 Canada Class III
NTEP Resolution
NOT Legal for Trade
5000d
5000d
5000d
NOT Legal for Trade
5000d
5000d
5000d
5000d
Outputs
Two configurable Bi-directional RS-232 Serial Ports.
Eight Digital Outputs
Input
Two programmable inputs
Washdown
NEMA4 x / IP69 rated
Display
6 digit red LED 0.56" High
Controls:
TARE, GROSS/NET, ZERO, PRINT, UNITS, ACCUM, ID, CLEAR, ENTER, SET POINT, Decimal Point, and Numeric Keypad 0-9
