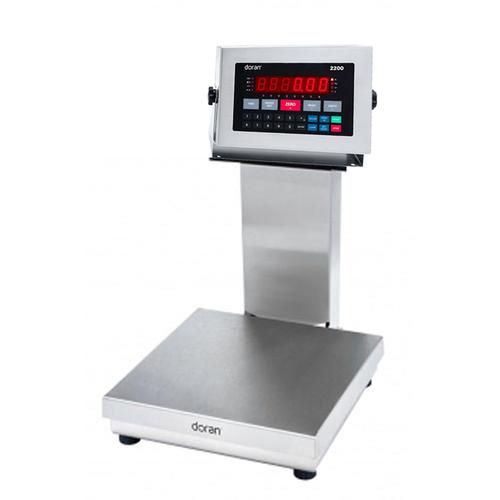

Doran 2200-C14 Legal For Trade Advanced Washdown Bench Scale with 14 inch Column

Adam Equipment
Authorized Dealer
The Model 2200-C14 digital bench scale puts you in complete control of the advanced functions with its intuitive keypad. The easy to use full function keypad allows for simple entry of digital tare, time and date, accumulator, eight product ID's, eight setpoint outpoints and eight grade values. Simply enter the desired value, press one of the clearly labeled function keys and the data is entered, putting the power of Doran's 2200 at your fingertips. An optional barcode reader is available to enter data even faster and more accurately.
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Legal For Trade Canada Measurement

10 x 10 Specifications Chart

12 x 12 and 15 x 15 Specifications Chart

The 2200 combines the legendary Doran quality and durability with the advanced features you demand in your fast paced weighing operations. From the user-friendly keypad to the robust software features, the Model 2200 Advanced Weight Indicator provides leading edge technology for a variety of applications

Full Function Keypad
The Model 2200 digital bench scale puts you in complete control of the advanced functions with its intuitive keypad. The easy to use full function keypad allows for simple entry of digital tare, time and date, accumulator, eight product ID's, eight setpoint outpoints and eight grade values. Simply enter the desired value, press one of the clearly labeled function keys and the data is entered, putting the power of Doran's 2200 at your fingertips. An optional barcode reader is available to enter data even faster and more accurately

Powerful Software Features
Versatile and easy to use, the Model 2200 gives you the power to make the weighing system an integral component of your day to day operation. Standard software features such as programmable data communication, product grading, peak hold, multiple ID numbers, accumulator, and counter, give you the power to effectively manage and monitor your manufacturing process.

Advanced Communications and Control
Connect, control, and communicate to any device or computer with the two standard RS-232 ports, eight standard outputs, two standard inputs, or a wide range of communication options. Connect with our wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485 or Fiber Optic options. Control your process with our optional relays that can be mounted inside the enclosure to provide a turnkey solution. Communicate with the flexible and user definable data strings to include tare, product ID and time and date. Send your custom data to a barcode label printer or download it directly to an Excel spreadsheet using Doran’s optional Excelerator Data Collection Program.

Washdown Safe
Superior washdown protection has been engineered into the Model 2200 Advanced Weight Indicator. From the heavy gauge stainless steel to the innovative gasket design, the 2200 meets the NEMA4X and IP69K classification for washdown protection.

1000% Overload Base
No...that's not a typo! Our unique "Quad-Spring" design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran

Excel Series Features
    Optional Communication Interfaces
  • Programmable, Bi-directional RS-232 interface
  • Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (wired or Wireless - 802.11b), Modbus/TCP, User definable data output
    Optional Relays
  • Up to 4 internal mechanical or solid state relays.
  • Up to 8 external mechanical or solid state relays.
    Advanced Software Features
  • Grading Scale and Peak & Hold - Standard
  • Dimension Setup and Configuration Windows Software
  • User Definable Data Output
  • Excelerator Data Collection Software Compatible
Doran 2000-C14 Advanced
Legal for Trade Washdown Scale
with 14 inch Column
Price From:



Options Must be added with scale

(Some Factory Installed)

POWER OPTIONS
Doran EXOPT319 Internal Rechargeable Battery Providing up to 60 hours of continuous use
Doran EXOPT319 Internal Rechargeable Battery Providing up to 60 hours of continuous use, add $99.00
Doran EXOPT307 External 6-12VDC Power
Doran EXOPT307 External 6-12VDC Power, add $190.00
COMMUNICATIONS & DATA OUTPUT OPTIONS
Doran EXOPT300 Bluetooth Internal Communications & USB Adapter
Doran EXOPT300 Bluetooth Internal Communications & USB Adapter, add $209.00
Doran EXOPT301 Internal Bluetooth Communications Only
Doran EXOPT301 Internal Bluetooth Communications Only, add $142.50
Doran EXOPT302 Ethernet Wired
Doran EXOPT302 Ethernet Wired, add $65.00
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit, add $65.00
Doran EXOPT303 Ethernet - Wireless 802.11b/g
Doran EXOPT303 Ethernet - Wireless 802.11b/g, add $375.25
Doran EXOPT304 USB Communications
Doran EXOPT304 USB Communications, add $185.25
Doran EXOPT305 USB Waterproof Cable, 10 Feet Long (IP67 Rated)
Doran EXOPT305 USB Waterproof Cable, 10 Feet Long (IP67 Rated), add $85.50
Doran WCB0261 USB Internal Cable for Wired Ethernet (EXOPT302), Wifi (EXOPT303) and Bluetooth (EXOPT301) options
Doran WCB0261 USB Internal Cable for Wired Ethernet (EXOPT302), Wifi (EXOPT303) and Bluetooth (EXOPT301) options, add $30.00
Doran EXOPT311 USB Bulkhead Connector for WiFi and Wired Ethernet Options
Doran EXOPT311 USB Bulkhead Connector for WiFi and Wired Ethernet Options, add $99.75
Doran EXOPT306 4-20mA Analog Output (Active Only) Option
Doran EXOPT306 4-20mA Analog Output (Active Only) Option, add $185.25
QUICK DISCONNECT OPTIONS
Doran EXOPT140 Load Cell Cable Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT140 Load Cell Cable Quick Disconnect - Bulkhead Mount (IP68 Rated), add $88.20
Doran EXOPT141 Remote Switch Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT141 Remote Switch Quick Disconnect - Bulkhead Mount (IP68 Rated), add $93.10
Doran EXOPT172  Serial Cable (DB9 - Female) Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT172 Serial Cable (DB9 - Female) Quick Disconnect - Bulkhead Mount (IP68 Rated) , add $93.10
Doran EXOPT174 Serial Cable (DB9 - Male) Quick Disconnect - Bulkhead Mount (IP68 Rated)
Doran EXOPT174 Serial Cable (DB9 - Male) Quick Disconnect - Bulkhead Mount (IP68 Rated), add $93.10
REMOTE SWITCH OPTIONS
Doran EXOPT115 Remote Switch Configured for remote ZERO
Doran EXOPT115 Remote Switch Configured for remote ZERO, add $81.00
Doran EXOPT116 Remote Switch Configured for remote PRINT
Doran EXOPT116 Remote Switch Configured for remote PRINT, add $81.00
Doran EXOPT117 Remote Switch Configured for remote UNITS
Doran EXOPT117 Remote Switch Configured for remote UNITS, add $81.00
PRINTER OPTIONS
Doran LR350 Label Printer (PRT0350-C)
Doran LR350 Label Printer (PRT0350-C), add $540.00
Doran CUSTOM-LABEL Custom Label Formatting
Doran CUSTOM-LABEL Custom Label Formatting, add $204.25
Doran PRT0351-C Impact Printer Paper tape printer includes scale to printer cable.
Doran PRT0351-C Impact Printer Paper tape printer includes scale to printer cable., add $540.00
DATA COLLECTION AND MANAGEMENT SOFTWARE
This scale is compatible with the following software. Call us for more details.
Doran SFT0001  CheckWay PC Software
Doran SFT0001 CheckWay PC Software, add $715.50
Doran SFT0017 Dimension Indicator Configuration Software
Doran SFT0017 Dimension Indicator Configuration Software, add $45.00
RELAY OPTIONS - INTERNAL
Doran EXOPT106 Internal Relay Option
Doran EXOPT106 Internal Relay Option, add $229.50
Doran EXOPT317 Internal Mechanical Relay 10 Amp - 250VAC/30VDC (12V Coil)
Doran EXOPT317 Internal Mechanical Relay 10 Amp - 250VAC/30VDC (12V Coil), add $55.00
Doran EXOPT109 Internal Solid State Relay 2 Amp - 100-240VAC
Doran EXOPT109 Internal Solid State Relay 2 Amp - 100-240VAC, add $55.00
Doran EXOPT110 Internal Solid State Relay  2 Amp - 5-48VDC
Doran EXOPT110 Internal Solid State Relay 2 Amp - 5-48VDC, add $55.00
RELAY OPTIONS - EXTERNAL
Doran EXOPT107 External Relay Option
Doran EXOPT107 External Relay Option, add $337.50
Doran EXOPT196 External Mechanical Relay with DIN mount terminal socket
Doran EXOPT196 External Mechanical Relay with DIN mount terminal socket, add $50.00
Doran EXOPT112 External Solid State Relay- AC with DIN mount terminal socket
Doran EXOPT112 External Solid State Relay- AC with DIN mount terminal socket, add $65.00
SERIAL DATA COMMUNICATIONS OPTIONS
RS232 Options can not be ordered with the following options: RS485 Serial Data Output, Ethernet Wired or Wireless, Fiber Optic Interface, USB Interface, or Bluetooth
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D, add $71.25
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D, add $71.25

LOAD CELL OPTIONS
Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base
Doran EXOPT136-CCLB Stainless Steel Load Cell for 8 x 8 or 10 x 10 Base, add $265.50
Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base
Doran EXOPT137-CCLB Stainless Steel Load Cell for 12 x 12 Base, add $265.50
Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base
Doran EXOPT138-CCLB Stainless Steel Load Cell for 15 x 15 Base, add $265.50
Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18,  18 x 24, or 24 x 24 Base
Doran EXOPT179-CCLB Stainless Steel Load Cell for 18 x 18, 18 x 24, or 24 x 24 Base, add $495.00
CALIBRATION OPTIONS
Doran EXOPT310-BB-CCLB  Super Precision Calibration
Doran EXOPT310-BB-CCLB Super Precision Calibration, add $45.00
SCALE VEIL
Doran SUB0852 Clear protective scale veil (Pack of 3)
Doran SUB0852 Clear protective scale veil (Pack of 3), add $42.00
COLUMN OPTIONS
Doran EXOPT134 Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column
Doran EXOPT134 Upgrade 20 Inch to 30 Inch Stainless Steel Atlas Column, add $157.50
BARCODE SCANNER
Doran QS2500 BarCode Scanner (EXOPT178)
Doran QS2500 BarCode Scanner (EXOPT178), add $490.50
Doran PS7000 BarCode Scanner (EXOPT177)
Doran PS7000 BarCode Scanner (EXOPT177), add $940.50
EXTRA HOLE
Doran EXOPT316  Drill Extra Hole in Backplate
Doran EXOPT316 Drill Extra Hole in Backplate, add $135.00
Model 22002-C14* 22005-C14 22010-C14 22025-C14 22050-C14
Doran 22002-C14 Washdown Bench Scale with 10 x 10 Base and 14 inch Column 2 x 0.0005 lb
$1,494.00
Doran 22005-C14 Legal for Trade Washdown Bench Scale with 10 x 10 Base and 14 inch Column 5 x 0.001 lb
$1,494.00
Doran 22010-C14 Legal for Trade Washdown Bench Scale with 10 x 10 Base and 14 inch Column 10 x 0.002 lb
$1,494.00
Doran 22025-C14 Legal for Trade Washdown Bench Scale with 10 x 10 Base and 14 inch Column 25 x 0.005 lb
$1,494.00
Doran 22050-C14 Legal for Trade Washdown Bench Scale with 10 x 10 Base and 14 inch Column 50 x 0.01 lb
$1,494.00
Capacity x Readability lb 2 x 0.0005 5 x 0.001 10 x 0.002 25 x 0.005 50 x 0.01
kg 0.9 x 0.2g 2.3 x 0.5g 4.5 x 1g 11.3 x 2g 22.7 x 5g
oz 35 x 0.01 80 x 0.02 160 x 0.05 400 x 0.1 800 x 0.2
Platter Size 10" x 10"
Column Height 14 Inch
Legal for Trade NOT
Legal for Trade
Indicator: CC# 06-101 NTEP Class III - Base: CC# 97-097A1 NTEP Class III
NOT
Legal for Trade
Indicator: CC# AM-5617 Canada Class III - Base: CC# AM-5241 Canada Class III
NTEP Resolution NOT
Legal for Trade
5000d 5000d 5000d 5000d
Outputs
  • Two configurable Bi-directional RS-232 Serial Ports.
  • Eight Digital Outputs
Input Two programmable inputs
Washdown NEMA4 x / IP69 rated
Display 6 digit red LED 0.56" High
Controls: TARE, GROSS/NET, ZERO, PRINT, UNITS, ACCUM, ID, CLEAR, ENTER, SET POINT, Decimal Point, and Numeric Keypad 0-9
Indicators lb, kg, g, oz, ZERO, BATT, and MOT
Units lb, kg, g, oz, or lb:oz
Power 115 VAC, 50/60 Hz (230 VAC Optional) - Internal Rechargeable Battery (Optional)
Construction 304 Stainless Steel
Warranty Two Year Parts & Labor
* Not Legal for Trade

Model 22025/12-C14 22050/12-C14 22100/12-C14 22050/15-C14 22100/15-C14 22200/15-C14
Doran 22025/12-C14 Legal for Trade Washdown Bench Scale with 12 x 12 Base and 14 inch Column 25 x 0.005 lb
$1,597.50
Doran 22050/12-C14 Legal for Trade Washdown Bench Scale with 12 x 12 Base and 14 inch Column 50 x 0.01 lb
$1,597.50
Doran 22100/12-C14 Legal for Trade Washdown Bench Scale with 12 x 12 Base and 14 inch Column 100 x 0.02 lb
$1,597.50
Doran 22050/15-C14 Legal for Trade Washdown Bench Scale with 15 x 15 Base and 14 inch Column 50 x 0.01 lb
$1,818.00
Doran 22100/15-C14 Legal for Trade Washdown Bench Scale with 15 x 15 Base and 14 inch Column 100 x 0.02 lb
$1,818.00
Doran 22200/15-C14 Legal for Trade Washdown Bench Scale with 15 x 15 Base and 14 inch Column 200 x 0.05 lb
$1,818.00
Capacity x Readability lb 25 x 0.005 50 x 0.01 100 x 0.02 50 x 0.01 100 x 0.02 200 x 0.05
kg 11.3 x 2g 22.7 x 5g 45 x 10g 22.7 x 5g 45 x 10g 91 x 20g
oz 400 x 0.1 800 x 0.2 1600 x 0.5 800 x 0.2 1600 x 0.5 3200 x 1
Platter Size 12" x 12" 15" x 15"
Legal for Trade Indicator: CC# 06-101 NTEP Class III - Base: CC# 97-097A1 NTEP Class III
Indicator: CC# AM-5617 Canada Class III - Base: CC# AM-5241 Canada Class III
NTEP Resolution 5000d 5000d 5000d 5000d 5000d 5000d
Outputs
  • Two configurable Bi-directional RS-232 Serial Ports.
  • Eight Digital Outputs
Input Two programmable inputs
Washdown NEMA4 x / IP69 rated
Display 6 digit red LED 0.56" High
Controls: TARE, GROSS/NET, ZERO, PRINT, UNITS, ACCUM, ID, CLEAR, ENTER, SET POINT, Decimal Point, and Numeric Keypad 0-9
Indicators lb, kg, g, oz, ZERO, BATT, and MOT
Units lb, kg, g, oz, or lb:oz
Power 115 VAC, 50/60 Hz (230 VAC Optional) - Internal Rechargeable Battery (Optional)
Construction 304 Stainless Steel
Warranty Two Year Parts & Labor
* Not Legal for Trade
