Cambridge PB-Weighfer-10AT Bench Scales |
Authorized Dealer |
| Cambridge Scale Works, Inc. weighfer scales have capacities of 25 Lb. thru 1,000 Lb. and are only 1.5 inch to 2.5 inches high respectively. They feature a lot of capacity and value in a very thin package.
|
| Cambridge Scales >> Bench Scales |
|
|
|
Cambridge Scale Works, Inc. weighfer scales have capacities of 25 Lb. thru 1,000 Lb. and are only 1.5 inch to 2.5 inches high respectively. They feature a lot of capacity and value in a very thin package.
MODEL PB STANDARD FEATURES
- Clamshell Design
- Polished Stainless Steel Cover
- Powder Coated Steel Base
- Ultra-Low Profile - Height 1.5? - 2.5?
- 25 lb thru 1,000 lb Capacities
- Four Planar Beam Load Cells
- IP-65 Water Seal Rated Aluminum Load Cells
- 10 ft Indicator Cable
- Corner Overload Protection
- 150% Overload Protection
- (4) Vibration Absorbent Anti-Skid Leveling Feet
- Meets NIST HB-44 Requirements for Class III-5,000 Division

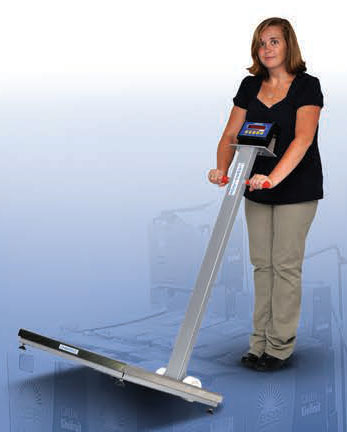

MODEL PB-P SERIES PORTABLE PLATFORM SCALE
Cambridge offers the most complete line of portable scales in the industry. The PB-P was designed with a very low profile for use in shipping and receiving areas, airport baggage weighing, people weighing, and any light industrial application where portability is required. Just pick the Cambridge indicator that best fits your application and you have a dependable scale system backed by our full one year warranty.
Only 2"- 2.5" High
The Model PB-P has capacities of 250 lb. thru 1,000 lb. with a selection of sizes including 18" X 18" and 24" X 24". Cambridge engineers have designed a portable general purpose weight scale that is easy to load and unload. This unique design allows the operator to place large or bulky items onto the scale with ease thanks to the low profile design.
The Cambridge Model PB-P features the Cambridge exclusive "Tilt and Transport" portable design.
STANDARD FEATURES
- Clamshell Design
- Polished Stainless Steel Cover
- Powder Coated Steel Base
- Ultra-Low Profile - Height 2" - 2.5"
- 250 lb thru 1,000 lb Capacities
- Four Planar Beam Load Cells
- IP-65 Water Seal Rated Aluminum Load Cells
- 10 foot Indicator Cable
- Corner Overload Protection
- 150% Overload Protection
- (4) Vibration Absorbent Anti-Skid Leveling Feet
- Meets NIST HB-44 Requirements for Class III-5,000 Division
- Two 4" Aqualite wheels with Delrin bearings
- "Tilt and Transport" portable design
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
- Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Push-button Controls
- LED Display (Bright)
- Printer Data Output on Demand
- 9 Pin Load Cell Connection
- Simple No-Soldering Load Cell Connection
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization 1 to 5 points of Digital Calibration available
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- AC Adapter Provided
- Auto Zero Tracking
- Adjustable Motion Detection
- ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Optional Features:
Models CSW-10AT
- 110 VAC Dry Contact Set Point
- 12 VDC Accessory Port Power Cable
- Peak Weight Hold
- Digital Scroll Tare
- Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded
- WiFi transmitter to customers wireless hub
- Ethernet Connection
| 12 x 12 inch and 18 x 18 |
| Model |
PB-10AT-1212-25 |
PB-10AT-1212-50 |
PB-10AT-1212-100 |
PB-10AT-1818-250 |
PB-10AT-1818-500 |
PB-10AT-1818-1000 |
|
$949.50
|
$949.50
|
$949.50
|
$1,156.50
|
$1,170.00
|
$1,201.50
|
| Capacity x Readability |
25 x 0.005 lb |
50 x 0.01 lb |
100 x 0.02 lb |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
| Power |
120 VAC Adapter / 12 VDC +10% |
| Battery Operated |
Optional |
| Humidity |
0-90% Non-condensing |
| Indicator Enclosure |
ABS Plastic |
| Display |
High Efficient, Bright (Adjustable)LED?6 Digits?0.56" High |
| Input |
0-15mv |
| Temperature |
10¨ to +40¨ Celsius |
| Linearity |
0.001% of Full Scale |
| Accuracy |
0.001% of Full Scale |
| Load Cell Supply |
5VDC at 150ma (8 each 350 ohm load cells) |
| Optional Features |
Scale Warning System, WiFi transmitter to customers wireless hub, Ethernet Connection |
| Ports |
RS-232 |
| Base Dims |
12 x 12 x 1.5 inch |
12 x 12 x 1.5 inch |
12 x 12 x 1.5 inch |
18 x 18 x 2 inch |
18 x 18 x 2.25 inch |
18 x 18 x 2.5 inch |
| Ship Weight |
18 lb |
18 lb |
18 lb |
35 lb |
35 lb |
35 lb |
| Country of Origin |
USA |
OPTIONS
- 24" X 12" Easy Incline Ramps (Model: PB 24" X 24" and 24" X 36", fits 24" side only)
- Column (See Model: PB-P series.)
| 24 x 24 inch and 24 x 36 |
| Model |
PB-10AT-2424-250 |
PB-10AT-2424-500 |
PB-10AT-2424-1000 |
PB-10AT-2436-250 |
PB-10AT-2436-500 |
PB-10AT-2436-1000 |
|
$1,246.50
|
$1,201.50
|
$1,336.50
|
$1,944.00
|
$1,809.00
|
$1,854.00
|
| Capacity x Readability |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
| Power |
120 VAC Adapter / 12 VDC +10% |
| Battery Operated |
Optional |
| Humidity |
0-90% Non-condensing |
| Indicator Enclosure |
ABS Plastic |
| Display |
High Efficient, Bright (Adjustable)LED?6 Digits?0.56" High |
| Input |
0-15mv |
| Temperature |
10¨ to +40¨ Celsius |
| Linearity |
0.001% of Full Scale |
| Accuracy |
0.001% of Full Scale |
| Load Cell Supply |
5VDC at 150ma (8 each 350 ohm load cells) |
| Optional Features |
Scale Warning System, WiFi transmitter to customers wireless hub, Ethernet Connection |
| Ports |
RS-232 |
| Base Dims |
24 x 24 x 2 inch |
24 x 24 x 2.25 inch |
24 x 24 x 2.5 inch |
24 x 36 x 2 inch |
24 x 36 x 2.25 inch |
24 x 36 x 2.5 inch |
| Ship Weight |
55 lb |
55 lb |
55 lb |
95 lb |
95 lb |
95 lb |
| Country of Origin |
USA |
OPTIONS
- 24" X 12" Easy Incline Ramps (Model: PB 24" X 24" and 24" X 36", fits 24" side only)
- Column (See Model: PB-P series.)
| Portable 18 x 18 inch and 24 x 24 |
| Model |
PBP-10AT-1818-250 |
PBP-10AT-1818-500 |
PBP-10AT-1818-1000 |
PBP-10AT-2424-250 |
PBP-10AT-2424-500 |
PBP-10AT-2424-1000 |
|
$1,593.00
|
$1,647.00
|
$1,701.00
|
$1,750.50
|
$1,935.50
|
$1,786.75
|
| Capacity x Readability |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
| Power |
7.4 VDC 3000 mAH* Battery/120 VAC Adapter |
| Column |
44 inch |
| Battery Operated |
7.4 VDC 3000 mAH* Battery included |
| Humidity |
0-90% Non-condensing |
| Indicator Enclosure |
ABS Plastic |
| Display |
High Efficient, Bright (Adjustable)LED?6 Digits?0.56" High |
| Input |
0-15mv |
| Temperature |
10¨ to +40¨ Celsius |
| Linearity |
0.001% of Full Scale |
| Accuracy |
0.001% of Full Scale |
| Load Cell Supply |
5VDC at 150ma (8 each 350 ohm load cells) |
| Optional Features |
Scale Warning System, WiFi transmitter to customers wireless hub, Ethernet Connection |
| Ports |
RS-232 |
| Base Dims |
18 x 18 x 2 inch |
18 x 18 x 2.25 inch |
18 x 18 x 2.5 inch |
24 x 24 x 2 inch |
24 x 24 x 2.25 inch |
24 x 24 x 2.5 inch |
| Ship Weight |
95 lb |
95 lb |
95 lb |
115 lb |
115 lb |
115 lb |
| Country of Origin |
USA |
| PB-Weighfer Bases |
| Compatable Indicators |
| Model |
CSW-10AT Series |
SSCSW-10AT Series |
CSW-15AT Series |
CSW-20AT Series |
SSCSW-20AT Series |
| Price From |
$324.00
|
$585.00
|
$985.50
|
$652.50
|
$855.00
|
| Legal for Trade |
Yes |
Yes |
Yes |
Yes |
Yes |
| Enclosure |
ABS Plastic |
304 Stainless Steel NEMA 4X |
Die Cast Aliminum |
Die Cast Aliminum |
304 Stainless Steel Nema 4X |
| Ports |
RS-232 |
RS-232 |
RS-232 |
2 X RS-232 |
2 X RS-232 |
| Unique Features |
- |
- |
Wireless Remote Control |
Full Numeric Keypad |
Full Numeric Keypad |
|
more info |
more info |
more info |
more info |
more info |
|
| Platform Size |
Capacity |
Load Cell |
Approx Shipping Weight |
Low Profile |
| 12 x 12 x 1.5 Inch |
25 lb |
4 X 3.75 KG Each |
18 lb |
$625.50
|
| 12 x 12 x 1.5 Inch |
50 lb |
4 X 7.50 KG Each |
18 lb |
$625.50
|
| 12 x 12 x 3.5 Inch |
100 lb |
4 x 15.00 KG Each |
18 lb |
$625.50
|
|
| 18 x 18 x 2.0 Inch |
250 lb |
4 X 37.50 KG Each |
35 lb |
$832.50
|
| 18 x 18 x 2.25 Inch |
500 lb |
4 X 75.00 KG Each |
35 lb |
$846.00
|
| 18 x 18 x 2.5 Inch |
1000 lb |
4 x 150.00 KG Each |
35 lb |
$877.50
|
|
| 24 x 24 x 2.0 Inch |
250 lb |
4 X 37.50 KG Each |
55 lb |
$922.50
|
| 24 x 24 x 2.25 Inch |
500 lb |
4 X 75.00 KG Each |
55 lb |
$877.50
|
| 24 x 24 x 2.5 Inch |
1000 lb |
4 x 150.00 KG Each |
55 lb |
$1,012.50
|
|
| 24 x 36 x 2.0 Inch |
250 lb |
4 X 37.50 KG Each |
55 lb |
$1,620.00
|
| 24 x 36 x 2.25 Inch |
500 lb |
4 X 75.00 KG Each |
95 lb |
$1,665.00
|
| 24 x 36 x 2.5 Inch |
1000 lb |
4 x 150.00 KG Each |
95 lb |
$1,710.00
|
| Cable |
10 Foot |
| Rated |
IP65 |
| Country of Origin |
USA |
| PB-P-Weighfer Portable Bases with 44 inch Column |
| Platform Size |
Capacity |
Load Cell |
Approx Shipping Weight |
Portable |
18 x 18 x 2.0 Inch
44" Column |
250 lb |
4 X 37.50 KG Each |
95 lb |
$1,102.50
|
18 x 18 x 2.25 Inch
44" Column |
500 lb |
4 X 75.00 KG Each |
95 lb |
$1,156.50
|
18 x 18 x 2.5 Inch
44" Column |
1000 lb |
4 x 150.00 KG Each |
95 lb |
$1,210.50
|
|
24 x 24 x 2.0 Inch
44" Column |
250 lb |
4 X 37.50 KG Each |
115 lb | 0
$1,260.00
|
24 x 24 x 2.25 Inch
44" Column |
500 lb |
4 X 75.00 KG Each |
115 lb |
$1,445.00
|
24 x 24 x 2.5 Inch
44" Column |
1000 lb |
4 x 150.00 KG Each |
115 lb |
$1,296.25
|
|
|
|
