CAS Caston II Plus Digital Crane Scale CAS Scales
Authorized Dealer
The Caston II Plus is a full featured industrial crane scale that is easy to see, easy to use, versatile, unquestionably safe, and designed to last! with Bluetooth
Have Questions?
Call USoremail Us
Our Staff will be glad to help

View Specifications Chart

CAS Caston II Plus Digital Crane Scale

CAS TWN Bluetooth Handheld Indicator
CAS TWN Bluetooth Handheld Indicator, add $520.00
CAS THB-BT Bluetooth Module Field Retrofit Kit
CAS THB-BT Bluetooth Module Field Retrofit Kit, add $200.00


More info
The Caston III Crane Scale is a sturdy easy to use crane scale. With capacities up to 100,000 lbs, the Caston III Crane Scale works well in light to medium industrial applications. Comes equipped with a wireless remote control. Add the TWN-B and THD-BT to utilize the Caston III Series Bluetooth capabilities
  • 10K, 20K, 30K, 40K, 60K*, & 100K* lb Capacities (* 60K and 100K models are special order)
  • 1.5 inch Red LED Display
  • Rechargeable 12v Battery
  • Rugged Cast Aluminum Case
  • Includes Remote Control, Extra Battery, and Charger
  • Add the TWM-B and THD-BT to utilize the Bluetooth features of the Caston III Plus
  • Environmentally Sealed to IP65 Standards
  • Convenient, easy to change battery pack

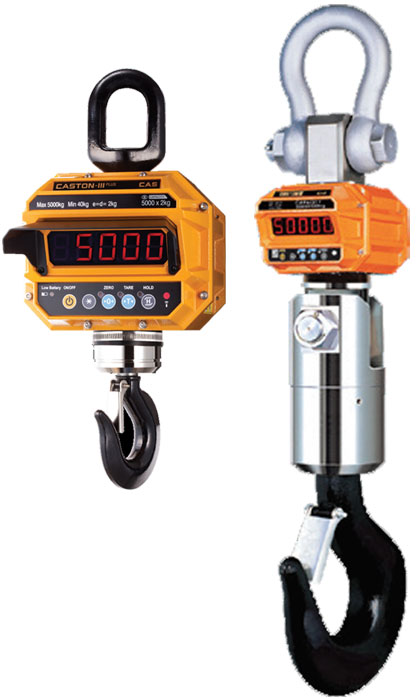

The CASTON III PLUS is ideal for heavy duty use in harsh industrial environments. The CASTON III PLUS is a full featured, rugged industrial crane scale with standard features that include a watertight enclosure, 1.5" high intensity LED display, simple, easy to use rechargeable battery pack, wireless remote control, swivel hook, and portable hand held indicator

  • Rugged The Caston III Plus is ideal for harsh, industrial applications.
  • Sun Visor A sun visor guarantees readability even in bright sun light
  • Remote Control Every Caston III Plus includes an infrared wireless remote control providing power on/off, tare, hold, clear, and sum functions.
  • Swivel Hook The swivel hook is standard on all capacities, offering 360 degree movement while also insuring safety, accuracy, and repeatability.
  • Easy to Read LED Display The LED displays downward tilt angle and large 1.5" characters provide the user with a clear and easy to read weight value.

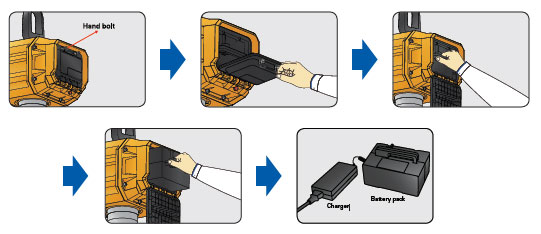

Easy to Change Battery Pack Easily access the rechargeable battery pack by hand for recharging and re-installing.
Easy to Change Battery Pack
TWN Handheld Indicato The TWN Handheld Portable Indicator is included with all Caston III Plus BT Crane Scales. Already have a Caston III Plus Crane Scale and want Bluetooth connectivity? No problem. Simply install the optional Bluetooth Field Retrofit Kit and the TWN Portable Handheld Indicator for a fully operational Bluetooth crane scale
  • Light weight and portable
  • Easy to see - simple to operate
  • Wireless Connectivity
  • Increased Functionality
  • Built-in Rechargeable Battery
  • Sun Visor

The CAS TWN HAND HELD INDICATOR utilizes a high contrast, 320 x 240, TFT LCD display. The CAS TWN handheld indicator also includes a screen visor and an alphanumeric and function style keypad housed in a light weight protective enclosure.

Portable & Durable This portable handheld indicator is both durable and functional. The TWN’s design incorporates a built- in rechargeable battery and offers Bluetooth wireless communication capabilities that enable transmissions in excess of 300 feet /100 meters

Data Management For data management needs, the TWN is supplied with enough on-board memory for 100 items and 5,000 transactions (including time, date, and gross weight). A wired printer or bluetooth mobile printer can be used for printing needs or simply utilize the USB to PC connection to upload/download weighing data including item number, item name, and header text to a connected PC. Item management and data back up capabilities available with CAS TW-Works software.

Model CAST3-PLUS(10K) CAST3-PLUS(20K) CAST3-PLUS(30K) CAST3-PLUS(40K) CAST3-PLUS(60K) CAST3-PLUS(100K)
CAS CAST3-PLUS(10K) Casto
$2,050.00
CAS CAST3-PLUS(20K) Casto
$3,250.00
CAS CAST3-PLUS(30K) Casto
$3,750.00
CAS CAST3-PLUS(40K) Casto
$4,195.00
CAS CAST3-PLUS(60K) Casto
$11,750.00
CAS CAST3-PLUS(100K) Cast
$19,950.00
Capacity x Readability 10,000 x 2 lbs
5,000 x 1 kg
20,000 x 5 lbs
1,000 x 0.5 kg
30,000 x 10 lbs
15,000 x 5 kg
40,000 x 10 lbs
20,000 x 5 kg
60,000 x 20 lbs
30,000 x 10 kg
100,000 x 20 lbs
50,000 x 10 kg
Accuracy Plus or minus 0.1% of applied load
Maximum Tare Full Tare
Overload Safety: 150% of rated capacity
Ultimate: 300% of rated capacity
Housing Alodined cast aluminum Double O-ring gasket NEMA 4 IP 65
Hook, Eye, Shackles Crosby or equivalent
Display Type LED / 6 Digit (1.5 inch)
Frequency (BT) 2.4 Ghz
Remote Distance (BT) Up to 350 ft / 106.7 m
Channels (BT) Up to 79 separate channels
Operating Power DC 12V
Operating Time 14 - 24 hours
Power Source AC 120V, 50/60 Hz
Display Designators Zero, Tare, Hold, Batt
Product Weight 98 lbs 153 lbs 158 lbs 240 lbs 710 lbs 1,050 lbs
Power Consumption 1.2W
Warranty 2 Years
Operating Temp -10°C ~ 40°C / 14°F ~ 104°F

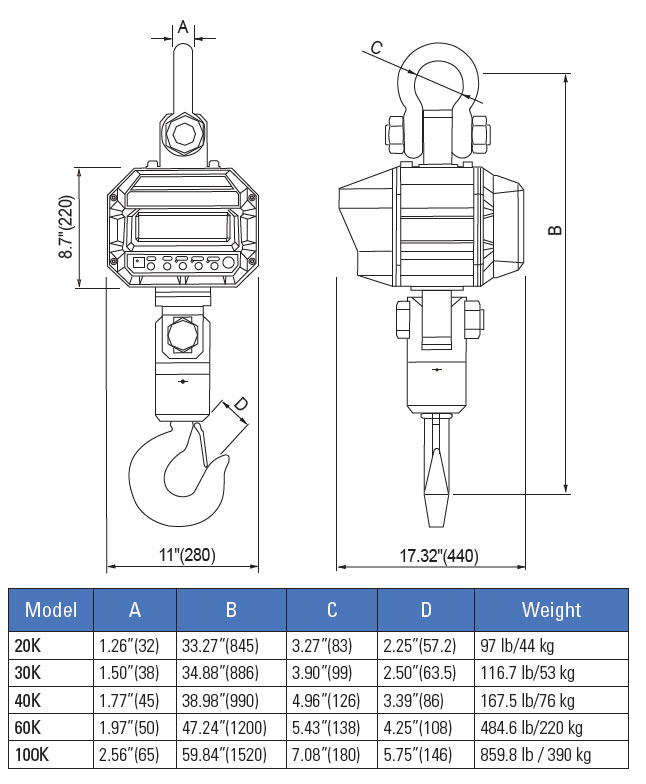

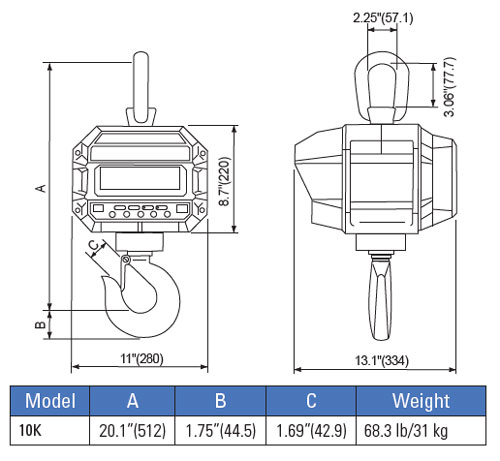

Dimensions ** (W x H x D 11 x 13.1 x 24.8 in
279 x 333 x 630 mm
11 x 13.1 x 37.1 in
279 x 333 x 942 mm
11 x 13.1 x 44.5 in
279 x 333 x 1130 mm
11 x 13.1 x 54.3 in
279 x 333 x 1379 mm
11 x 13.9 x 55.0 in 22 x 14.3 x 73.21 in

TWN Handheld Indicator
Communication Type Bluetooth
Communication Rate 9,600 bps
Communication Distance Max: 300ft/100m
Display High contrast 320 x 240 TFT LCD
Enclosure Light weight industrial grade NEMA 4/IP65
Memory 100 items/5,000 transactions incl time/date/gross wt
Battery Charging Time Approx 5-6 hrs
Options Wireless or Wired Printer
Power DC 3.6V 4,400mA rechargeable battery
DC 4.2V adapter
Operating Temp 10¢ªC ~ +40¢ªC
Interface USB : PC connection
RS-232C : Mobile printer connection
Dimensions 4.1 (W) x 8 (H) x 2.9 (D) - Inches
104.7 (W) x 204 (H) x74.3 (D) - MM
Product Weight 1.1 lbs/0.5 kg
