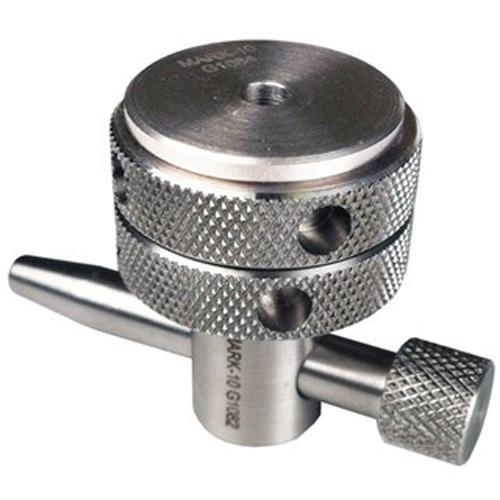

Mark-10 AC1045-2 Force gauge adapter kit 1/2-20M |
|
| These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation more ... |
|
Scales >
Test Stand >
Accessories
|
|
|
|
|
|
Features
These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation.
Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits.
Weight:
2.00 lb
|
|
Other Mark 10 AC1045-X Force gauge adapter kit
|
Specifications
| Model |
Description |
Including |
Compatibility |
| AC1045 |
Force gauge adapter kit, #10-32F |
- G1082 eye end - qty. 1
- G1084 washer - qty. 1
- G1079 lock ring - qty. 2
- G1080 anchor pin - qty. 1
|
Force gauges up to 100 lbF capacity
|
| AC1045-1 |
Force gauge adapter kit, 5/16-18F |
- G1082-1 eye end - qty. 1
- G1084-1 washer - qty. 1
- G1079 lock ring - qty. 2
- G1080 anchor pin - qty. 1
|
Force gauges with 200, 300, and 500 lbF capacities
|
| AC1045-2 |
Force gauge adapter kit, 1/2-20M |
- G1082-2 eye end - qty. 1
- G1084-2 washer - qty. 1
- G1079 lock ring - qty. 2
- G1080 anchor pin - qty. 1
|
Models M5-750 - M5-2000 force gauges |
|
|
|
|
