Shimpo DT-326B Handheld LED Stroboscope with Rechargeable Battery or AC Power (100-240VAC)

SHIMPO INSTRUMENTS
The DT-326B’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation. The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. more ...
Scales > Industrial Scales > Accessories
Shimpo DT-326B Handheld LED Stroboscope with Rechargeable Battery or AC Power (100-240VAC)

Specifications Chart

Clall for more info
Shimpo DT-326B Handheld LED Stroboscope with Rechargeable Battery or AC Power (100-240VAC)
FREE Ground Shipping *


Price: $611.60


In Stock - Ships within 24 hours

View More Pictures
View Features

SKU: DT-326B

Features

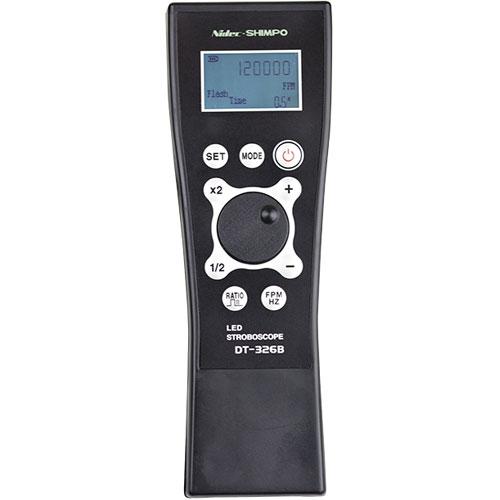

The Series DT-326B is a portable, light-weight stroboscope utilizing super bright high powered LED lamps

The DT-326B’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Containing a rechargeable lithium battery, a single charge can last up to a full 12 hours of operation. The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for predictive and preventive maintenance applications such as: motors, shafts, roto-gravure printing, extruders, blow molding, wire lettering and striping, engraving, pulse jets, water jets, fans, cams, gear teeth, belt inspections, fuel injectors, vibration analysis, audio speaker analysis, spindle spinning, cutting blade timing and sharpness, plus many more in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and shipbuilding industries.

FEATURES
  • Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • 100 – 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability
  • Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images
  • Input sensor trigger function allows process machinery to control flash rate
  • Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
  • x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
  • Long-life LED operation

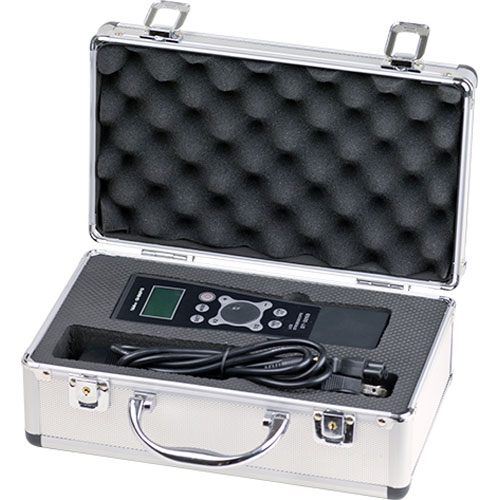

Whats included with the SHIMPO DT-326B
  • Stroboscope
  • AC Power Adapter
  • Carrying Case



Weight: 1.00 lb
1 Year Manufacture Warranty

Specifications

Model DT-326B
Power Requirement 100-240 VAC 50/60Hz
Battery Lithium DC 10.8V 2000mA
Battery Life Approx. 12 hours depending on settings
Flash Rate Range 60 to 120,000 FPM ; 1-2000 Hz
Accuracy 0.01%±1 digit of F.S. @ 77° F (25°C
Lux Rating 6000 FPM & 2.5°: Distance 8? (20 cm) 5800 lx with 4? (100 mm) irradiation dia., Distance 20? (50 cm) 1050 lx with 6? (152 mm) irradiation dia. 1500 FPM & 2.5°: Distance 8? (20 cm) 6400 lx with 4? (100 mm) irradiation dia., Distance 20? (50 cm) 1125 lx with 6? (152 mm) irradiation dia
Lamp Lifetime Approximately 3~5 years depending on usage

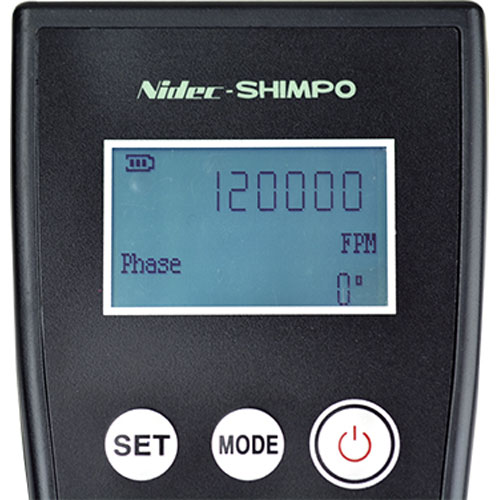

Display Backlit LCD
Resolution 60 ~12,000 FPM = 0.1 FPM
12,001~120,000 FPM = 1 FPM
1~200 HZ = 0.01 Hz
201~2000 = 0.1 Hz
Flash Duration 0.1°- 2.5°
Phase Shift 0-359°
Input Signal 12 V Pulse Input
Input pulse width over 50 µs
Input Signal Range 60-12,000 FPM (1-2000Hz)
Input Signal Flash Delay FPM (RPM) 0-999 ms; 0-359°
Enclosure ABS
Temperature Limits 32 to 95°F (0 to 35°C)
Humidity Limits 35 to 85% RH
Approvals CE
Product Weight 0.84 lb (380 g)
Package Weight 3.50 lb (1.6 kg)
Warranty 1-Year
Included Accessories AC power adapter, Carrying Case
