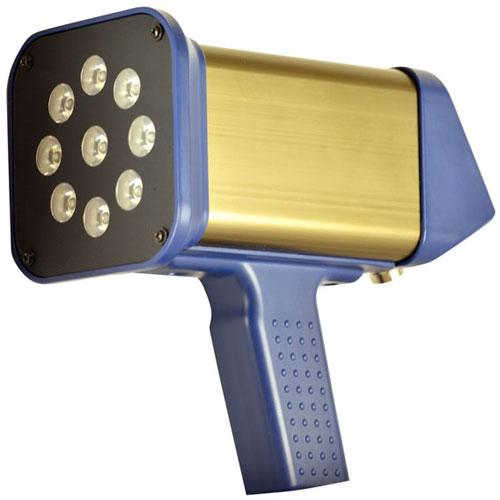

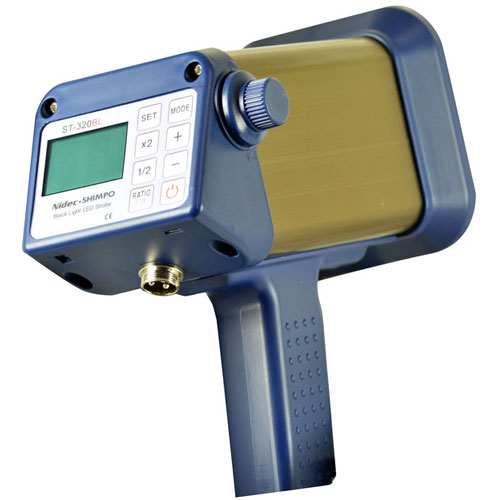

Shimpo ST-320BL-1 Blacklight LED Stroboscope, 120 VAC

SHIMPO INSTRUMENTS
Utilizing super bright high-powered black light CREE LED lamps, these stroboscopes are perfect for UV ink printing applications. The ST-320BLs LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. The unit can work off user adjusted flash frequency or from a remote sensors signal which will automatically adjust to corresponding process fluctuations. more ...
Scales > Medical Scales > Accessories
Shimpo ST-320BL-1 Blacklight LED Stroboscope, 120 VAC

Specifications Chart

Clall for more info
Shimpo ST-320BL-1 Blacklight LED Stroboscope, 120 VAC
FREE Ground Shipping *


Price: $875.60


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

SKU: ST-320BL-1
Other Shimpo ST-320BL Blacklight LED Stroboscopes

ST-320BL-1
Blacklight LED Stroboscope
120 VAC

Price: $875.60
You are viewing this product

ST-320BL-1-230V
Blacklight LED Stroboscope
230 VAC

Price: $875.60

ST-320BL-2
Blacklight LED Stroboscope w/ Rechargeable Battery
120/240 VAC adapter

Price: $1,051.60

Features

Utilizing super bright high-powered black light CREE LED lamps, these stroboscopes are perfect for UV ink printing applications. The ST-320BLs LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. The unit can work off user adjusted flash frequency or from a remote sensors signal which will automatically adjust to corresponding process fluctuations.

Features
  • Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
  • Long-life Black Light LED operation for UV ink applications
  • Adjustable Flash Pulse duration achieves sharper images for detailed inspection
  • Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images
  • Input sensor trigger function allows process machinery to control flash rate
  • Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
  • x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
  • 1/4-20 UNC connection for permanent mount applications (remove trigger handle)
Applications

The ST-320BL is designed for speed and frequency measurements in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical and medical industries in various applications

Whats included with the SHIMPO ST-320BL-1
  • Stroboscope

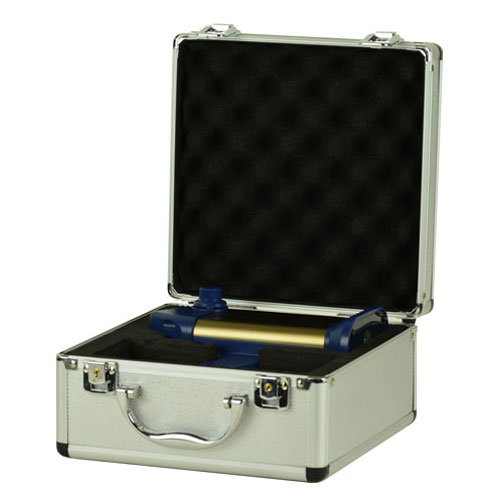

  • Carrying Case
  • AC power cord, 6.5 (2 m)

Weight: 2.00 lb

Specifications

Model ST-320BL-1 ST-320BL-1-230V ST-320BL-2
Power Requirement 100-120 VAC 220-230 VAC Rechargeable Battery with 100-240 VAC power adapter
Battery - - Lithium DC 10.8V 2000mA
Battery Life - - Approx. 12 hrs depending on settings
Flash Rate Range 60 to 120,000 FPM; 1-2000 Hz
Accuracy 0.01% ±1 digit of F.S. @ 77°F (25°C)
Lamp Lifetime Approximately 3 to 5 years depending on usage

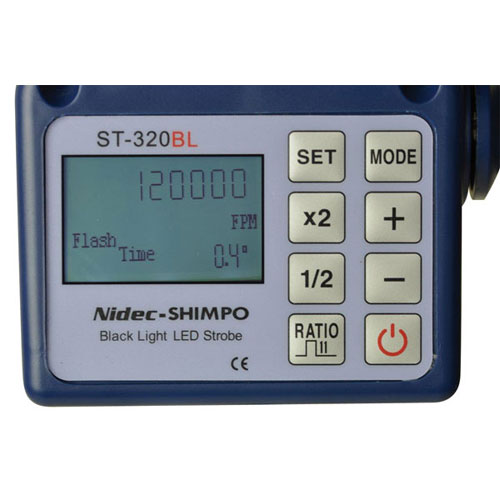

Display Backlit LCD
Flash Duration 0.1°- 2.5°
Phase Shift 0-359°
Input Signal 12 V Pulse Input; 3 pin M-12
Input Signal Range 60-120,000 FPM (1-2000 Hz)
Input Pulse Width Over 50 µs
Input Signal Flash Delay 0-999 ms; 0-359°

* within the 48 continental US States


Optional Accessories


Shimpo SG-320BL Rubber Strobe Guard for ST-320BL Stroboscope
more info
Shimpo SG-320BL Rubber Strobe Guard for ST-320BL Stroboscope
more info
Price: $17.60
In Stock
btn buy
Shimpo ST320-HANDLE Top Handle for ST-320BL Stroboscope
more info
Shimpo ST320-HANDLE Top Handle for ST-320BL Stroboscope
more info
Price: $13.20
In Stock
btn buy The Shimpo ST320-HANDLE is a top handle for the ST-320BL black-light Stroboscope. It allows for ease of transportation and grip.
