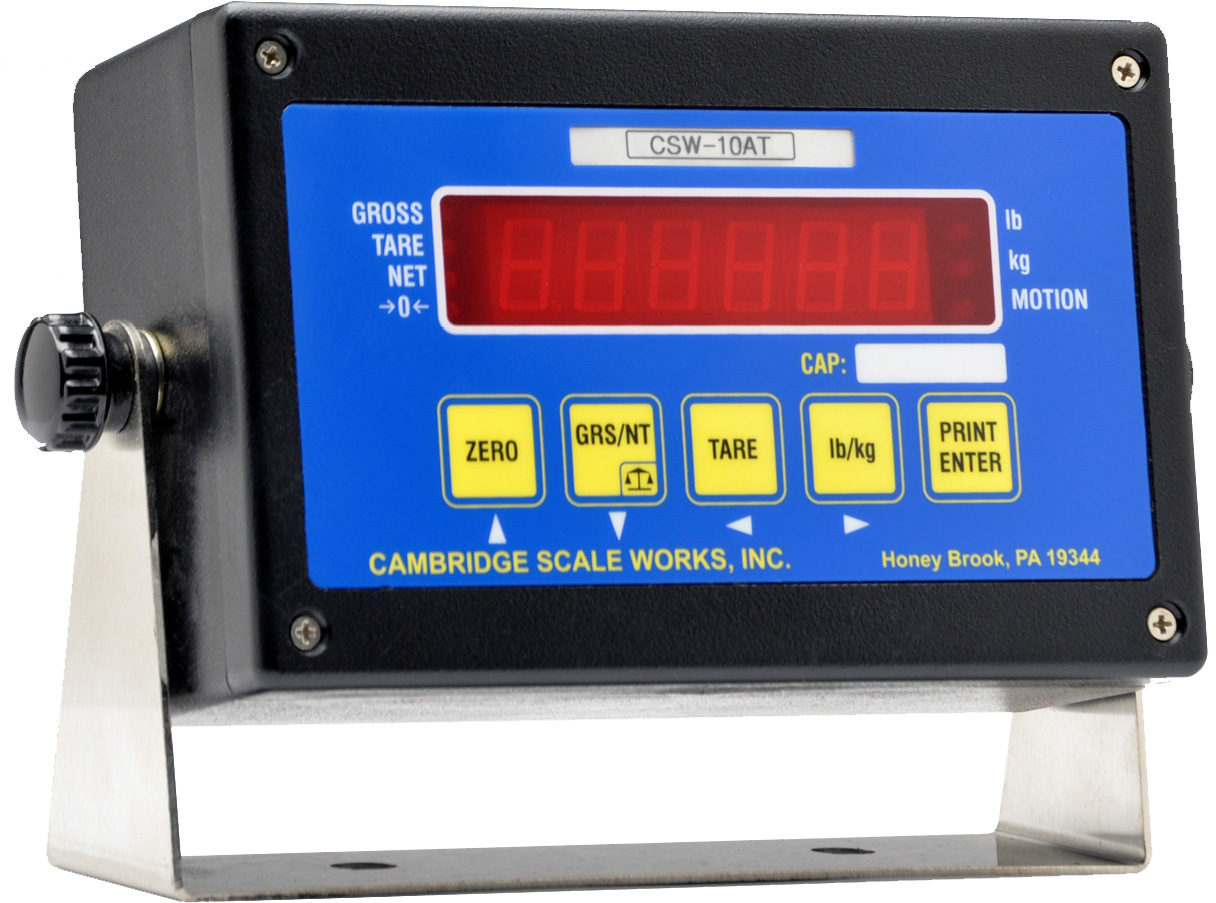

Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade

Cambridge Scale
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade, Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division. Keypad Calibration with Audit Trail. ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand. Adjustable Motion Detection. more ...
Scales > Indicators & Remote Displays > Indicators & Remote Displays
Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade

Specifications Chart

Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade

Price: $292.50


In Stock - Ships within 24 hours

View More Pictures
View Features

SKU: CSW-10AT
Other Cambridge Scale CSW-10AT Indicators

Cambridge CSW-10AT
LED Digital Weight Indicator Legal for Trade

Price: $292.50
You are viewing this product

Cambridge CSW-10AT-B
LED Digital Weight Indicator Legal for Trade - Battery Operated

Price: $445.50

Cambridge SSCSW-10AT
Stainless Steel LED Digital Weight Indicator Legal for Trade

Price: $535.50

Cambridge SSCSW-10AT-B
LED Stainless Steel Digital Weight Indicator Legal for Trade - Battery Operated

Price: $670.50

Features

Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
  • Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
  • Net/Gross Display Modes
  • Full Range Auto Tare
  • Adjustable Digital Filtering
  • All Push-button Controls
  • LED Display (Bright)
  • Printer Data Output on Demand
  • 9 Pin Load Cell Connection
  • Simple No-Soldering Load Cell Connection
  • Clearly, Visible Center of Zero Indication on Display
  • Lb/Kg Conversion
  • Keypad Calibration with Audit Trail
  • Weight Totalization 1 to 5 points of Digital Calibration available
  • Span Adjustment at Increasing or Decreasing Weights
  • Full Range Push Button Zero
  • (1) RS-232 Port for Interface with:
  • Printer Output of Gross/Tare/Net
  • Computer Data Output
  • Scoreboard Continuous Output Alphanumeric or Numeric
  • AC Adapter Provided
  • Auto Zero Tracking
  • Adjustable Motion Detection
  • ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Applications:
  • Floor Scales
  • Bench Scales
  • Hopper Scales
  • Tank Scales
  • Fork Lift Scales
  • General Purpose Weighing
  • Remote Display Configuration
Optional Features: Models CSW-10AT
  • 110 VAC Dry Contact Set Point
  • 12 VDC Accessory Port Power Cable
  • Peak Weight Hold
  • Digital Scroll Tare
  • Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded
  • WiFi transmitter to customers wireless hub
  • Ethernet Connection

Dimensions
X:
8.50   Y: 7.00   Z: 3.00
Weight: 7.00 lb

Specifications

Model CSW-10AT CSW-10AT-B SSCSW-10AT SSCSW-10AT-B
Power 120 VAC Adapter / 12 VDC ±10% 7.4 VDC 3000 mAH* Battery/120 VAC Adapter 120 VAC Adapter / 12 VDC ±10% 7.4 VDC 3000 mAH* Battery/120 VAC Adapter
Battery Operated NO YES NO YES
NON-NTEP Resolution 20,000 Division
Legal for Trade NTEP #06-070A1
Measurement Canada #AM-5778C
NTEP Resolution 5000 Division
Humidity 0-90% Non-condensing
Dimensions 6.5" x 4.3" x 2.5" without Stand, +1 inch with Stand 7.5" x 4.5" x 3" without Stand, +1 inch with Stand
Enclosure ABS Plastic 304 Stainless Steel NEMA 4X
Display High Efficient, Bright (Adjustable)LED—6 Digits—0.56" High
Input 0-15mv
Temperature 10¨ to +40¨ Celsius
Linearity 0.001% of Full Scale
Accuracy 0.001% of Full Scale
Load Cell Supply 5VDC at 150ma (8 each 350 ohm load cells)
Battery Oprating Time - (1) 350 OHM Cell - 22hrs
(4) 350 OHM Cell - 20hrs
(8) 350 OHM Cell - 14hrs
- (1) 350 OHM Cell - 22hrs
(4) 350 OHM Cell - 20hrs
(8) 350 OHM Cell - 14hrs
Ports RS-232
Country of Origin USA
