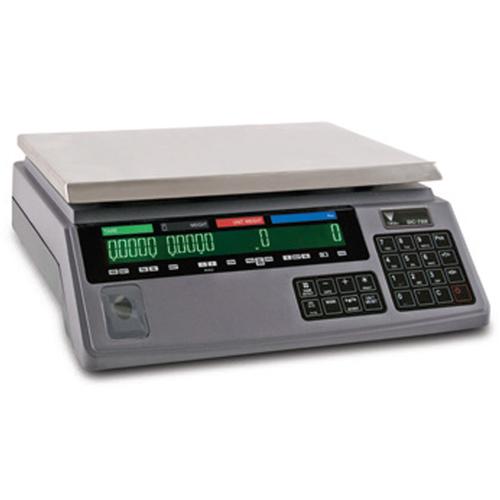

DIGI DC-788-100 Legal for Trade Industrial Counting Scale 100 x 0.02 lb

Name: DIGI DC-788-100 Legal for Trade Industrial Counting Scale 100 x 0.02 lb
Brand: DIGI
SKU: 46160
Price: 765.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Doing More for Less. Th e DIGI DC-788 exceeds all expectations of a counting scale—at a price point that can’t be beat! With a capacity of up to 100 pounds, and a rechargeable battery that provides up to 24 hours of continuous usage, this durable counting scale offers tremendous power and virtually unlimited fl exibility. Its bright red LCD display can be seen from virtually any angle and is highly visible in low light areas. Only non-counting applications are NTEP approved. more ...

Industrial Scales > Counting Scales > Dedicated Counting Scales

DIGI DC-788-100 Legal for Trade Industrial Counting Scale 100 x 0.02 lb

Specifications Chart View Full Detail Page

Legal for Trade

Have Questions?

email Us

Our Staff will be glad to help

Capacity x Readability
Non Legal Mode:100 lbx 0.02 lb
Legal For Trade: 100 lb x 0.02 lb
Pan Size
10 x 13 in

DIGI DC-788-100 Legal for Trade Industrial Counting Scale 100 x 0.02 lb

Price: $765.00

Available to Ship

Optional Accessories

View Features

DIGI
SKU: 88932

Features

DIGI ® DC-788 Series Industrial Counting Scales Doing More for Less. Th e DIGI DC-788 exceeds all expectations of a counting scale—at a price point that can’t be beat! With a capacity of up to 100 pounds, and a rechargeable battery that provides up to 24 hours of continuous usage, this durable counting scale offers tremendous power and virtually unlimited fl exibility. Its bright red LCD display can be seen from virtually any angle and is highly visible in low light areas. Only non-counting applications are NTEP approved.

Accurate Simplicity If accuracy and ease-of-use are important, the DC-788 is a must-have. With its RS-232 interface, you can easily attach a scanner or printer for all your labeling applications. And only the DC-788 allows you to customize your output by disabling specifi c spec codes. With the DC-788’s increased capacity and power, you can now do much more for a lot less!

STANDARD FEATURES

Counting resolution of 1,000,000
Auto-recomputing function
Negative sampling and counting (count out of a full container)
Bright red LCD display is easily readable from virtually any angle
Simultaneous weight display, unit weight, tare, and quantity
Net/gross weight display
Lb/kg weight display conversion
RS-232 output to PC or printer
AC or rechargeable battery operation (battery optional)
100 product look-up registers
NTEP approved for non-counting applications (10 lb and larger)

Weight: 15.00 lb

2 Year Manufacture Warranty

Other DIGI DC-788 Industrial Counting Scale

Image	Name			Price
	DIGI DC-788-2 Industrial Counting Scale 2 x 0.0002 lb SKU: 88928 Capacity x Readability : 2 lb x 0.0002 lb Pan Size: 7 x 10 in More Info			$765.00
	DIGI DC-788-10 Legal for Trade Industrial Counting Scale 10 x 0.002 lb SKU: 88929 Capacity x Readability : 10 lb x 0.002 lb Legal For Trade: 10 lb x 0.002 lb Pan Size: 10 x 13 in More Info			$765.00
	DIGI DC-788-25 Legal for Trade Industrial Counting Scale 25 x 0.005 lb SKU: 88930 Capacity x Readability : 25 lb x 0.005 lb Legal For Trade: 25 lb x 0.005 lb Pan Size: 10 x 13 in More Info			$765.00
	DIGI DC-788-50 Legal for Trade Industrial Counting Scale 50 x 0.01 lb SKU: 88931 Capacity x Readability : 50 lb x 0.01 lb Legal For Trade: 50 lb x 0.01 lb Pan Size: 10 x 13 in More Info			$765.00
	DIGI DC-788-100 Legal for Trade Industrial Counting Scale 100 x 0.02 lb SKU: 88932 Capacity x Readability : 100 lb x 0.02 lb Legal For Trade: 100 lb x 0.02 lb Pan Size: 10 x 13 in More Info			$765.00

Specifications

Model	DC-788-2	DC-788-10	DC-788-25	DC-788-50	DC-788-100
Model	88928	88929	88930	88931	88932
Capacity Readability	2 x 0.0002 lb	10 x 0.002 lb	25 x 0.005 lb	50 x 0.01 lb	100 x 0.02 lb
Capacity Readability	1 x 0.0001 kg	5 x 0.001 kg	10 x 0.002 kg	25 x 0.005 kg	50 x 0.01 kg
Pan Size	7 x 10 in	10 x 13 in	10 x 13 in	10 x 13 in	10 x 13 in
Legal For Trade	-	NTEP CC 07-015 Class III for weigh mode only
Internal Resolution	1/1,000,000
Weight Display Resolution	1/5,000 NTEP, other selections capacity dependent
Display	Liquid crystal display (LCD) Weight: 5-digit Unit weight: 5-digit Quantity: 7-digit Tare: 5-digit
Power Source Consumption	AC: 115, 60 Hz Optional battery: 6 V, 5.0 Ah
Printer Compatibility	DT4 Epson® TM-U220 tape STAR® SP512 tape Epson TM-U295 ticket
Number of Scale Channels	One remote scale, one 350 Ù load cell
Zero Adjust Range	±127% full scale
Memory Items	100
Computer Interface	RS-232 DB-9M connection
Battery Operation	24 hours of continuous usage (battery optional)
Charge Time:	8-10 hours (battery optional)
Operating Temperature	14º F to 104º F (-10º C to 40º C)
Dimensions	Overall (W x D x H): 14 x 13.75 x 4.5 in (354 x 349 x 115 mm)
Warranty	Two-year limited warranty
