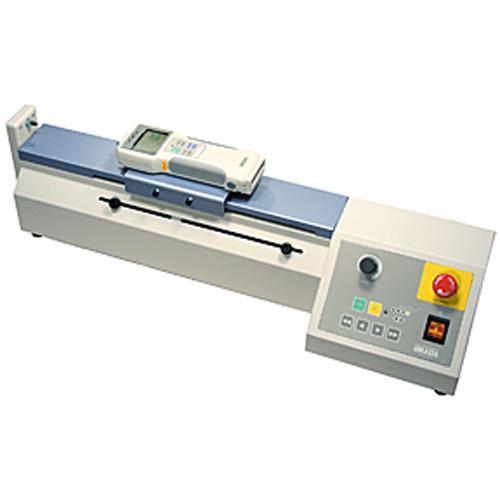

Imada ML-275S Motorized Horizontal Test Stands with distance meter 275 lb |
|
| ML-275 motorized test stands offer basic force testing. Combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range. Speed control, quick return and emergency stop are standard features. more ... |
|
Test Equipment >
Force Test Stands >
Horizontal Test Stand
|
|
|
|
|
|
Features
ML-275 without distance meter
ML-275S with distance meter
Maximum load 275 lbf
.
ML-275 motorized test stands offer basic force testing. Combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.
- Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
- One stand for both compression (push) and tension (pull) tests
- Wide speed range: 0.3 – 7 in/min (optional speed ranges available)
- Stroke 9.5"
- No programming required
- Optional digital distance meter and Speed Configurations
Speed control, quick return and emergency stop are standard features. The ML-275 accepts any of the standard range Imada force gauges.
AP-002 Adapter Plate is available to mount most other force gauges to IMADA test stands
| Speed Configurations |
| Standard Speed |
0.3~7"/min |
| Optional High Speed |
0.6~15.7"/min |
| Optional Low Speed |
0.2~4.2"/min |
|
|
