Mark 10 Force and Torque Sensors
Force Measurement >> Torque Measurement >> Mark-10

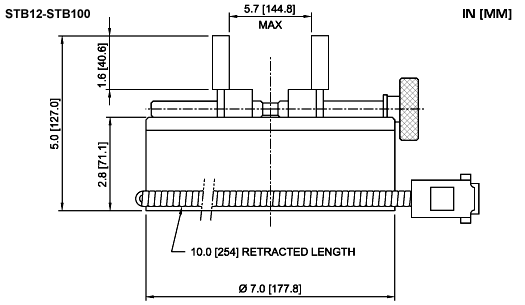

SSM | SS | SJR | SBC| STJ | STB | STC | STH | STE <<
 The Mark-10 is a unique product designed for working in conjunction with a variety of interchangeable remote force and torque sensors listed below. The sensors do not require calibration or setup - the BGI automatically recognizes any sensor. All configuration and calibration data is saved in the sensor's connector. Simply plug and play!
Mark-10 SSM Inline Compression and Tension Testing Sensor |
Hooks not included
|
|
Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.
- Member of the BGI family of interchangeable sensors
- "Personality module" holds all calibration and configuration data
- Rugged aluminum housing
- Measures tensile and compressive forces
- Remote operation
- Small Size
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.15% of full scale ±1 digit + BGI
- Weight: 0.4 lbs (0.2 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
Price |
| SSM2 |
2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N |
$617 |
| SSM5 |
5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N |
$617 |
| SSM10 |
10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N |
$617 |
| SSM20 |
20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N |
$617 |
| SSM50 |
50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N |
$617 |
| SSM100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N |
$617 |
| AC1018 |
Mounting kit, SS/SSM to TS-Series test stands |
$95 |
|
Mark-10 SJR Miniature Force Sensors |
|

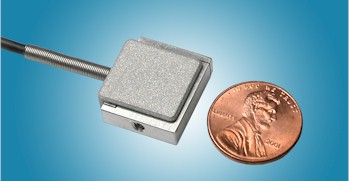

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series SJR is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions: 0.85" x 0.30" x 0.75" (21.6 mm x 7.6 mm x 19.1 mm). The sensors feature outstanding mechanical overload protection of up to 1,000% percent of full scale for most applications and threaded holes on two sides for the mounting of attachments or implements.
- Member of the BGI family of interchangeable sensors
- "Personality module" holds all calibration and configuration data
- Measures tensile and compressive forces
- Mechanical overload protection of up to 1,000% of full scale for all models, 200% for SJR50 and SJR100 when used in tension only
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.2% of full scale ±1 digit + BGI
- Weight: 0.015 lbs (0.007 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
Price |
| SJR025 |
0.25 X 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N |
$897 |
| SJR05 |
0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N |
$897 |
| SJR2 |
2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N |
$897 |
| SJR5 |
5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N |
$897 |
| SJR10 |
10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N |
$897 |
| SJR20 |
20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N |
$897 |
| SJR50 |
50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N |
$897 |
| SJR100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N |
$897 |
|
Mark-10 SS Tension and Compression Force Sensor |
|
A rugged force measurement sensor for tensile and compressive forces up to 10,000 lb. Durable S-Beam architecture allows for many applications and setups. Solid steel construction ensures many years of use in factory or laboratory environments.
- Member of the BGI family of interchangeable sensors
- Remote operation
- Small size
- "Personality module" holds all calibration and configuration data
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.15% of full scale ±1 digit + BGI
- Weight: From 1.9 lbs (0.9 kg) to 3 lbs (1.4)
- Warranty: 3 years
| Model |
Capacity x Resolution |
A |
B |
C |
D |
E |
Price |
| SS100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N |
2.4
(61.0) |
2.0
(50.8) |
0.46
(11.7) |
0.65
(16.5) |
1/4-28 UNF |
$565 |
| SS200 |
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N |
$565 |
| SS500 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N |
0.71
(18.0) |
0.9
(22.9) |
1/2-20 UNF |
$565 |
|
Mark-10 SBC Compression Force Sensors |
|
Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints
- Member of the BGI family of interchangeable sensors
- "Personality module" holds all calibration and configuration data
- Small size
- Stainless steel construction
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.5% of full scale ±1 digit + BGI
- Weight: 0.4 lbs (0.2 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
ØA |
ØB |
C |
D |
ØE |
F |
ØG |
Price |
| SBC200 |
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N |
$617 |
| SBC500 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N |
$617 |
| SBC1000 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N |
$617 |
| SBC1000 |
1000 x 0.5 lb, 500 x 0.2 kgF, 5000 x 2 N |
$617 |
| SBC2000 |
2000 x 1 lb, 1000 x 0.5 kgF, 10000 x 5 N |
$617 |
| SBC5000 |
5000 x 2 lb, 2500 x 1 kgF, 25 x 0.01 kN |
1.48
(37.6) |
0.43
(10.9) |
0.07
(1.8) |
0.62
(15.8) |
1.25
(31.8) |
0.25
(6.4) |
1.08
(27.4) |
$617 |
| SBC10000 |
10000 x 5 lb, 5000 x 2 kgF, 50 x 0.02 kN |
$617 |
|
Mark-10 STJ Universal Torque Sensors |
|

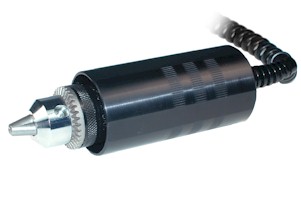

Measure bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 1/2" in diameter, depending on capacity. The sensor can be used as a hand held device, or mounted to a torque test stand. Capacities available from 10 oz-in to 100 lb-in.
- Member of the BGI family of interchangeable sensors
- "Personality module" holds all calibration and configuration data
- Rugged aluminum housing
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.35% of full scale ±1 digit + BGI
- Weight: From 1.4 lbs (0.6 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
A |
Chuck Capacity |
Price |
| STJ20OZ |
20 x 0.02 oz-in, 14 x 0.01 kgF-mm, 14 x 0.01 N-cm |
$755 |
| AC1007 |
 Mounting kit, STJ, table top |
$85 |
|
Mark-10 STC Lightweight Torque Sensor for Tool Calibration |

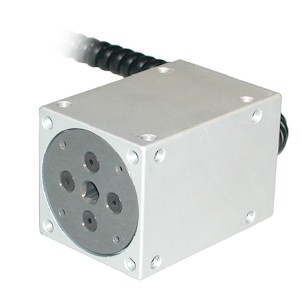

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in
- Member of the BGI family of interchangeable sensors
- "Personality module" holds all calibration and configuration data
- Rugged aluminum housing
- Universal mounting
- May be used for torque tool calibration or as a component of a torque testing system
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.35% of full scale ±1 digit + BGI
- Weight: 1.2 lbs (0.5 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
Safe Overload |
Price |
| STC10Z |
10 x 0.01 oz-in, 7 x 0.005 kgF-mm, 7 x 0.005 N-cm |
300% of Capacity |
$807 |

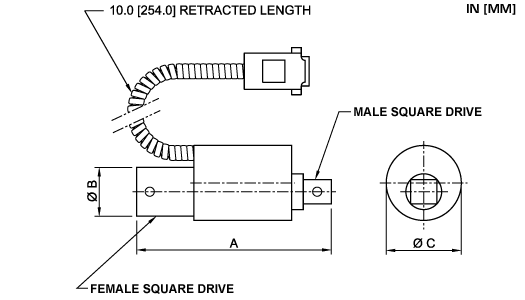

| STE20Z |
20 x 0.02 oz-in, 14 x 0.01 kgF-mm, 14 x 0.01 N-cm |
$807 |
| STE50Z |
50 x 0.05 oz-in, 36 x 0.05 kgF-mm, 35 x 0.05 N-cm |
$807 |
| STC12 |
12 x 0.01 lbin, 140 x 0.1 kgF-mm, 135 x 0.1 N-cm |
150% of Capacity |
$760 |
| STC50 |
50 x 0.05 lbin, 580 x 0.5 kgF-mm, 570 x 0.5 N-cm |
$760 |
| STC100 |
100 x 0.1 lbin, 1150 x 1 kgF-mm, 1150 x 1 N-cm |
$760 |
| AC1006 |
 Mounting kit, STC, table top |
$47 |
| AC1014 |
 3/8" Jacobs chuck for STC |
$142 |
|
|
