Mark 10 EG Digital Force Gauges
Authorized Dealer
Mark-10 has been an innovative designer of force and torque measuring instruments for nearly a quarter of a century. Mark-10 produces a wide range of standard equipment and offer full engineering capabilities for customized applications.

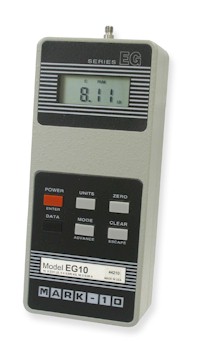

Mark 10 EG Digital Force Gauges
Compare Mark-10 Force Gauges
Click here

FREE UPS Ground Shipping with any Mark-10 purchase!The Mark-10 EG force gauge is an ideal solution for compression and tension applications requiring accuracy and flexibility in the entire 0.12 lb to 500 lb range. Features include selectable units of measurement, automatic peak memory, simple pushbutton calibration, programmable automatic shutoff, initial status of units and mode of operation, permanent configuration memory, and optional outputs (RS-232, Mitutoyo, and analog). Reversible aluminum housing allows for hand-held use or test stand mounting.

Features:

  • Compatible with all Mark 10 test stands and grips
  • Selectable units of measurement
  • Programmable default configuration
  • Peak memory for tensile and compressive forces
  • Push-button calibration
  • Battery or AC operation
  • Programmable automatic shutoff
  • Permanent configuration memory
  • Optional RS-232, Mitutoyo and analog outputs
  • Reversible aluminum housing for handheld use or test stand mounting (see below)
  • Same housing size for all capacities

Mark 10 EG Digital Force Gauges

Model:

MESURGauge Data Collection Software
(15-1004), Add $470.25
Communication adapter, RS-232 to USB
(RSU100), Add $118.75
Cable, BG/CG/EG/BGI to Mitutoyo SPC (09-1047), Add $75.00
Cable, BG/CG/EG/BGI to RS-232, 25-pin (09-1048), Add $71.00
Cable, BG/CG/EG/BGI to RS-232, 9-pin (09-1048A), Add $71.25
Cable, set point, BG/BGI/CG to test stand (09-1090), Add $137.00
Hi / Lo limits indicator for BG/BGI/CG (11-1022), Add $85.50
Overload protection module, BG/CG/EG/BGI to test stand (11-1042), Add $185.25
Output option for EG (RS232, Mitutoyo, Analog) (EGRS), Add $190.00

Shipping Weight: 10 lbs.

Specifications:

  • Accuracy: ± 0.3% of full scale ±1 digit
  • Sampling rate: 30 readings/sec
  • Safe overload: 150% of capacity
  • Battery life: 8-10 hours per charge
  • Weight: 0.9 lbs (0.4 kg)
  • Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
  • Warranty: 3 years

Mark 10 EG Digital Force Gauges

Mark-10 EG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, hook, flat, user's manual, and NIST-traceable certificate of calibration

Mark 10 EG Digital Force Gauges

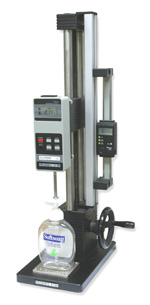

The Mark 10 EG force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a compression testing application, mounted to an ES30 test stand with optional items: digital travel display and extension rod

Reversible Housing - A Mark-10 Exclusive

All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.

Mark 10 BG Digital Force Gauges



Optional Equipment:

  • A wide range of test stands and gripping fixtures
  • Outputs package - RS-232, Mitutoyo, and analog outputs. Available at time of purchase or as an upgrade.
  • Overload protection module - Protects the force gauge against overloads during motorized tests, adjustable from 20 - 110% of gauge's full capacity. For use with Mark-10 motorized test stands.
  • Output cable - Send test data to a PC, statistical printer, or other data collector for further analysis.



Model Capacity x resolution Price
EG012 0.12 x 0.0001 lb, 50 x 0.05 gF, 0.5 x 0.0005 N, 110V $755.00 EG012
EG025 0.25 x 0.0002 lb, 100 x 0.1 gF, 1 x 0.001 N, 110V $755.00 EG025
EG05 0.5 x 0.0005 lb, 250 x 0.2 gF, 2.5 x 0.002 N, 110V $755.00 EG05
EG2 2 x 0.002 lb, 1 x 0.001 kgF, 10 x 0.01 N, 110V $660.00 EG2
EG5 5 x 0.005 lb, 2.5 x 0.002 kgF, 25 x 0.02 N, 110V $660.00 EG5
EG10 10 x 0.01 lb, 5 x 0.005 kgF, 50 x 0.05 N, 110V $660.00 EG10
EG20 20 x 0.02 lb, 10 x 0.01 kgF, 100 x 0.1 N, 110V $660.00 EG20
EG50 50 x 0.05 lb, 25 x 0.02 kgF, 250 x 0.2 N, 110V $660.00 EG50
EG200 200 x 0.2 lb, 100 x 0.1 kgF, 1000 x 1 N, 110V $755.00 EG200
EG500 500 x 0.5 lb, 250 x 0.2 kgF, 2500 x 2 N, 110V $755.00 EG500
Optional Equipment
EGRS Output option for EG (RS232, Mitutoyo, Analog) $190.00 EGRS
09-1047 Cable, EG/EG/EG/EGI to Mitutoyo SPC (requires EGRS) $75.00 09-1047
09-1048 Cable, EG/EG/EG/EGI to RS-232, 25-pin (requires EGRS) $71.00 09-1048
09-1048A Cable, EG/EG/EG/EGI to RS-232, 9-pin (requires EGRS) $71.25 09-1048A
09-1090 Cable, set point, EG/EGI/EG to test stand $137.00 09-1090
11-1042 Overload protection module, EG/EG/EG/EGI to test stand $185.25 11-1042

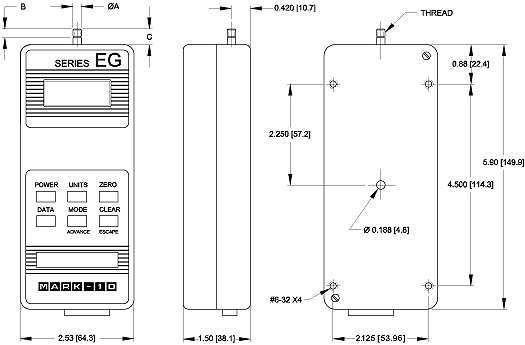

Dimensions:

Model ØA B C Thread
EG012-EG-200
0.2 (5.8)
0.19 (4.8
0.35 (8.9)
#10-32
EG500
0.312 (7.9)
0.44 (11.2)
0.60 (15.2)
5/16-18
