Mark 10 BG Digital Force Gauges
Authorized Dealer
The Mark-10 CG High Capacity Digital Force Gauge is ideal for heavy duty spring testing, destructive testing, and other force measurement applications requiring up to 1,000 lb of tensile or compressive force. These force gauges include all the advanced features of the Series BG, and are housed in ultra-rugged reversible aluminum housings for years of use in laboratory or factory environments

Mark 10 BG Digital Force Gauges

Mark 10 BG Digital Force Gauges

Model:

MESURGauge Data Collection Software
(15-1004), Add $470.25
Communication adapter, RS-232 to USB
(RSU100), Add $118.75
Cable, BG/CG/EG/BGI to Mitutoyo SPC
(09-1047), Add $75.00
Cable, BG/CG/EG/BGI to RS-232, 25-pin
(09-1048), Add $71.00
Cable, BG/CG/EG/BGI to RS-232, 9-pin
(09-1048A), Add $71.25
Cable, set point, BG/BGI/CG to test stand
(09-1090), Add $137.00
Hi / Lo limits indicator for BG/BGI/CG
(11-1022), Add $85.50
Overload protection module, BG/CG/EG/BGI
to test stand (11-1042), Add $185.25

Shipping Weight: 10 lbs.

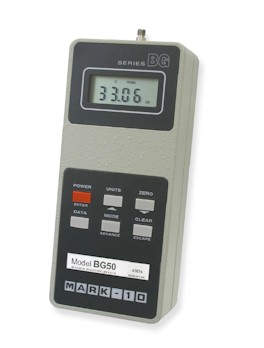

FREE UPS Ground Shipping with any Mark-10 purchase!The Mark 10 BG Digital Force Gauge is an advanced force measurement solution with sophisticated measurement capabilities, data outputs, computer control capabilities, and a long list of features and configurable settings. The BG can stop motorized test stand travel at user-selectable set points, and can also prevent force overload (when used with the ESM motorized test stand). Go / no go testing can also be accomplished with an optional plug-in hi / lo limits indicator.

Features:

  • Compatible with all Mark 10 test stands and grips
  • RS-232, Mitutoyo and analog outputs
  • GCL-Gauge Control Language for full computer control
  • Automatic timed output on RS-232
  • Dual set points with outputs
  • Averaging mode for average readings over time
  • External trigger for contact or switch testing and data capture
  • General purpose I/O for external device control
  • Programmable analog and digital filters
  • Selectable units of measurement
  • Programmable default configuration
  • Peak memory for tensile and compressive forces
  • Push-button calibration
  • Battery or AC operation
  • Programmable automatic shutoff
  • Reversible aluminum housing for handheld use or test stand mounting (see below)
  • Same housing size for all capacities

Specifications

  • Accuracy: ± 0.2% of full scale ±1 digit
  • Sampling rate: 65 readings/sec
  • Display rate: 25-10/sec, 65/sec in peak mode
  • Display: 4-1/2 digit, 0.3 inch (7.6 mm) high LCD
  • Indicators for low battery , units and mode of operation
  • Power: AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via "LO BAT" indicator and then will shut off the gauge
  • RS-232 - Fully configurable up to 9600 baud. Includes GCL (Gauge Control Language)
  • Mitutoyo output - Serial BCD suitable for all Mitutoyo SPC-compatible devices
  • Analog output - +/-VDC +/-0.25% of full scale at capacity. Positive for compression, negative for tension
  • Set point outuputs: 3 open collector lines (utilizing Mitutoyo lines)
  • General purpose I/O: 3 open collector outputs and one input (utilizing Mitutoyo lines)
  • Sensor detection: 0.010 (0.25 mm) maximum deflection at full load
  • Safe overload: 150% of capacity - display shows "==" at 110% and above
  • Battery life: 8-10 hours per charge
  • Weight - Gauge only: 0.9 lbs (0.4 kg)
  • Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
  • Warranty: 3 years

The Mark 10 BG digital force gauge is compatible with all Mark-10 force measurement test stands. It is shown here in a tensile testing application, mounted to an ESM motorized test stand with optional items: digital travel display, limit switches, and wedge grips.

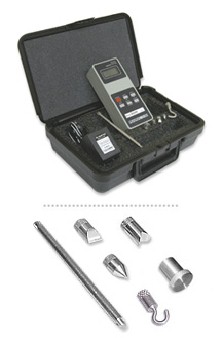

Mark 10 BG Digital Force Gauges Mark-10 BG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, chisel, cone, v-groove, hook, flat, extension rod, user's manual, and NIST-traceable certificate of calibration

Reversible Housing - A Mark-10 Exclusive

All Mark-10 force gauges have reversible housings that allow the user to use the gauge with the load cell shaft pointing up or down, without the inconvenience of upside-down buttons and display. The housing for Mark-10 BG and Series EG gauges is reversible by separating the two halves and reassembling them with just one connector - an extra bit of engineering that will make your testing setups quicker and more efficient.

Mark 10 BG Digital Force Gauges

Optional Equipment:

  • A wide range of test stands and gripping fixtures
  • Hi / lo limits indicator - Set limit conditions for a test - the indicator will display red lights for high and low limits, and a green light to indicate passing.
  • Overload protection module - Protects the force gauge against overloads during motorized tests, adjustable from 20 - 110% of gauge's full capacity. For use with Mark-10 motorized test stands.
  • Set point cable - Stops test stand travel at programmable high and low set points for tension and compression forces. For use with Mark-10 motorized test stands.
  • Output cable - Send test data to a PC, statistical printer, or other data collector for further analysis.



Model Capacity x resolution Price
BG012 0.12 x 0.00005 lb, 50 x 0.02 gF, 0.5 x 0.0002 N, 110V $1087.00 BG012
BG025 0.25 x 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N, 110V $1087.00 BG025
BG05 0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N, 110V $1087.00 BG05
BG2 2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N, 110V $945.00 BG2
BG5 5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N, 110V $945.00 BG5
BG10 10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N, 110V $945.00 BG10
BG20 20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N, 110V $945.00 BG20
BG50 50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N, 110V $945.00 BG50
BG100 100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N, 110V $945.00 BG100
BG200 200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N, 110V $1087.00 BG200
BG500 500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N, 110V $1087.00 BG500
Optional Equipment
09-1047 Cable, BG/CG/EG/BGI to Mitutoyo SPC $75.00 09-1047
09-1048 Cable, BG/CG/EG/BGI to RS-232, 25-pin $71.00 09-1048
09-1048A Cable, BG/CG/EG/BGI to RS-232, 9-pin $71.25 09-1048A
09-1090 Cable, set point, BG/BGI/CG to test stand $137.00 09-1090
11-1022 Hi / Lo limits indicator for BG/BGI/CG $85.50 11-1022
11-1042 Overload protection module, BG/CG/EG/BGI to test stand $185.25 11-1042

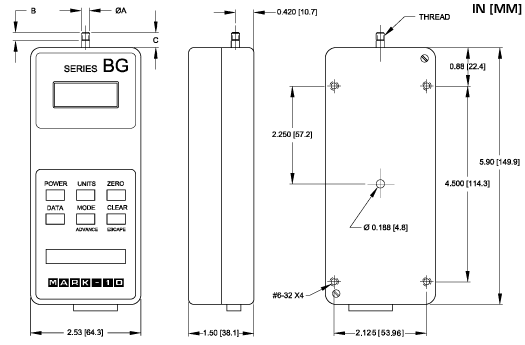

Dimensions:

Model ØA B C Thread
BG012-BG-200
0.2 (5.8)
0.19 (4.8
0.35 (8.9)
#10-32
BG500
0.312 (7.9)
0.44 (11.2)
0.60 (15.2)
5/16-18



Mark 10 BG Digital Force Gauges
