Mark 10 Series 7i Professional Force / Torque Gauge
Authorized Dealer
The 7i professional digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators
Mark 10 Series 7i Digital Force Gauges

View Specifications Cart

View Grips

View Test Stands

CALL NOW 800-832-0055

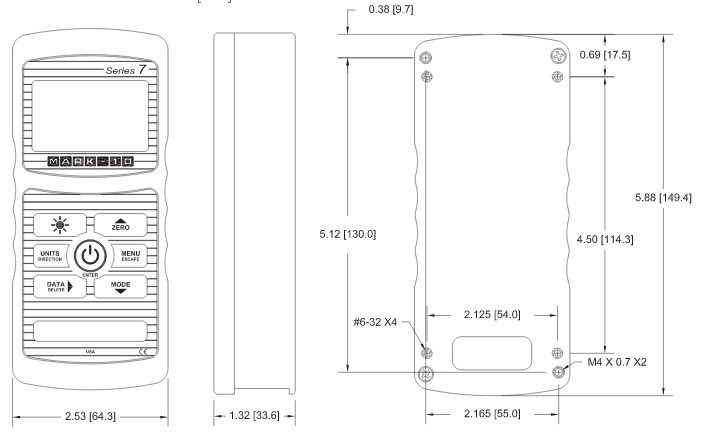

Specifications Chart

Mark 10 Model 7i Professional Force / Torque Gauge

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:


Mark-10 Plug & Test PTA Adapter , add $204.25

The 7i professional digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.

The 7i features an industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests. In addition to the 5i indicator's functions, the 7i features high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The 7i also features programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Coefficient of friction unit of measurement and a user-defined unit of measurement add flexibility for specialized applications. For productivity enhancement, the indicator also features automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection

The

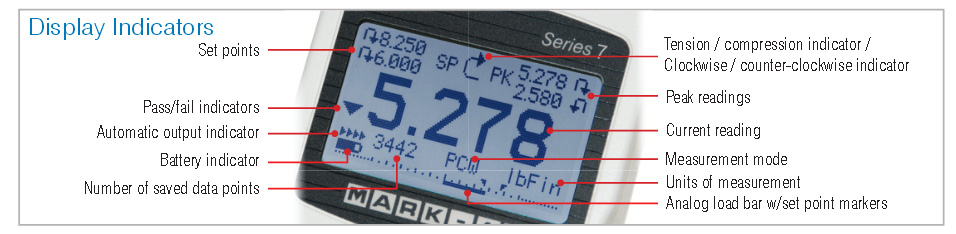

Features

  • Interchangeable force and torque sensors through Plug & TestTM technology
  • Sensor password protection, for preventing use of an unauthorized sensor
  • Password protection for individual keys and calibration
  • High-speed 14,000 Hz sampling rate
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • Individual data point memory for up to 5,000 readings, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Sample break detection with auto functions, including stopping movement of a Mark-10 motorized test stand
  • Automatic output / data storage / zeroing upon various event completions
  • 1st / 2nd peak detection
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
  • Programmable footswitch command string
  • Programmable set points, with indicators and outputs
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Password protection, configurable for individual keys and calibration

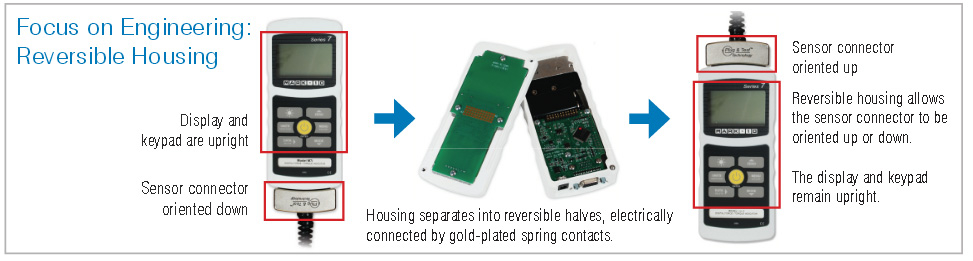

Focus on Engineering: Specialized Gauge Functions The 7i indicator features several functions typically found in more complex instruments, such as materials testers, data acquis ition systems, and PLCs. The following unique features are highlighted:

High Speed Data Capture & Storage
7i can capture and store up to 5,000 continuous data points at a rate of up to 14,000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others

Data from the storage buffer can be exported to data collection software such as MESUR TM gauge for further analysis and graphing. Using a 7i could replace cumbersome and expensive data acquisition hardware and software

Footswitch Command String
ntegrate your footswitch / automation system with a 7i indicator to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation

Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step

Automatic Data Output / Save / Zero / I/O Pin Toggle
Upon completion of several event types, the 7i can perform the following automatic functions: (1) Save the peak reading to memory, (2) Transmit the peak reading via USB, RS-232, or Mitutoyo output, (3) Zero the display, and (4) Toggle an I/O pin, for example to stop movement of an ESM301/ESM301L test stand


Applicable events include:
(1) Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall), (2) Completion of an averaging sequence, (3) External trigger (ex. switch activation), and (4) 1st / 2nd peak capture (ex. torque tool testing, tensile testing)

User-defined Unit of Measurement
The 7i displays 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name

Typical applications:
(1) To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm
(2) To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.

Plug & Testtm Force Sensors

Mark 10 Plug & TestTM Force Sensor

for the Mark 10 7i, 5i and Mark 10 3i digital indicators

R01
S-beam force sensors, tension and compression

R02
Miniature button force sensors, compression only

R03
Inline force sensors, tension and compression

R04
Miniature force sensors, tension and compression

R05
Fully enclosed smart sensors, push and pull

MR06
Wire Crimp Pull Sensor

Mark 10 Plug & TestTM Torque Sensor

for the Mark 10 7i, 5i and Mark 10 3i digital indicators

R50
Universal torque sensors

R51
Universal torque sensors with interchangeable attachments

R52
Tool calibration torque sensors

R53
Closure torque sensors

R54
Wrench extension torque sensors

R55
Square Drive Torque Sensors
Model Model 3i Model 5i Model 7i
Price Model 7i
$517.75
buy now
Model 7i
$850.25
buy now
Model 7i
$1,372.75
buy now
Accuracy (% of full scale + sensor) ±0.2% ±0.1% ±0.1%
Sampling rate 2,000 Hz 7,000 Hz 14,000 Hz
Resolution 1/1,000 up to 1/2,000, depending on sensor up to 1/2,000, depending on sensor
Compability with Mark-10 sensors via Plug & Test TM Technology YES YES YES
Data outputs USB USB, RS-232, Mitutoyo, analog USB, RS-232, Mitutoyo, analog
ASCII command set for external communication “?” command only (for continuous or individual data point output) YES YES
Data capture & storage capabilities* - 1,000 individually saved readings Continuous data capture at up to 14,000 Hz, with buffer, or individually saved readings, 5,000 readings total
Statistical calculations and output to PC - YES YES
Break detection* - - YES
1st / 2nd peak detection* - - YES
Programmable footswitch command string - - YES
Averaging mode - YES YES
External trigger mode - YES YES
Set points (for pass / fail indication) Yes with high / low indicators, markers on analog bar graph, no output Yes, with high / low indicators, markers on analog bar graph, and outputs Yes, with high / low indicators, markers on analog bar graph, and outputs
Password Protection, for keys and calibration - YES YES
Sensor password protection YES YES YES
Overload outputs, w/separate pins for each direction - YES YES
Units of measurement 3 5 7, including coefficient of friction unit and user-defined unit
Peaks and analog load bar always shown on display YES YES YES
Included items Same as Model 7i / 5i, with certificate of calibration without data Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data
* With configurable automatic data output, data storage, and zero function upon event completion. Can also stop travel of a mot orized test stand.
** Can stop travel of a motorized test stand upon event completion
