Imada MH-220 Horizontal Motorized Force Test Stand

Imada MH-220 motorized test stand - horizontal test stand

Imada MH-220 Motorized Horizontal Test Stand

This month only! FREE UPS Ground Shipping on ALL Imada test stands

Model:

Shipping Wt: 40 lbs.

MH-220BA  (Basic Type)
MH-220AC (Auto Cycle Type)

  • Max Load: 220 lbs
  • Stroke: 16"
  • Optional dynamic and static distance meter available

Speed Configurations

Standard Speed 0.4 ~4" / min
Optional High Speed 0.8 ~ 8 " / min
Optional Low Speed 0.2 ~ 2 " / min

Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada SW software to automate data collection from Imada force or torque gauges. Enter peak measurements into the spreadsheet and "zero" the gauge with a touch of the button. Minimize computer time and mouse useage
Click here for more info...

Imada motorized test stands offer consistent and reliable testing. Our Basic or Auto Cycle models are available in Standard, High, and Low speeds. They accept any of the standard range Imada force gauges and special attachments. Optional dynamic and static distance meters are also available

Basic Models: MH-220BA

Basic Models have top and bottom travel limits that can be adjusted for a precise range of movement. Set the travel limits, flip the direction switch up to move the cross head up to the top travel limit at the selected speed. Flip the direction switch down to send the cross head down to the bottom travel limit. The speed is set by a Speed Adjust knob. Quick Return and Emergency Stop features are also included.

Auto Cycle Models: MV-220AC

Auto cycle models have top and bottom travel limits that can be adjusted for a precise range of movement. Speed Adjust, Quick Return and Emergency Stop features are also included. These stands have three function modes

  • Manual Mode
    While the Direction switch is held up, the head moves up. Holding the switch down moves the cross head down. When the switch is released the head stops. This mode is ideal for positioning.
  • Single Cycle Mode
    When the Direction switch is pushed up, the cross head moves up at the desired speed, and when it reaches the top travel limit, it automatically goes back and stops at the bottom travel limit, completing one cycle. Pushing the switch down runs the cycle in reverse.
  • Auto Cycle Mode
    This mode is similar to Single Cycle mode, except that the cross head travels up and down repeating the cycle until either the Power or Emergency switches is turned off. This mode is ideal for applications such as fatigue testing.

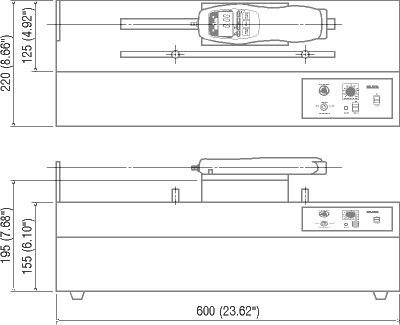

Imada MH-220 motorized horizontal test stand
