Imada Cedar DWT-200 Digital Torque Tester for Manual Torque Wrenches

Imada DWT-200, digital torque tester incorporates a proprietary peak down capture mode that calibrates manual torque wrenches up to 1,500 lbf-in with an accuracy of ± .5% F.S., ± 1 LSD. Other features include selectable Peak Down, Peak, or Real Time measurement modes and selectable units lbf-in, kgf-cm, N-m. more ...

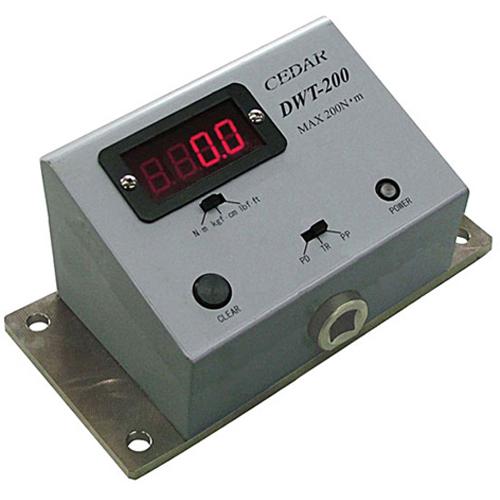

Imada Cedar DWT-200, digital torque tester
for Manual Torque Wrenches

FREE UPS Ground Shipping
(within the 48 continental US States)


Imada AP-200V Vise Mounting Plate for DWT-200, add $160.00

DWT-200, digital torque tester incorporates a proprietary peak down capture mode that calibrates manual torque wrenches up to 1,500 lbf-in with an accuracy of ± .5% F.S., ± 1 LSD. Other features include selectable Peak Down, Peak, or Real Time measurement modes and selectable units lbf-in, kgf-cm, N-m.

DWT-200 torque tester automatically captures the peak down torque, when the torque wrench clicks (breakaway torque), even though the operator may apply additional torque. This allows an unskilled operator to achieve the same accurate results as a skilled operator. The unit is rugged heavy-duty metal construction with 1/2" square drive, 3/8" square drive adapter, and runs about 20 hours continuously on four AA batteries. The optional vise mounting plate allows you to test anywhere there is a vise.

Do not use with power drivers or impact tools (Ask for DI-1M impact wrench torque tester).

Imada Cedar DWT-200 Digital Torque Tester Specs:

DWT-200 Ranges Accuracy: ±0.5% F.S. ±1 LSD
Capacity
lbf-in 70~1500
kgf-cm 70~2000
N-m 7.0~200.0

" class="specsRed">Imada DWT-200 Digital Torque Tester:

  • Proprietary peak down capture mode
  • Heavy duty metal constructionHeavy duty metal construction
  • lbf-in, kgf-cm, N-m selectable
  • Peak Down, Peak, and Real Time measuring modes (selectable)
  • Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
  • Clockwise operation
  • 1/2" square drive and
  • 3/8" square drive adapter
  • Auto power off (after 10 minutes of non use)
  • Runs on four AA batteries (about 20 hours continuous use)
  • Optional vise mounting plate

Designed to automatically capture the peak down torque, when the torque wrench clicks, even though additional torque may have been applied by the operator.
