Dillon APxtreme Dynamometer

Dillon -- Inventor of the mechanical dynamometer

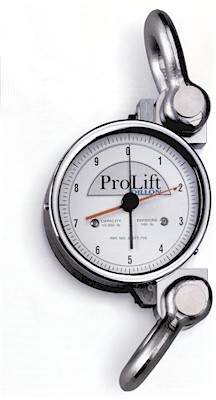

Dillon ProLift dynamometers

Dillon APxtreme Mechanical Dynamometer

FREE UPS Ground Shipping
(48 US States Only)

Model:

Adjustable Control Switch, Add $440
Cannot be supplied with Klaxon alarm. Not available as retrofit. For capacities through 20,000 lb (10,000 kg, 100,000 N) only

Klaxon Alarm Signal, Add $648
Cannot be supplied with adjustable control switch. Not available for retrofit. For capacities through 20,000 ounds (10,000 kg, 100,000 N) only

Ships with dynamometer, shackles and pins, maximum pointer, zero adjust for tare, carrying case or crate, calibration certificate with curve of readings and certificate of conformance.



The Dillon APxtreme dynamometer was designed with input from a lift specialist with truly critical demands -- a nuclear fuel handler. The APxtreme takes rock solid performance and reliability of Dillon's legendary AP dynamometer to new heights. The APxtreme dynamometer is perfect for other demanding environments such as critical military duty, crane lifts and ultra-sensitive commercial environments.



Dillon ProLift dynamometers

Engineered for Precision and durability

Great products begin with great design. Dillon adopts a highly responsible and cautious approach to its design engineering, backed up by the use of sophisticated, modern techniques, such as Finite Element Analysis (FEA). Dillon's philosophy results in the safest, most reliable and most accurate dynamometers available . Given the critical nature of APxtreme applications, for example, the design of every capacity and configuration was confirmed to achieve a 5:1 minimum ultimate safety factor via destructive testing. In fact, the APxtreme load bars are designed to greatly surpass this hurdle.

Dillon takes enormous care in choosing materials used for its products. Only the best metals and coatings are selected against our rigid engineering standards and procedures. Taking this care a step further, Dillon manufactures APxtreme load bars from only premium grade, certified and traceable E4340 aircraft quality alloy steel. Each and every APxtreme load bar must pass stringent Magnetic Particle Inspection after machining. APxtreme load bars and shackles are electroless nickel plated, a treatment that offers both exceptional corrosion protection and typically permits periodicc future inspections without costly coating removal.

APxtreme dynamometers undergo proof loading to 150% of capacity to confirm strength, followed by a " three-run" calibration procedure accuracy.

Feature for feature -- APxtreme is the Premium dynamometer

Dillon sets the standard for mechanical dynamometers. The APxtreme has the same great basic features of the Dillon AP dynamometer, which include:

  • Anti-parallax dial and pointer guarantees accurate readings from any angle
  • Industry leading accuracy to within 0.5% of capacity
  • Choice of 5" or 10" (125 or 250 mm) dial sizes
  • Tight heat treatment tolerances insure strength and long life
  • Premium bearings facilitiate smooth, repeatable operation
  • Simple zero control tares easily
  • Maximum hold indicator holds peak load
  • Durable composite plastic or cast aluminum case resists blows
  • Wide operating temperature range (-50 to 140 F)

The APxtreme takes performance and reliability to new heights addressing the needs of critical lift applications with these enhancements:

  • 5:1 ultimate safety factor in all capacities
  • Exclusive material selection using even tighter tolerances
  • Rounded pressure bar ends reduce binding with lift rigging
  • Electroless nickel plating -- extra corrosion resistance
  • Non-destructive examination of key components
  • Lower weight and reduced headroom loss in high capacities
  • Anchor shackles in all capacities
  • Every unit proof-load tested to 150% of capacity
  • Calibration confirmed by 3 runs
  • Optional alarm and trip-point switching
  • Additional specs

Dillon ProLift storage boxed
Storage boxes for Dillon APxtreme series mechanical dynamometers

Dillon ProLift auto control switch
Dillon APxtreme auto control switch
This force switch allows automated control of motors, hopper grates, conveyors or it can sound remote alarms. Preset at any desired load point

Dillon ProLift Klaxon signal alarm
Dillon APxtreme Klaxon signal alarm
Mounted on rear of the APxtreme dynamometer and sounds an alarm at a preset load point

Dillon ProLift Zero Positioning
Dillon APxtreme Zero Positioning
The standard zero position is 9 o'clock for both the 5" and 10" dial sizes. Capacities up to 20,000 lb (10000 kg) can be supplied with the zero at 13, 3 or 6 position if specified at the time of ordering. Photo shows a non-standard 12 o'clock zero position



FREE UPS Ground Shipping
(48 US States Only)




Pound Part Number

Capacities & Dial Divisions (lb)

Kilogram Part Number

Capacities & Dial Divisions (kg)

Newton Part Number

Capacities & Dial Divisions
(N)

Weight / Ship Wt
(lbs)

Price

5" DIAL

LOW



51695-0011

500 x 5

51695-0144

200 x 2

51695-0185

2000 x 20

9 / 15

$713

51695-0029

1000 x 10

51695-0136

500 x 5

51695-0193

5000 x 50

9 / 15

$713

51695-0037

2000 x 20

51695-0151

1000 x 10

51695-0201

10000 x 100

9 / 15

$7313

51695-0045

4000 x 25

51695-0128

2000 x 20

51695-0219

20000 x 200

9 /15

$735

51695-0052

5000 x 50

n/a

n/a

n/a

n/a

9 / 15

$735

51695-0060

6000 x 50

n/a

n/a

n/a

n/a

9 / 15

$795

51695-0078

8000 x 50

51695-0169

4000 x 25

51695-0227

40000 x 250

9 / 15

$795

51695-0086

10,000 x 100

51695-0177

5000 x 50

51695-0235

50000 x 500

9 / 15

$795

MED

51695-0094

15,000 x 100

n/a

n/a

n/a

n/a

14 / 45

$1075

51695-0102

20,000 x 200

51695-0110

10,000 x 100

51695-0243

100,000 x 1000

14 / 45

$1075

10" DIAL

LOW

51700-0014

500 x 2

51700-0147

200 x 1

51700-0188

2000 x 10

14 / 26

$920

51700-0022

1000 x 5

51700-0139

200 x 1

51700-0196

5000 x 20

14 / 26

$920

51700-0030

2000 x 10

51700-0154

1000 x 5

51700-0204

10000 x 50

14 / 26

$920

51700-0048

4000 x 20

51700-0121

2000 x 10

51700-0212

20000 x 100

14 / 26

$941

51700-0063

6000 x 25

n/a

n/a

n/a

n/a

14 / 26

$1002

51700-0089

10,000 x 50

51700-0170

5000 x 20

51700-0238

50000 x 250

14 / 26

$1002

MED

51700-0097

15,000 x 100

n/a

n/a

n/a

n/a

19 / 45

$1333

51700-0105

20,000 x 100

51700-0113

10,000 x 50

51700-0246

100,000 x 500

19 / 45

$1333

HIGH

52160-0015

30,000 x 200

52160-0049

15,000 x 100

52160-0064

150,000 x 1000

165 / 215

$2657

52160-0023

40,000 x 200

52160-0056

20,000 x 100

52160-0072

200,000 x 1000

165 / 215

$2743

52160-0031

50,000 x 200

n/a

n/a

n/a

n/a

165 / 215

$2829

FREE UPS Ground Shipping
(48 US States Only)



Specifications

  • Accuracy: +/-0.5% of capacity
  • Temperature Range: -50 to 140 F (-45 to 60 C)
  • Construction:
    • Pressure bar -- certifried & traceable aircraft quality E4340 steel
    • Shackles and pins:
      • Low capacity range: A4140 forged steel (pins machined from AQ E4340 steel)
      • Med/High capacity ranges: Skookum Gold Standard or Crosby G-2140 Grade B allow steel (med capacity pins from AQ E4340 steel)
  • Heat treatment:
    • Pressure bar: HRC 36-40
    • Low capacity standard shackles: HRC 34-40
    • Low capacity optional schackles: BR 235-270
    • Low/Med capacity shackle pins: HRC 46-50
  • Proof load: 150% proof load applied to pressure bar after machining and prior to nondestructive testing
  • Corrosion protection: Electroless nickel plating from 0.0002 to 0.0005" offers excellent corrosion resistance, typically permits future inspections and eliminates hydrogen embrittlement concerns. Applied to pressure bar, shackles and pins.
  • Zero control: zero up to 20% of capacity. Zeroed load must be considered as part of ultimate load
  • Calibration: traceable to NIST with 3 confirmation runs
  • Documentation: includes User's Guide, certificate of conformance and signed calibration certificate with curve of readings
  • Carry case/crate:
    • Low/Med capacity 5" dial - includes plastic carry case
    • Low/Med capacity 10" dial - steel carry case
    • All high capacity - includes reinforced plywood crate
  • Optional Klaxon signal alarm: rated at 104 dB at 1 foot. Must be installed at time of manufacturer. Uses 2 "D" batteries
  • Optional Auto control switch: Rated 250 VAC or 28 VDC, 5 amps, resistive. Must be installed at time of manufacture
  • Periodic proof loads - controlled 150% proof loads permitted annually

Shipping & Packing (approximate weight)



Net Weight

Shipping Weight

Shippping Box / Crate

5" Low & med capacities

9 lb

15 lb

16" x 11" x 7"

10" Low & med capacities

14 lb

26 lb

14" x 14" x 7"

15000 - 20000 lb (10000 kg) medium capacity, 5" Dial

14 lb

45 lb

22" x 13.5" x 10.5"

15000 - 20000 lb (10000 kg) medium capacity, 10" Dial

19 lb

45 lb

22" x 13.5" x 10.5"

30,000-50000 lb (15000-20000 kg) high capacity

60 lb

98 lb

33.5" x 14" x 11.5 "

100,000 lb high capacity

165 lb

215 lb

26.5" x 14" x 10" and 27" x 18.5" x 9"
