Chatillon HB-Series Mechanical Beam Scales

Chatillon Force Gauges and Scales
Chatillon HB-1000 Portable industrial scales are available in capacities of 1000 pounds or 500 kilograms. Heavy duty cast iron construction with wheels for portability. Certified Legal for Trade.

Beam Scales: Beam Scales from Chatillon - Chatillon HB-1000 Portable

Legal For Trade
Have Questions?
Call USoremail Us
Our Staff will be glad to help

Chatillon HB-Series Mechanical Beam Scales

Model

Shipping Weight: 225 lbs.

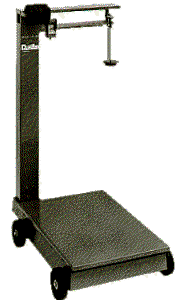

The HB Series portable beam scale features a rugged cast-iron construction with corrosion-resistant loops, bearings and noise irons, making it ideal for industrial plants, warehouses and terminals.

The HB-1000 meets the requirements for Handbook 44 Class lll and is suitable for "Legal for Trade" applications.

The HB-1000 features a large 18 x 17-inch (457 x 685 mm) flatform. The graduated beam may be read from both sides. Graduations are black on a matte background. Weight is read from the center of poise. Wheels enable you to move the scale to different locations.

  • Can be read from front or rear, Graduations are black on matte background, Weight read at center of poise
  • Designed for use in plant, terminal or warehouse, can be rolled to work site by one person, narrow body for use in narrow aisles
  • Offset column permits use of entire platform for overhanging loads
  • Platform size: 18" x 27"
  • Shipping weight: 160 lb
  • Cast iron construction of base, platform, levers and wheels for added strength and rigidity
  • Self-aligning bearings on all four load pivots and at the beam fulcrum
  • Loops, bearings and nose irons are corrosion resistant and beam head has friction point side caps, beam is matte aluminum
  • Thumb grip lock screw poise design and case, slotted counterweights
  • Model HB1000-BA conforms to NIST Handbook 44 Class III Certificate of Conformance No. 88-151PN, issued under the National Type Evaluation Program of the National Conference on Weights and Measures. It is "Legal for Trade" subject to on-site verifications by local Weights and Measures jurisdictions
  • 1 Year Manufacture Warranty

Model HB1000-BA HB1000-BM HB1000-BAM
Price $816.07
$816.07
$1017.00
Capacity 1000 lb 500 kg 1000 lb
500 kg
Material Die-Cast Zinc Die-Cast Zinc Aluminum
Beam Graduations 100 lb x 0.5 lb 50 kg x 0.25 kg 100 lb x 0.5 lb
50 kg x 0.25 kg
Legal for Trade NIST Class III #88-151PN NIST Class III #88-151PN NIST Class III #88-151PN
