Shimpo FGV-XY DART 2.0 Digital Force Gauges SHIMPO Equipment
Authorized Dealer
The Series FGV-XY DART 2.0 Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement

FGV-500HXY , FGV-1000HXY
Call New

Specifications Chart

Grips and Adapters

Shimpo FGE-XY Digital Force Gauges

Price:$755.25


Shimpo NIST Traceable Certificate of Calibration for 0.5 to 100 lbs, Includes Data Points, add $169.29

Shimpo NIST-FG-HX Traceable Certificate of Calibration for 200 to 1000 lbs, Includes Data Points, add $261.91

View Spec Cart

DART 2.0 Digital Force Gauge

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications.

The Series FGV-XY DART 2.0 Force Gauges combine a rugged, ergonomic and compact design to provide a complete force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

On-board statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Units include the free TORIEMON-USB software and USB cable allowing further data analysis on a PC. The 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C and analog outputs provide the DART 2.0 with maximum communication flexibility. Models are available from 0.5 lbs to 200 lb ranges providing a large offering for various testing requirements.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • High accuracy +/-0.2% F.S., ideal for strict tolerances
  • Measure and record compression and tension tests- permits true “push-pull” testing
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Maximum data collection flexibility with 3 outputs: USB, RS-232 & Analog Output
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • Rugged, ergonomic die cast aluminum construction allows usage on production floor
  • On board statistics provides immediate results and analysis of test data
  • Variable display response rate aids viewing readings
  • Expanded memory for reviewing data points and transferring to PC/Laptop
  • Built-in Hi-Lo Comparator function provides user with easy ‘Go-No Go’ Testing
  • Quick retrieval of peak measurement with a single push button
  • Flexible user preference with one button selection of up to 4 engineering units
  • Dual power capable with rechargeable battery or AC line voltage
  • Field Calibration through keypad eliminates down time
  • CE Mark
Model FGV-0.5XY FGV-1XY FGV-2XY FGV-5XY FGV-10XY FGV-20XY FGV-50XY FGV-100XY FGV-200XY
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$699.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$743.60
buy now
Capacity X Readability 0.5 x 0.001 lb 1 x 0.001 lb 2 x 0.001 lb 5 x 0.001 lb 10 x 0.01 lb 20 x 0.01 lb 50 x 0.01 lb 100 x 0.1 lb 200 x 0.1 lb
200 x 0.1 g 500 x 0.1 g 1000 x 1 g 2 x 0.001 Kg 5 x 0.001 Kg 10 x 0.01 Kg 20 x 0.01 Kg 50 x 0.01 Kg 100 x 0.1 Kg
2 x 0.001 N 5 x 0.001 N 10 x 0.01 N 20 x 0.01 N 50 x 0.01 N 100 x 0.1 N 200 x 0.1 N 500 x 0.1 N 1000 x 1 N
8 x 0.01 oz 16 x 0.01 oz 32 x 0.01 oz - - - - - -
Thread M4 M4 M6 M6 M6 M6 M6 M6 M6
Accuracy ±0.2% F.S. @ 73°F (23°C)
Selectable Units oz, g, kg, N and lb. (Depending on Range)
Overload Capacity 200% of F.S. (200 lb.: 150% F.S.)
Data Sampling Rate 1000 Hz
Display 4-Digit LCD, 0.5” (12 mm) high, Units / 0.29” (7 mm). Reversible by the push of a button. Minus sign for tension
Display Update Rate 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power Rechargeable Ni-MH battery or universal AC adapter/charger (100-240VAC, 50-60Hz)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Output Analog: ±1 VDC (through a 12 bit D/A converter)
RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control
USB: Allows communication between FGV-XY and Windows® PC Software with TORIEMON-USB via USB cable (included)
Overload Comparator: Open-collector output (Max DC30V/5mA)
Battery Charge Approximately 12 hours continuous use per full charge
Recharge Time Approximately 18 hours (when fully discharged)
Temperature Limits 32 - 104°F (0 - 40°C)
Dimensions 5.8” x 3” x 1.5” (147 x 75 x 38 mm)
Product Weight 1 lb 1.1 lb
Package Weight 2.4 lb 2.6 lb 2.75 lb
Certification CE, RoHS
Warranty 2 year

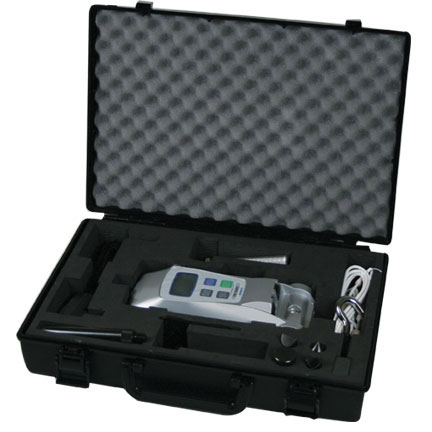

Included Accessories AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable.



Model FGV-500HXY FGV-1000HXY
FGV-1000HXY - 1000 x 0.1 lb
$963.60
buy now
FGV-1000HXY - 1000 x 0.1 lb
$1,313.06
buy now
Capacity X Readability 500 x 0.1 lb 1000 x 0.1 lb
250 x 0.1 Kg 453.6 x 0.1 Kg
2500 x 1 N 4448 x 1 N
Thread M10 M10
Accuracy ±0.2% F.S.
Selectable Units kg, N and lb. (Depending on Range)
Overload Capacity 150% of F.S.
Data Sampling Rate 1000 Hz
Display Four digit LCD, .47” high (12 mm) with various indicators including tension and low battery indication (reversible) Minus sign for tension
Display Update Rate 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power Rechargeable Ni-Cad batteries (included) or AC adapter/charger (included)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Output Analog: ±1 VDC (through a 12 bit D/A converter)
RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control
USB: Allows communication between FGV-XY and Windows® PC Software with TORIEMON-USB via USB cable (included)
Overload Comparator: Open-collector output (Max DC30V/5mA)
Battery Charge 17 hours (when fully charged)
Recharge Time Approximately 18 hours (when fully discharged)
Temperature Limits 32 - 104°F (0 - 40°C)
Dimensions 8.43” x 3.23” x 2.25” (214 x 82 x 57 mm)
Product Weight 2 lb 2.65 lb
Package Weight 7.45 lb 8.25 lb
Certification CE, RoHS
Warranty 2 year
Included Accessories AC adapter/charger, carrying case, 2 handles, metric thread to inch adapter and attachments (flat head, hook, chisel, notched head, cone head, extension rod), USB cable. Note: software available at for free download

FGV-0.5XY, FGV-1XY, FGV-2XY, FGV-5XY, FGV-10XY, FGV-20XY, FGV-50XY, FGV-100XY, FGV-200XY

FGV-500HXY, FGV-1000HXY

More about the FGV-HXY models

High Capacity Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications

The Series FGV-HXY Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations and provide fast access to maximum, minimum, average and standard deviation data. Models include the free TORIEMON software and USB cable allowing further data analysis on a PC. The FGV-HXY’s 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.

  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
  • Measure and record compression and tension tests. Permits true “push-pull” testing
  • Included handle attachments aid in user testing
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • Variable display response rate aids viewing readings
  • Quick retrieval of peak measurement with a single push button in test stand
  • Flexible user preference with one button selection of engineering units
  • Field calibration through keypad eliminates down time
  • On board statistics provides immediate results and analysis of test data
  • Dual power capable with rechargeable battery or AC line voltage
  • Include data collection flexibility with 3 outputs: USB, RS-232 & Analog Output
  • Expanded memory for reviewing data points and transferring to PC/Laptop
  • Provide Built-In Hi-Lo Comparator function provides user with easy ‘Go-No Go’ Testing
  • CE Mark & RoHs Approval
Grips and Adapters
Chisel Adapter
Chisel Adapter
Cone Head Adapter
Cone Head Adapter
Flat Head Adapter
Flat Head Adapter
Notched Head Adapter
Notched Head Adapter
Extension Rod Adapters
Extension Rod Adapters
Hook Adapter
Hook Adapter
Standard Adapter Sets
Standard Adapter Sets
Compression Plates
Compression Plates
Film Grips
Film Grips
Fine Point Grips
Fine Point Grips
Flat Tensile Grip
Flat Tensile Grip
Heavy-duty Tensile Grip
Heavy-duty Tensile Grip
Jacobs Chuck Grip
Jacobs Chuck Grip
Pin Head Grip
Pin Head Grip
Puncture Test Attachment
Puncture Test Attachment
Spool Grips
Spool Grip
Tape Grip
Tape Grip
Wedge Grip
Wedge Grips
Wire Terminal Test Adapter
Wire Terminal Test Adapter
Clevis Grip
Clevis Grip
Fabric Grip
Fabric Grip
Cord/Twine Grip
Cord Twine Grip
Adhesive Test Plates
Adhesive Test Plates
