Shimpo FGE-XY Digital Force Gauges SHIMPO Equipment
Authorized Dealer
The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

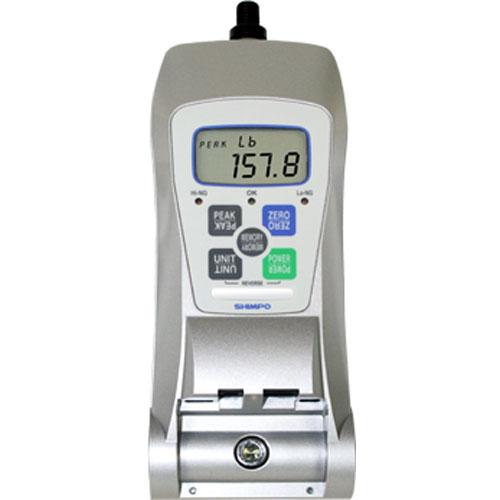

FGE-500HXY
Call New

Specifications Chart

Grips and Adapters

Shimpo FGE-XY Digital Force Gauges

Price:$589.00


Shimpo NIST Traceable Certificate of Calibration for 0.5 to 100 lbs, Includes Data Points, add $169.29

Shimpo NIST-FG-HX Traceable Certificate of Calibration for 200 to 1000 lbs, Includes Data Points, add $261.91

View Spec Cart

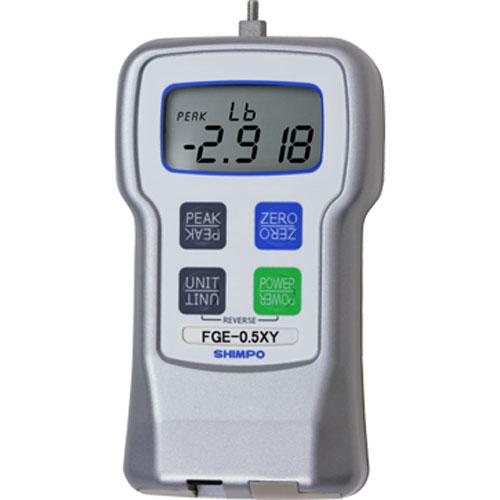

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications

The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Simple one button adjustment alters units, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 200 lb ranges providing a large offering for various testing requirements.

Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
  • Measure and record compression and tension tests- permits true “push-pull” testing
  • Real time or Peak Hold mode easily selectable with a single button push
  • 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • 1 million operation load cell with superior overload protection provides a long-life, damage free product
  • Rugged, ergonomic die cast aluminum construction allows usage on production floor
  • Variable display response rate aids viewing readings
  • Flexible user preference with one button selection of engineering units
  • Dual power capable with rechargeable battery or AC line voltage
  • CE Mark & RoHS Approval
Model FGE-0.5XY FGE-1XY FGE-2XY FGE-5XY FGE-10XY FGE-20XY FGE-50XY FGE-100XY FGE-200XY FGE-200XY
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$545.60
buy now
FGE-500HXY - 500 x 0.1 lb
$717.20
buy now
FGE-500HXY - 500 x 0.1 lb
$822.80
buy now
Capacity X Readability 0.5 x 0.001 lb 1 x 0.001 lb 2 x 0.001 lb 5 x 0.001 lb 10 x 0.01 lb 20 x 0.01 lb 50 x 0.01 lb 100 x 0.1 lb 200 x 0.1 lb 500 x 0.1 lb
200 x 0.1 g 500 x 0.1 g 1000 x 1 g 2 x 0.001 Kg 5 x 0.001 Kg 10 x 0.01 Kg 20 x 0.01 Kg 50 x 0.01 Kg 100 x 0.1 Kg 250 x 0.1 Kg
2 x 0.001 N 5 x 0.001 N 10 x 0.01 N 20 x 0.01 N 50 x 0.01 N 100 x 0.1 N 200 x 0.1 N 500 x 0.1 N 1000 x 1 N 2500 x 1 N
8 x 0.01 oz 16 x 0.01 oz 32 x 0.01 oz - - - - - - -
Thread M4 M4 M6 M6 M6 M6 M6 M6 M6 M10
Accuracy ±0.2% F.S. @ 73°F (23°C)
Selectable Units oz, g, kg, N and lb. (Depending on Range)
Overload Capacity 200% of F.S. (200 lb and up: 150% F.S.)
Data Sampling Rate 1000 Hz
Display 4-Digit LCD, 0.5” (12 mm) high, Units 0.29” (7 mm). Reversible. Minus sign for tension
Display Update Rate 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Power Rechargeable Ni-MH battery or universal AC adapter/charger (100 - 240 VAC, 50/60 Hz)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Battery Charge Approximately 12 hours continuous use per full charge
Recharge Time Approximately 18 hours (when fully discharged)
Temperature Limits 32 - 104°F (0 - 40°C)

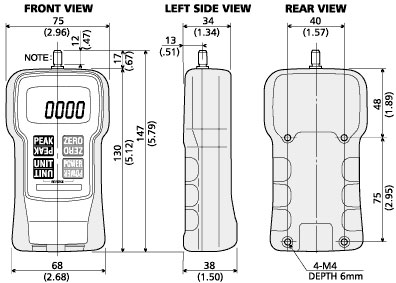

Dimensions 5.8 x 3 x 1.5” (147 x 75 x 38 mm)
Product Weight 1 lb 1.1 lb 2 lb
Package Weight 2.25 lb 2.4 lb 2.75 lb 7.45 lb
Certification CE, RoHS
Warranty 1 year
Included Accessories AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, metric to inch thread adapter, extension rod
FGE-500HXY AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case

FGE-0.5XY, FGE-1XY, FGE-2XY, FGE-5XY, FGE-10XY, FGE-20XY, FGE-50XY, FGE-100XY, FGE-200XY

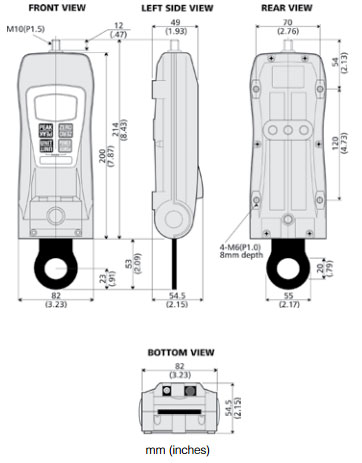

FGE-500HXY

Grips and Adapters
Chisel Adapter
Chisel Adapter
Cone Head Adapter
Cone Head Adapter
Flat Head Adapter
Flat Head Adapter
Notched Head Adapter
Notched Head Adapter
Extension Rod Adapters
Extension Rod Adapters
Hook Adapter
Hook Adapter
Standard Adapter Sets
Standard Adapter Sets
Compression Plates
Compression Plates
Film Grips
Film Grips
Fine Point Grips
Fine Point Grips
Flat Tensile Grip
Flat Tensile Grip
Heavy-duty Tensile Grip
Heavy-duty Tensile Grip
Jacobs Chuck Grip
Jacobs Chuck Grip
Pin Head Grip
Pin Head Grip
Puncture Test Attachment
Puncture Test Attachment
Spool Grips
Spool Grip
Tape Grip
Tape Grip
Wedge Grip
Wedge Grips
Wire Terminal Test Adapter
Wire Terminal Test Adapter
Clevis Grip
Clevis Grip
Fabric Grip
Fabric Grip
Cord/Twine Grip
Cord Twine Grip
Adhesive Test Plates
Adhesive Test Plates
