Indicator And Base Come Fully Calibrated		Legal For Trade FM Aproved Specifications Chart

Roughdeck-SS Series

The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance.

A rigid six-inch, 304 stainless steel channel frame and smooth top plate provide a durable scale deck. For added corrosion resistance, four NTEP Certified stainless steel load cells, a stainless steel TuffSeal summing junction box and EL147HE hostile environment load cell cable complete the RoughDeck SS package.

The channel frame provides added protection by enclosing the load cells, cable and junction box inside, away from chemicals and other industrial elements.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

• Rugged non-corrosive design
• 304 stainless steel construction
• Rigid stainless steel channel frame
• Four stainless steel NTEP Certified shear-beam load cells
• 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
• Side access junction box
• TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
• Smooth stainless steel deck
• Four adjustable stainless steel SUREFOOT™ support feet

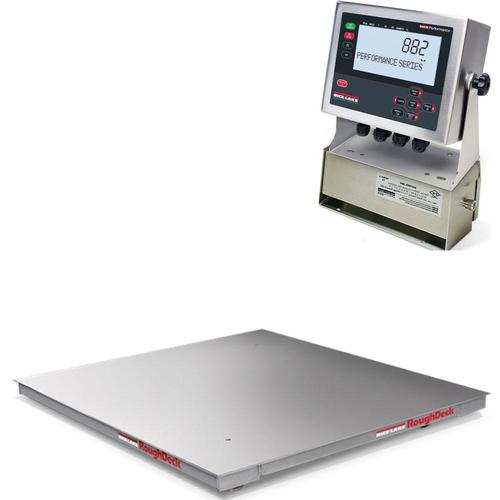

Rice Lake Roughdeck-SS 320IS Stainless Steel FM Approved Legal for Trade Floor Scales

Base and Indicator

Price From: $4134.80

Select Scale 2.5 x 2.5 ft - 2000 x 0.4 lb $4,134.80 3 x 3 ft - 1000 x 0.2 lb $4,431.80 3 x 3 ft - 2000 x 0.4 lb $4,431.80 4 x 4 ft - 1000 x 0.2 lb $5,385.80 4 x 4 ft - 5000 x 1 lb $5,385.80 4 x 4 ft - 10000 x 2 lb $6,609.80 4 x 5 ft - 5000 x 1 lb $5,898.80 4 x 5 ft - 10000 x 2 lb $7,941.80 5 x 5 ft - 5000 x 1 lb $6,384.80 5 x 5 ft - 10000 x 2 lb $8,756.30 5 x 7 ft - 5000 x 1 lb $8,310.80 5 x 7 ft - 10000 x 2 lb $10,929.80

	Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X, add $121.50
	Rice Lake 78027 Fiber optic, duplex cable 200 ft for 320IS, CW-90 and CW90X, add $243.00
	Rice Lake Module, I/O Fiber Interface for 320IS Plus. 4 Digital Inputs, 4 Relay Outputs, 2 Analog Outputs and 2 Comm Ports, add $1,165.50
	Rice Lake Timer Relay Kit Includes din rail, Timer Relay for Latching and Mount, add $333.00
	Second IS-6 V Battery Option with Cable Adapter, add $490.50

Base Only Options

320IS Intrinsically-Safe Digital Weight Indicator

The intrinsically-safe, auto-ranging power supply is designed to meet 320IS entity parameters and safely mount in hazardous areas. With this option, wiring is simplified to a single AC conduit line and seal from the safe area—barrier strips are no longer necessary. When required, an entity approved battery power supply is also available.

For applications that require increased functionality, choose the 320IS Plus. It combines the same great features of the 320IS, but includes a full numeric keypad and keyboard tare. The 320IS Plus is also equipped with standard count mode.

Expand the flexibility of the 320IS and the 320IS Plus with the optional safe area I/O Module, featuring two serial ports, two analog outputs, four digital inputs and four elay contact outputs, allowing communication with printers, computers and other peripherals. Both models are equipped with a duplex fiber optic port for electricallyisolated communication with the I/O Module.

For IS entity approval, Rice Lake offers hundreds of FM-approved load cells that interface with the 320IS and 320IS Plus indicators in accordance with the official FM control drawings.

Standard Features
• Bright LED display
• Power ON/OFF, battery save mode
• Stainless steel NEMA 4X/IP66 enclosure
• Front-panel digital calibration
• Excitation for 4 x 350Ù or 8 x 700Ù load cells
• Gross/Tare/Net computation
• Tilt stand
• Duplex fiber optic interface
• Factory Mutual (FM) entity approved
• Class I Division I Groups A, B, C, D and Class II Division 1 Groups E, F, G and Class III; T-Rating: T4
• NTEP Certified

Options/Accessories
• 115/230 VAC auto ranging power supply
• 6V battery and charger
• I/O Module, 2 serial ports configurable as RS-485, RS-422, RS-232 or 20mA, 2 analog outputs, 4 digital inputs and 4 relay contact outputs (AC powered)
• IS cable: hazardous environment load cell cable
• Fiber optic cable
• Timer relay for latching (320IS)
