Rice Lake Roughdeck BDP Stainless Steel Drum Scales |
 |
| When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck® BDP floor scales' low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.
|
| Rice Lake Scales > Floor Scales > Drum Scales |
When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck® BDP floor scales' low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

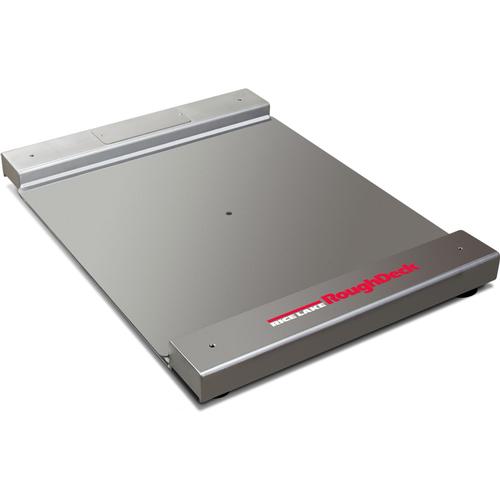

The RoughDeck® BDP can be used as a stationary or portable scale
and features a low-profile design that allows optional access ramps
to sit flush with the ground for smooth loading of barrels and
drums. The BDP is equipped with live side rails so large
items and pallets that exceed the platform dimensions can be
accurately weighed.

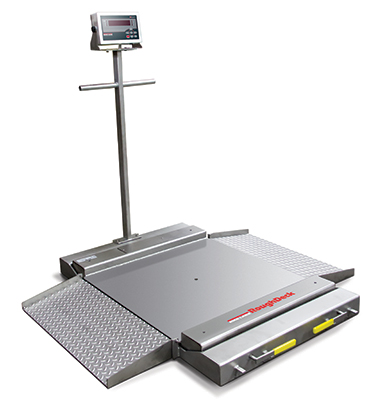

The stationary BDP can be easily converted into a portable scale
with the optional portability kit. The kit is compact and sits below
the live side rails. The caster-engaging mechanism in the portability
frame permits operators to effortlessly move the BDP from one
location to another. When ramps are attached to the portability
frame, the hinges allow the operator to rest the ramps on the scale
platform while in-motion.
The BDP can be paired with any Rice Lake indicator. The indicator
is conveniently attached to the portability frame pedastal, which
is separate from the live weighing platform,
eliminating interference when zeroing the scale.
- Live siderails
- Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
- 4 adjustable stainless steel SUREFOOT? support feet
- TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
- Alloy steel load cells
- Smooth top plate
- Stainless steel or stainless steel with welded-seal (IP67) load cells
|
| Model |
77967 |
77968 |
77969 |
77970 |
77971 |
77972 |
77973 |
77974 |
$3,164.70
|
$3,164.70
|
$3,257.10
|
$3,257.10
|
$3,495.80
|
$3,495.80
|
$3,572.80
|
$3,572.80
|
Size (W x L)
Not Including Side Rails |
30 in x 31 in |
30 in x 31 in |
36 in x 37 in |
36 in x 37 in |
30 in x 31 in |
30 in x 31 in |
36 in x 37 in |
36 in x 37 in |
| Capacity x Readability |
1000 x 0.5 lb |
2500 x 1 lb
| 1000 x 0.5 lb |
2500 x 1 lb
| 1000 x 0.5 lb |
2500 x 1 lb
| 1000 x 0.5 lb |
2500 x 1 lb
|
| 500 x 0.2 kg |
1000 x 0.5 kg |
500 x 0.2 kg |
1000 x 0.5 kg |
500 x 0.2 kg |
1000 x 0.5 kg |
500 x 0.2 kg |
1000 x 0.5 kg |
| Legal For Trade |
NTEP CC 03-060, Class III 2,500d
Measurement Canada AM-5578 (500 kg) Class III 2,500 d (1000 kg) Class III 2,000 d |
| Load Cells |
Stainless Steel |
Stainless Steel Welded-Seal (IP67) Load Cells |
| End Load Capacity |
1000 lb: 100% full scale
2500 lb: 80% full scale |
| Junction Box |
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card |
| Construction |
Smooth top plate - Stainless Steel |
| Cable |
10 ft (3 m) |
| Warranty |
RRoughDeck BDP weldment three years, load cells two years, all other components one year |
| Approvals |
NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1000 kg) Class III 2,000 d
FM Approved (when ordered with FM Approved Load Cells) |
|
|
