For rugged, portable weighing, Rice Lake’s Deckhand is the perfect choice. Large rubber wheels and diamond-tread top plate simplify industrial weighing jobs and make movement from place to place a one-person job. A steel handle doubles as the indicator base for a variety of Rice Lake weight displays. Optional ramp available. Select the Deckhand stand-alone model, or the all-in-one, factory-calibrated Deckhand Rough-N-Ready system with 482 Plus or IQ plus® 590-DC
Move the DeckHand to any part of a facility and be instantly ready to weigh accurately. The platform is designed to weigh perfectly on all corners. Off-center product loading will not affect weighing accuracy.
DeckHand wheels only touch the floor when the unit is tilted back for movement allowing the weighing platform to remain stable on uneven floors.
Partner this scale with one of Rice Lake’s battery-operated indicators. Installed with the IQ plus® IQ plus® 590-DC for a clear view of the weight no matter where the scale is located.
Mild steel wheeled frame, base and mast
- 500 lb, 1,000 lb, 2,000 lb capacity
- Large rubber wheels simplify movement on uneven floors
- Aluminum load cells (2)
- Package includes: Mild steel DeckHand Portable Scale and IQ plus® 590-DC indicator or 482 Plus indicator with internal battery
- Factory-wired and calibrated
- See IQ plus 590-DC or 482 Plus for indicator specifications
|

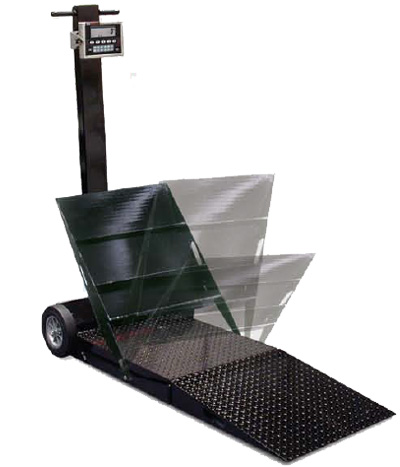

Shown with an optional ramp, allowing
barrels and other large objects to be
easily moved on and off the scale.
|
| Model |
69525 |
69526 |
69527 |
169707 |
169708 |
169709 |
$2,499.00
|
$2,499.00
|
$2,592.50
|
$3,296.00
|
$3,296.00
|
$3,296.00
|
| Capacity x Readability |
500 x 0.2 lb |
1000 x 0.5 lb |
2000 x 1 lb |
500 x 0.2 lb |
1000 x 0.5 lb |
2000 x 1 lb |
| OVERALL SIZE |
31 x 41 inch |
| Indicator |
IQ plus ® 590-DC |
482 Plus |
| Display |
1 in (24.5 mm) 6-digit Liquid Crystal Display (LCD) |
0.8 in (20 mm), 6-digit, 7-segment LCD backlit display, |
Units |
lb, kg |
lb, kg |
Communications |
RS-232 |
2 x RS-232 |
Indicator Rating/Material |
NEMA Type 4X/IP66, stainless steel |
NEMA Type 4X/IP66, heavy-gauge stainless steel |
Power: |
Powered by 6 C cell alkaline batteries for complete portability |
AC 110 V and Rechargeable Batteries |
Base
Legal For Trade |
NTEP CC 98-004, Class III, 2,500 d
Measurement Canada AM-5218, (250 kg and 500 kg) Class III 2,500 d (1,000 kg) Class III 2,000 d |
Indicator
Legal For Trade |
NTEP CC 98-203, Class III/IIIL 10,000d
Measurement Canada AM-5300, Class III 10,000d, Class IIIHD 20,000d |
Measurement Canada AM-5892, Accuracy Class III/IIIHD, 10 000d
NTEP CC 12-123, Accuracy Class III/IIIL, 10 000d
OIML R76/2006-NL1-12.48, T5692, TC8322Accuracy Class III, 10 000d |
Standard Features |
- Full numeric keypad
- Keyboard entry of piece weight, tare weight, calibration and sample size
- Display tare button
- Powered by 6 C cell alkaline batteries for complete portability (batteries not included)
- (3) 300-character print ticket formats
- Power for (4) 350 ohm load cells or (8) 700 ohm load cells
- Supports 4- and 6-wire load cell connections
- EDP port for full duplex, RS-232 communications
- NEMA Type 4X/IP66-rated stainless steel enclosure
- LCD display, 1 in (24.5 mm), 6-digit
- AC adapter for 115 or 230 VAC power
- Configurable standby mode to prolong battery life
- RATTLETRAP® 3-stage digital filtering
- Configurable units multiplier
- Configurable analog-to-digital measurement rate
- Self-resetting thermal fuse
- Configurable with Revolution® software
|
- LCD backlit display, 0.8 in (20 mm), 6-digit, 7-segment
- Time and date, battery backed
- Local/remote operation
- Numeric keypad (482 Plus)
- Keyed entries for tare and setpoint values (482 Plus)
- 2 independent serial ports, RS-232 and 20 mA
- NEMA Type 4X/IP66 stainless steel washdown enclosure
- Password protection for user and configuration changes
- Selectable conversion rate and display update rate
- Hardware or audit trail metrology sealing
- Programmable ticket formats for gross, net, accumulator and setpoints
- 5 continuous stream formats
- Adaptive filter or rolling average filter
- Configurable with Revolution® software
- Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
- 8 setpoints, sequenced batch engine
|
Options (Call for more info) |
- |
- Analog output, 0-10 VDC, 0-20 mA, 4-20 mA, selection for 20% offset
- Relay output, 2 digital inputs, four dry contact relays (supports 2 boards)
- Ethernet TCP/IP and USB interface (requires cable)
- Battery, rechargeable lithium ion Power for 40 hours of battery life on one 350 ohm load Power-saving modes for sleep and wake-up threshold
|
| Indicator Specifications |
- Power: 9 VDC, provided by 6 C-cell alkaline batteries or AC adapter
- Power Consumption:
- 100 mA (100 hours with 4 load cells)
- 25 mA (300 hours with 1 load cell)
- Excitation Voltage: 5 VDC, 4 x 350 Ù or 8 x 700 Ù load cells
- Analog Signal Input Range: -2.5 mV – 22.5 mV
- Analog Signal Sensitivity:
- 0.3 ìV/graduation minimum
- 1.5 ìV/grad recommended
- Resolution:
- Internal resolution: 1 million counts
- Display resolution: 100,000d
- Counting Capacity: 100,000 pieces
- Measurement Rate: 30, 15, 71/2, 33/4 per second
- System Linearity: Within 0.01% of full scale
- Serial Communications: EDP/Printer port: Full duplex RS-232
- Display: 1 in (24.5 mm) 6-digit Liquid Crystal Display (LCD)
- Circuit Protection: RFI, EMI, ESD protection
- Annunciators: Units (lb/kg), piece count mode (PC), gross, net, standstill, center of zero, tare, low battery
- Keyboard: 19-key flat membrane panel, tactile feel
- Operating Temperature:
- Legal: 14o F to 104o F (-10o C to 40o C)
- Industrial: 14o F to 122o F (-10o C to 50o C)
- Weight: 6.5 lb (2.95 kg)
- Rating/Material: NEMA Type 4X/IP66, stainless steel
- Warranty: Two-year limited warranty
- Approvals:
- NTEP CC 98-203, Class III/IIIL 10,000d
- Measurement Canada AM-5300, Class III 10,000d, Class IIIHD 20,000d
- CE marked
- UL & C-UL listed
|
- Power:
- Line voltages: 90-264 VAC
- Frequency: 50 or 60 Hz
- Estimated battery life: 40 hours (350 ohm load)
- Excitation Voltage: 5 VDC, 8 x 350 Ù load cells
- Analog Signal Input Range: +7 mV/V
- Analog Signal Sensitivity:
- 0.1 uV/graduation minimum,
- 0.5 uV/graduation recommended
- Resolution:
- Internal: 523,000 counts
- Disply: 100,000 graduations
- Measurement Rate: Selectable 5, 10, 20, 40 Hz
- System Linearity: Within 0.01% of full scale
- Circuit Protection: Immunity 10 V/m ESD +10 KV air +6 KV contact
- RFI Protection: Capacitor bypass and ESD suppressors
- Serial Output:
- Com 1: RS-232 full duplex
- Com 2: RS-232 full duplex or 20 mA simplex, continuous
- Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud 7 or 8 data bits, even, odd or no parity
- Display: LCD backlit display, 0.8 in (20 mm), 6-digit, 7-segment
- Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
- Keyboard: Flat membrane panel, embossed keys, tactile feel
- (Optional) Analog Output: 16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA
- (Optional) Relay Board:
- 2 opto-isolated, 5 to 24 VDC, active high inputs. 2 inputs (requires relay output option). Primary keys, pseudo functions, batching functions.
- (4) 30 VDC, 2 amp dry-contract relays
- (Optional) Ethernet and USB Board: USB 5-pin header for PC, printer or flash drive. Ethernet TCP/IP, RJ45 jack, server and client ports.
- Operating Temperature: Legal: 14o F to 104o F (-10o C to 40o C)
|
|
