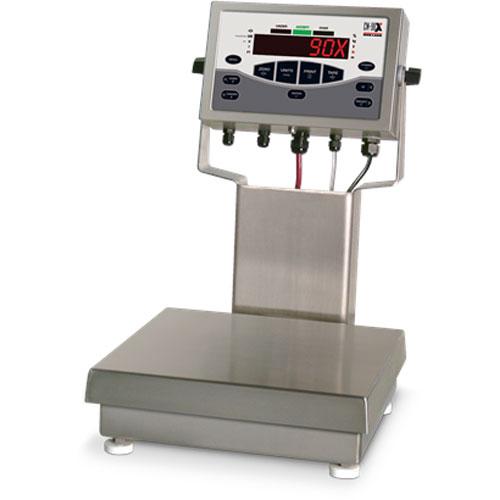

Built to withstand rough handling and extreme washdown requirements, the CW-90X will enhance productivity and reduce cost of ownership. Increase profits with the most dependable and durable equipment in the industry.
Durable
The CW-90X is built for the demanding, heavy-duty environments of today’s food processing industry. Starting with its IP69K rating, you won’t find a more robust bench checkweigher on the market. The hermetically sealed stainless steel load cell and watertight enclosure are guaranteed to withstand the harshest washdown environments. The CW-90X is constructed of 304 stainless steel with a five-point overload system, helping prevent load cell damage and provide the most economical solution to a majority of applications.
Sharp knife points are no match for the smooth, hardened surface and non-tactile key function of the unique piezo keypad .
The CW-90X also features the unique Gore® PreVent® breather vent with GORE-TEX® material. This device is designed to let air flow in and out of the indicator while simultaneously blocking water and dust. In areas of extreme temperature change, this breakthrough technology helps eliminate the possibility of damaging condensation. With so many enhanced features, the customer-driven design of Rice Lake’s CW-90X is built to outlast the competition, hands down.
|
|
|
Practical
The CW-90X has the capacity to store up to 50 individual IDs to recall previously stored information. It can also be used with optional Ethernet, USB and fiber optic ports to capture production floor data
When a standard size scale base or column doesn’t quite fit your needs, Rice Lake is positioned to deliver a custom solution that’s quick and cost effective for nearly any weighing application.
Simple
Users of Rice Lake’s CW-90X will find it to be incredibly simple while offering a powerful assortment of useful features. Program the CW-90X to accept product at set values and then use the checkweigher by relying solely on the bright over/ under lights. A red light displays an under weight condition, yellow is over, and a green light indicates the product is within the specified target. Rice Lake’s CW-90X puts today’s demanding checkweighing needs in an exceptionally user-friendly package.
Facing Hostile EnvironmentsExtra-Strength Keypad Made to withstand sharp knife-point contacts as well as contaminants and liquids, Rice Lake’s CW-90X features an amazingly tough piezo keypad. Its extra-strength material is the most durable in the industry, ensuring your scale will continue to work through any challenge.
IP69K–Your Best Defense Manufacturers with harsh production environments look for the IP69K rating to provide the highest level of protection available. The CW-90X uses a hermetically sealed load cell and stainless steel indicator, which have both earned IP69K rating, guaranteeing protection from repeated high temp/high pressure washdowns. Complete with 304 stainless-steel construction, the CW-90X will help meet all of your HACCP and food industry requirements.
NSF Approval In our commitment to the food processing industry, the CW-90X is fully compliant to NSF standards. NSF International provides certification* services for equipment used in the processing of meat and poultry. These standards have been specified by the USDA to be sure the highest quality equipment is used for food manufacturing purposes
Standard Features
- Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, ENTER, MENU, POWER
- 304 stainless steel, IP69K rated indicator
- PreVent™ breather vent
- Storage for up to 50 IDs
- Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
- High-intensity LED display
- Battery backed time and date
- 2 full-duplex RS-232 serial ports
- Configurable print formats
- Audit trail tracking
- Optional communications: Ethernet, USB or Fiber optic
- Four configurable Digital I/O
- Reflash memory to upgrade firmware
- Auto print capability
Scale:
- IP69K, stainless steel hermetically sealed load cell
- 304 stainless steel
- 5 point overload protection
|
| Model |
105963 |
105965 |
105966 |
105967 |
105968 |
105969 |
$1,713.66
|
$1,690.26
|
$1,713.66
|
$1,783.86
|
$1,783.86
|
$1,783.86
|
| Capacity x Readability |
5 lb x 0.001 lb
2.5 kg x 0.0005 kg
80 oz x 0.02 oz |
10 lb x 0.002 lb
5 kg x 0.001 kg
160 oz x 0.05 oz |
25 lb x 0.005 lb
10 kg x 0.002 kg
400 oz x 0.1 oz |
25 lb x 0.005 lb
10 kg x 0.002 kg
400 oz x 0.1 oz |
50 lb x 0.01 lb
25 kg x 0.005 kg
800 oz x 0.2 oz |
100 lb x 0.02 lb
50 kg x 0.01 kg
1,600 oz x 0.5 oz |

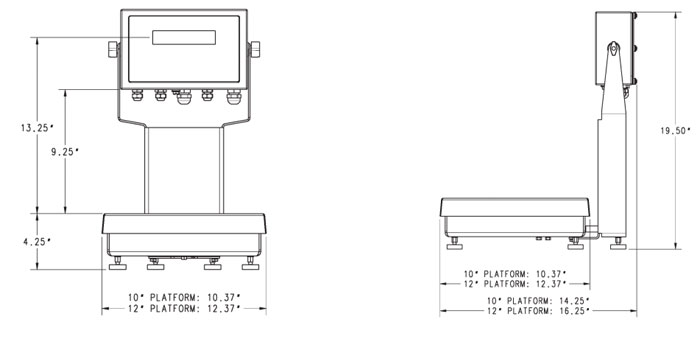

| Size |
10 x 10 x 4.25 in |
10 x 10 x 4.25 in |
10 x 10 x 4.25 in |
12 x 12 x 4.25 in |
12 x 12 x 4.25 in |
12 x 12 x 4.25 in |
| COLUMN HEIGHT |
12 in |
12 in |
12 in |
12 in |
12 in |
12 in |
| Legal For Trade |
Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d
Scale: NTEP CC 95-072, Class III 5,000 d |
Indicator: Measurement Canada AM-5710, Class III 10,000 d
Scale: Measurement Canada AM-5082, Class III 5,000 d |
| Power - AC |
Line voltages: 115/230 VAC
Frequency: 50/60Hz |
| Power - Plug |
NEMA 5-15 |
| Power Consumption |
1.5A at 115 VAC (8 W), 0.75A at 230 VAC (8 W) |
| Excitation Voltage |
+5 VDC 8 x 350O or 16 x 700O load cells |
| Analog Signal Input Range |
-0.5mV/V - 4.5mV/V |
| Analog Signal Sensitivity |
0.3 uV/graduation minimum, 1.5 uV/ graduation recommended |
| Measurement Rate |
960, 480, 240, 120, 60, 30, 15, 7.5 per second |
| System Linearity |
+0.01% full scale |
| Digital I/O |
4 channels on CPU board |
| Circuit Protection |
RFI, EMI, ESD protection |
| Display |
Large 0.8 in 14-segment, 6-digit high-intensity red LED display |
| Status Annunciators |
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion |
| Operating Temperature |
Legal: 14º F to 104º F (-10ºC to 40ºC) |
| Rating/Material |
IP69K, stainless steel |
| Display Resolution |
100,000 graduations maximum |
| Load Cell |
IP69K, stainless steel hermetically sealed |
| Warranty |
Three-year limited warranty |
| Approvals |
Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC GB-1385
TAC UK2900
UL and CUL listed
CE marked
Scale: NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF
|
| Analog Signal Input Range |
0.5mV/V - 4.5mV/V |
|
Other Models |
| Models 230 V |
118899 |
118900 |
118901 |
118902 |
118903 |
118904 |
| Capacity x Readability |
2.5 kg x 0.0005 kg
5 lb x 0.001 l
80 oz x 0.02 oz |
5 kg x 0.001 kg
10 lb x 0.002 lb
160 oz x 0.05 oz |
10 kg x 0.002 kg
25 lb x 0.005 lb
400 oz x 0.1 oz |
10 kg x 0.002 kg
25 lb x 0.005 lb
400 oz x 0.1 oz |
25 kg x 0.005 kg
50 lb x 0.01 lb
800 oz x 0.2 o |
50 kg x 0.01 kg
100 lb x 0.02 lb
1,600 oz x 0.5 oz |
|
Please Call (800)832-0055 or Email Us for help Ordering this Scale |
| Models 230V CE marked/OIML approved (CEE 7/7 plug)) |
106129 |
106130 |
106131 |
106132 |
106133 |
106134 |
| Capacity x Readability |
3 kg x 0.001 kg |
6 kg x 0.002 kg |
15 kg x 0.005 kg |
15 kg x 0.005 kg |
30 kg x 0.01 kg |
60 kg x 0.02 kg |
|
Please Call (800)832-0055 or Email Us for help Ordering this Scale |
|
