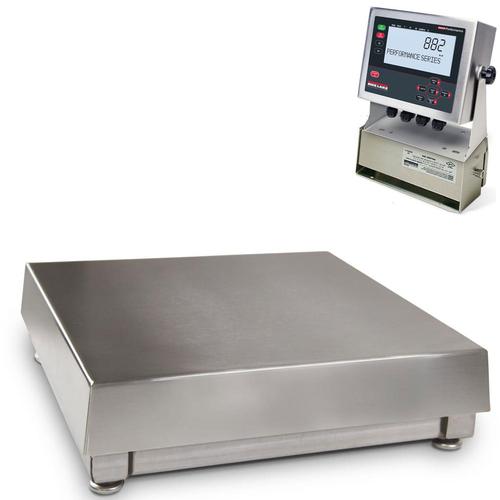

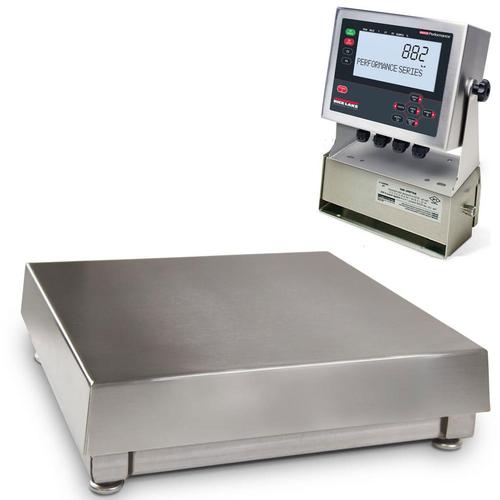

Rice Lake BenchMark 320IS Stainless Steel FM Approved Legal for Trade Scales
The BenchMark Series offers remarkable precision and a sanitary surface for bench-top weighing. Standard platform sizes of 12 x 18, 18 x 18, 18 x 24 and 24 x 24 inches offer a variety of capacities
Rice Lake BenchMark 320IS Stainless Steel FM Approved Legal for Trade Scales
Indicator And Base Come Fully Calibrated
Legal For Trade
Selected Models
Canada Measurement
Selected Models

12 x 18 Specifications Chart

18 x 18 Specifications Chart

18 x 24 Specifications Chart

24 x 24 Specifications Chart

BenchMark Series

Extremely Accurate Medium to High Capacity Weighing BenchMark heavy-duty construction provides ultimate durability, sensitivity and long life for a variety of demanding weighing environments.
    Five standard platform sizes offer a wide variety of capacities:
  • 12 x 12 inches
  • 12 x 18 inches
  • 18 x 18 inches
  • 18 x 24 inches
  • 24 x 24 inches
  • 304 stainless steel frame and cover
  • Base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces
Rice Lake BenchMark 320IS Stainless Steel FM Approved Legal for Trade Scales

Base and Indicator

Price From: $2364.30



Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X
Rice Lake 78026 Fiber optic, duplex cable 100 ft for 320IS, CW-90 and CW90X, add $121.50
Rice Lake 78027 Fiber optic, duplex cable 200 ft for 320IS, CW-90 and CW90X
Rice Lake 78027 Fiber optic, duplex cable 200 ft for 320IS, CW-90 and CW90X, add $243.00
Rice Lake Module, I/O Fiber Interface for 320IS Plus. 4 Digital Inputs, 4 Relay Outputs, 2 Analog Outputs and 2 Comm Ports
Rice Lake Module, I/O Fiber Interface for 320IS Plus. 4 Digital Inputs, 4 Relay Outputs, 2 Analog Outputs and 2 Comm Ports, add $1,165.50
Rice Lake Timer Relay Kit Includes din rail, Timer Relay for Latching and Mount
Rice Lake Timer Relay Kit Includes din rail, Timer Relay for Latching and Mount, add $333.00
Rice Lake Second IS-6 V Battery with Cable Adapter
Second IS-6 V Battery Option with Cable Adapter, add $490.50

Base Only Options

320IS Intrinsically-Safe Digital Weight Indicator

Designed with the level of safety your location requires, the 320IS digital weight indicator meets hazardous environment requirements without hesitation. With Factory Mutual (FM) entity approval, it is the ideal solution for dangerous and highly explosive environments. Even in dimly-lit areas, the 320IS maintains brilliant visibility for user-friendly operation.

The intrinsically-safe, auto-ranging power supply is designed to meet 320IS entity parameters and safely mount in hazardous areas. With this option, wiring is simplified to a single AC conduit line and seal from the safe area—barrier strips are no longer necessary. When required, an entity approved battery power supply is also available.

For applications that require increased functionality, choose the 320IS Plus. It combines the same great features of the 320IS, but includes a full numeric keypad and keyboard tare. The 320IS Plus is also equipped with standard count mode.

Expand the flexibility of the 320IS and the 320IS Plus with the optional safe area I/O Module, featuring two serial ports, two analog outputs, four digital inputs and four elay contact outputs, allowing communication with printers, computers and other peripherals. Both models are equipped with a duplex fiber optic port for electricallyisolated communication with the I/O Module.

For IS entity approval, Rice Lake offers hundreds of FM-approved load cells that interface with the 320IS and 320IS Plus indicators in accordance with the official FM control drawings.

    Standard Features
  • Bright LED display
  • Power ON/OFF, battery save mode
  • Stainless steel NEMA 4X/IP66 enclosure
  • Front-panel digital calibration
  • Excitation for 4 x 350Ù or 8 x 700Ù load cells
  • Gross/Tare/Net computation
  • Tilt stand
  • Duplex fiber optic interface
  • Factory Mutual (FM) entity approved
  • Class I Division I Groups A, B, C, D and Class II Division 1 Groups E, F, G and Class III; T-Rating: T4
  • NTEP Certified
    Options/Accessories
  • 115/230 VAC auto ranging power supply
  • 6V battery and charger
  • I/O Module, 2 serial ports configurable as RS-485, RS-422, RS-232 or 20mA, 2 analog outputs, 4 digital inputs and 4 relay contact outputs (AC powered)
  • IS cable: hazardous environment load cell cable
  • Fiber optic cable
  • Timer relay for latching (320IS)
Rice Lake BenchMark - 320IS Explosion Proof Scales 12 x 18 in - 18 x 18 in
Model 320IS-186222 320IS-186223 320IS-18591 320IS-18593 320IS-18595 320IS-18597 320IS-18599 320IS-18601 320IS-18603 320IS-18605
Rice Lake 320IS-186222 BenchMark 12 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 50 x 0.01 lb
$2,364.30
buy now
Rice Lake 320IS-186223 BenchMark 12 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 100 x 0.02 lb
$2,364.30
buy now
Rice Lake 320IS-18591 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 50 x 0.01 lb
$2,674.80
buy now
Rice Lake 320IS-18593 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 100 x 0.02 lb
$2,674.80
buy now
Rice Lake 320IS-18595 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 150 x 0.03 lb
$2,674.80
buy now
Rice Lake 320IS-18597 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 200 x 0.04 lb
$2,674.80
buy now
Rice Lake 320IS-18599 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 250 x 0.05 lb
$2,674.80
buy now
Rice Lake 320IS-18601 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 300 x 0.06 lb
$2,674.80
buy now
Rice Lake 320IS-18603 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 500 x 0.1 lb
$2,809.80
buy now
Rice Lake 320IS-18605 BenchMark 18 x 18 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 1000 x 0.2 lb
$2,809.80
buy now
Platform Capacity 50 x 0.01 lb 100 x 0.02 lb 50 x 0.01 lb 100 x 0.02 lb 150 x 0.03 lb 200 x 0.04 lb 250 x 0.05 lb 300 x 0.06 lb 500 x 0.1 lb 1000 x 0.2 lb
Pan Size 12 x 18 in 18 x 18 in
Legal For Trade Base: NTEP CC 95-072, Class III 5,000 d
Base: Measurement Canada AM-5082, Class III 5,000 d
Indicator: NTEP CC 03-078 Class III/IIIL 10,000d
Indicator: Measurement Canada AM-5560
Indicator 320IS with Battery pack, Charger & Tilt Stand Part No 91233
FM Approved
Load Cell IP67 Aluminum and environmentally sealed
Output Impedance 350
Maximum Overload 150-200% depending on capacity
Overload Protection Shock-absorbing spider
Cable Length 10 ft (3 m)
Compensated Temperature Range 14° F to 104° F (-10° C to 40° C)
Dimensions 12 x 18 x 4 in 18 x 18 x 5.25 in




Rice Lake BenchMark - 320IS Explosion Proof Scales - 18 x 24 in
Model 320IS-18607 320IS-18609 320IS-18611 320IS-18613 320IS-18615 320IS-18617 320IS-18619 320IS-18621
Rice Lake 320IS-18607 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 50 x 0.01 lb
$2,886.30
buy now
Rice Lake 320IS-18609 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 100 x 0.02 lb
$2,886.30
buy now
Rice Lake 320IS-18611 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 150 x 0.03 lb
$2,886.30
buy now
Rice Lake 320IS-18613 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 200 x 0.04 lb
$2,886.30
buy now
Rice Lake 320IS-18615 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 250 x 0.05 lb
$2,886.30
buy now
Rice Lake 320IS-18617 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 300 x 0.06 lb
$2,886.30
buy now
Rice Lake 320IS-18619 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 500 x 0.1 lb
$2,886.30
buy now
Rice Lake 320IS-18621 BenchMark 18 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 1000 x 0.2 lb
$3,142.80
buy now
Platform Capacity 50 x 0.01 lb 100 x 0.02 lb 150 x 0.03 lb 200 x 0.04 lb 250 x 0.05 lb 300 x 0.06 lb 500 x 0.1 lb 1000 x 0.2 lb
Pan Size 18 x 24 in
Legal For Trade Base: NTEP CC 95-072, Class III 5,000 d
Base: Measurement Canada AM-5082, Class III 5,000 d
Indicator: NTEP CC 03-078 Class III/IIIL 10,000d
Indicator: Measurement Canada AM-5560
Indicator 320IS with Battery pack, Charger & Tilt Stand Part No 91233
FM Approved
Load Cell IP67 Aluminum and environmentally sealed
Output Impedance 350
Maximum Overload 150-200% depending on capacity
Overload Protection Shock-absorbing spider
Cable Length 10 ft (3 m)
Compensated Temperature Range 14° F to 104° F (-10° C to 40° C)
Dimensions 18 x 24 x 5.25 in




Rice Lake BenchMark - 320IS Explosion Proof Scales - 24 x 24 in
Model 320IS-18623 320IS-18625 320IS-18627 320IS-18629 320IS-18631 320IS-18633 320IS-18635
Rice Lake 320IS-18623 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 100 x 0.02 lb
$3,142.80
buy now
Rice Lake 320IS-18625 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 150 x 0.03 lb
$3,196.80
buy now
Rice Lake 320IS-18627 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 200 x 0.04 lb
$3,196.80
buy now
Rice Lake 320IS-18629 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 250 x 0.05 lb
$3,196.80
buy now
Rice Lake 320IS-18631 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 300 x 0.06 lb
$3,196.80
buy now
Rice Lake 320IS-18633 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 500 x 0.1 lb
$3,268.80
buy now
Rice Lake 320IS-18635 BenchMark 24 x 24 in Stainless Steel FM Approved Legal for Trade Scale with Battery Pack 1000 x 0.2 lb
$3,268.80
buy now
Platform Capacity 100 x 0.02 lb 150 x 0.03 lb 200 x 0.04 lb 250 x 0.05 lb 300 x 0.06 lb 500 x 0.1 lb 1000 x 0.2 lb
Pan Size 24 x 24 in
Legal For Trade Base: NTEP CC 95-072, Class III 5,000 d
Base: Measurement Canada AM-5082, Class III 5,000 d
Indicator: NTEP CC 03-078 Class III/IIIL 10,000d
Indicator: Measurement Canada AM-5560
Indicator 320IS with Battery pack, Charger & Tilt Stand Part No 91233
FM Approved
Load Cell IP67 Aluminum and environmentally sealed
Output Impedance 350
Maximum Overload 150-200% depending on capacity
Overload Protection Shock-absorbing spider
Cable Length 10 ft (3 m)
Compensated Temperature Range 14° F to 104° F (-10° C to 40° C)
Dimensions 24 x 24 x 5.25 in
