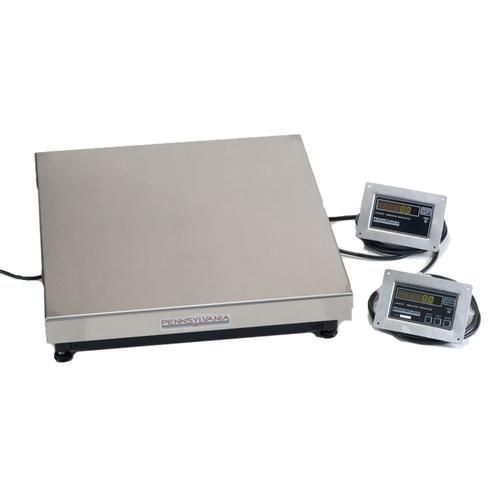

Exceptional Reliability, Rugged Construction Our reputation for heavy duty industrial scales is built into every M64 Airline Baggage weighing system – fast becoming the standard for baggage check-in stations all over the world.
Rugged designs conform to a wide range of architectural installations. Heavy duty stainless steel top plate; durable powder-coated finish; exceptional reliability and Sustained Accuracy (5000 divisions standard) plus fast shipment of standard and custom sizes. Extra rugged construction for long life and hard use. Up to four displays per scale with designs for curbside check-in or shared check-in stations. Standard RS-232 for integrated weighing systems.
Portable or permanently mounted versions or electronics-only conversion kits for existing platforms in remodeling situations. Wide range of styles, platform sizes, and designs for any situation. Made in USA.
Join the many airports worldwide that have increased accuracy and reduced maintenance costs with the 64 Series rugged scales designed for baggage check-in operations.
Features
- Superb performance and Sustained Accuracy
- Up to (4) four remote displays with/without buttons
- SS flush panel mount displays or custom surface mount
- Standard green or high intensity red LED displays
- Weighing 5000 divisions in two units of measure, typically lbs/kgs
- Capacity either 500 x 0.1 lbs or 1000 x 0.2 lbs (or specify)
- Suitable for commercial applications
- Ship fully calibrated and ready for installation
- Fully supported designs back to 1991; modular interchangeable parts
- Platform sizes 18" x 18", 18" x 24", 24" x 24" at 5" profile; larger custom sizes at 3" profile
- Easy installation and attachment for bagwell or kiosk
- Simple calibration and maintenance
- True heavy duty construction – Two-Year Limited Warranty
Technical Specifications
- Universal PLUS+ series Main Board is interchangeable and retrofits existing scales
- Power 110/115 VAC 50/60 Hz or specify 220/240 VAC or DC power 12/24 VDC
- HD power cord to main controller and Y-cable to remote displays standard 10' (or specify longer length)
- Optional solid state relays or 12 VDC relay outputs for operator alerts
- Standard RS-232 output is versatile and programmable
- Sizes > 24" x 24" use (4) HD industrial SESB load cells for extra heavy duty performance, 3" nominal height with height adjustment and anchor plates
- Sizes < 24" x 24" use proven single point HD load cell and standard anchor brackets
- Buttons ZERO, UNITS, PRINT or no buttons as per application
Electronics Conversion Kit Package for Existing Platforms
- Wide range of capacities and resolutions; suitable for Commercial Applications up to 10,000 divisions
- Aluminum enclosure with (1), (2), (3), or (4) remote displays with 10 foot cables
- Remote displays with/without buttons ZERO, UNITS, PRINT
- AC power via HD power cord to CPU unit only
- Fast, easy calibration to existing platforms for remodeling situations
- Opening requirement for flush mount display: 5-3/4" x 3-1/2" – contact us for drawings
Data Communication
- Standard fully programmable RS-232 communication
- DB9 connector or screw terminals for Send/Receive/Ground
Warranty
The parts and components of these Pennsylvania Scale Company products are warranted for two years from the date of purchase or installation against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.
Contact Us for installation or dimensional drawings or custom features.
| Model |
M64-1824-250-1 |
M64-1824-500-1 |
M64-1824-1000-1 |
M64-2424-250-1 |
M64-2424-500-1 |
M64-2424-1000-1 |
| Price |
$1,665.00
|
$1,665.00
|
$1,665.00
|
$1,755.00
|
$1,755.00
|
$1,755.00
|
| Capacity x Resolution |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
| Legal For Trade |
NTEP |
| Size |
18 x 24 inch |
24 x 24 inch |
| Height |
5 inch |
| Ttpe |
Stainless Steel |
| Indicator |
(1) SS Bezel mount Remote Display
Standard displays include buttons ZERO/UNITS/PRINT for the Agent and no buttons customer side. Contact Us for installation or dimensional drawings or custom features.
Also available: ZERO/ADVANCE/PRINT version for lb OR kg – only installations (no 2nd unit of measure)
CANADA UNITS: Use model C64 for special marking to meet Canada COC requirement
|
| COMMUNICATION |
RS-232, DB9 connector |
| Includes |
- 18" x 24" HD Platform w/ Stainless Steel Top Plate
- (1) SS Bezel mount Remote Displays
- Superior performance, long life, easy installation
|
- 24" x 24" HD Platform w/ Stainless Steel Top Plate
- (1) SS Bezel mount Remote Displays
- Superior performance, long life, easy installation
|
| Warranty |
2 Years |
|
Made in USA |
| Model |
M64-1824-250-2 |
M64-1824-500-2 |
M64-1824-1000-2 |
M64-2424-250-2 |
M64-2424-500-2 |
M64-2424-1000-2 |
| Price |
$1,795.50
|
$1,795.50
|
$1,795.50
|
$1,885.50
|
$1,885.50
|
$1,885.50
|
| Capacity x Resolution |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
250 x 0.05 lb |
500 x 0.1 lb |
1000 x 0.2 lb |
| Legal For Trade |
NTEP |
| Size |
18 x 24 inch |
24 x 24 inch |
| Height |
5 inch |
| Ttpe |
Stainless Steel |
| Indicator |
(2) SS Bezel mount Remote Displays w/ Y cable
Standard displays include buttons ZERO/UNITS/PRINT for the Agent and no buttons customer side. Contact Us for installation or dimensional drawings or custom features.
Also available: ZERO/ADVANCE/PRINT version for lb OR kg – only installations (no 2nd unit of measure)
CANADA UNITS: Use model C64 for special marking to meet Canada COC requirement
|
| COMMUNICATION |
RS-232, DB9 connector |
| Includes |
- 18" x 24" HD Platform w/ Stainless Steel Top Plate
- (2) SS Bezel mount Remote Displays w/ Y cable
- Superior performance, long life, easy installation
|
- 24" x 24" HD Platform w/ Stainless Steel Top Plate
- (2) SS Bezel mount Remote Displays w/ Y cable
- Superior performance, long life, easy installation
|
| Warranty |
2 Years |
|
Made in USA |
| Model |
M66-3030-1K-1 |
M66-3030-1K-2 |
| Price |
$2,155.50
|
$2,245.50
|
| Capacity x Resolution |
1000 x 0.2 lb |
1000 x 0.2 lb |
| Legal For Trade |
NTEP |
| Size |
30 x 30 inch |
| Height |
3 inch |
| Ttpe |
Stainless Steel |
| Description |
(Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and ONE (1) Stainless Steel face plate flush mount display with function buttons |
Complete Airline Baggage Scale System with heavy duty frame and 304 Stainless Steel Top Plate. Includes electronics and TWO (2) Stainless Steel face plate flush mount displays, one with function buttons and one without |
| COMMUNICATION |
RS-232, DB9 connector |
| Warranty |
2 Years |
|
Made in USA |
|
